Locke MP User Manual
Page 15
3
2
19
4
5
17
6
1
7
8
3
2
1
11
10
11
18
13
12
14
15
16

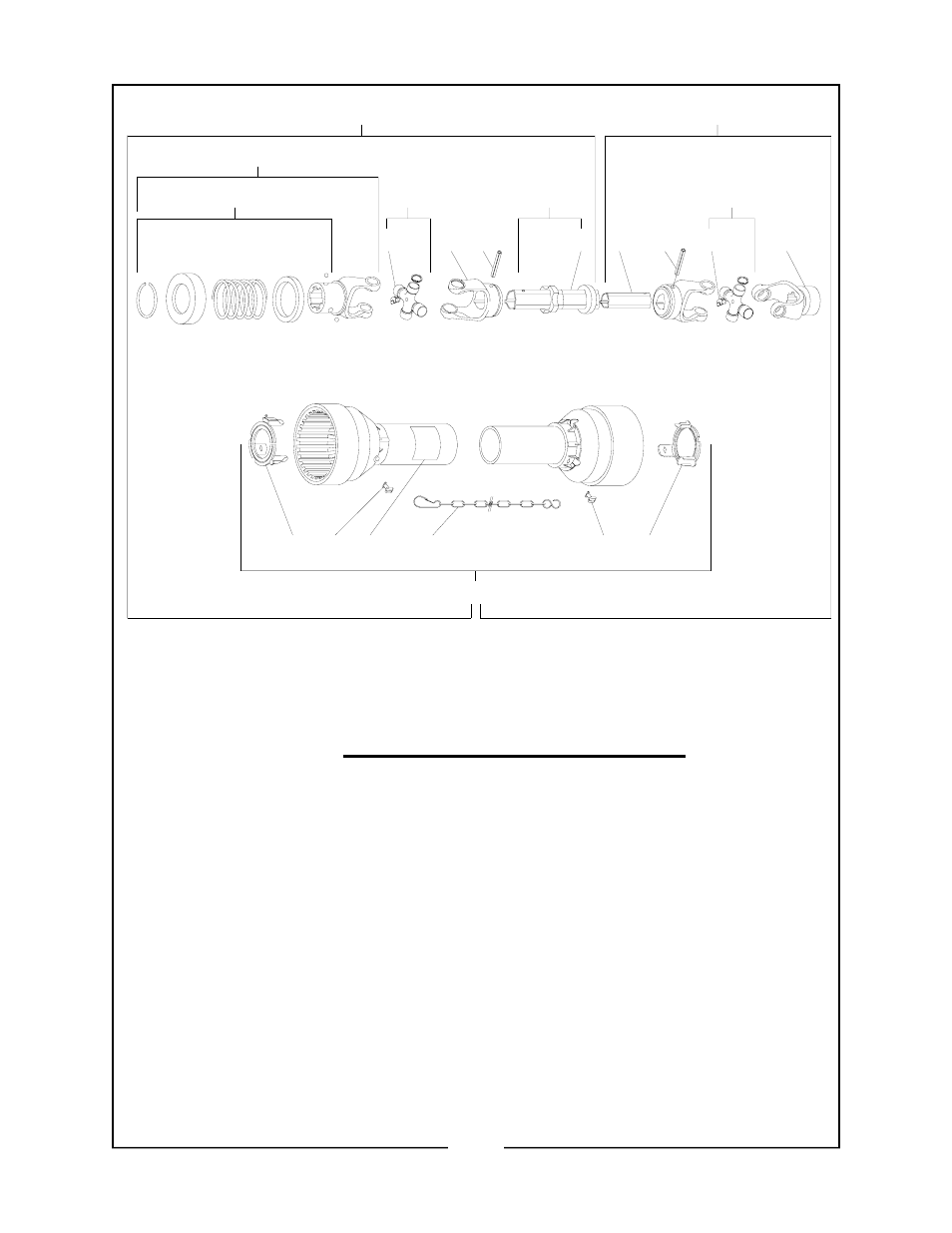

REF. PART
QTY DESCRIPTION
NO. NO.
1 76711
2 Complete
Collar
Yoke
2 64694
2 Cross
Journal
Set
3 63956
2 Grease
Nipple
4 78571
1 Outer
Yoke
5 78577
1
Roll Pin for Outer Tube
6 76712
2 Complete
Outer
Tube
7 76713
1 Inner
Tube
8 78578
1 Roll
Pin
for
Outertube
9 78570
1 Inner
Yoke
10 76192
1 Guard
Retaining
Collar,
Outer
11 87992
6 Bolt
12 76191
1 Guard
Retaining
Collar,
Inner
13 64814
2 Safety
Chain
14 76714
1 Complete
Shield
15 76715
1
Half Female Shaft w/ Shield
16 76716
1
Half Male Shaft w/ Shield
17 78786
1 Danger
Decal,
Outer
Tube
18 78608
1
Danger Decal, Outer Shield
19 50017480
1
Ball Collar Kit 1-3/8”
76644 Driveshaft, Wing
Manufactured by Comer
