Locke MP - Manual (Page 17)

1 7 6 5
12
1
7 6
5
1
12
7
6
15
18
19
18
16
17
8
9
10
11
14
11
13
9
10
8
5
6
7
5
12
1
7
6
12
1
6
7
1
12
5
2
6
7
7
1
6
5
12
5 6 7 1 12
7
6
3
7
6
5
4
5
6
7
2
12
REF. PART QTY DESCRIPTION
NO. NO.
1 50021071 8 Arm Weldment (Round Hole,
Curved)
2 98293 2 Arm Weldment (Hex Hole,
Straight)
3 50023311 1 Arm Weldment, RH (Hex Hole,
Curved)
4 50023312 1 Arm Weldment, LH (Hex Hole,
Curved)
5 44107 24 HHCS 5/8” x 3-1/2”
6 19486 24 Lockwasher 5/8”
7 15563 24 Hex Nut 5/8”
8 50017304 12 Lynch Pin
9 99292 24 Spacer 1/4”, Round/ Hex Hole
10 99291 24 Spacer 1/2”, Round/ Hex Hole
11 99290 24 Spacer 1”, Round/ Hex Hole
REF. PART QTY DESCRIPTION
NO. NO.
12 50021066 16 Bushing Bronze
8 Fork & Tire Assy. (Round Shaft)
4 Fork & Tire Assy. (Hex Shaft)
13 50020433 1 Caster Weldment (Round Shaft)
50024400 1 Extended Caster Weldment
(Round Shaft)
14 50020434 1 Caster Weldment (Hex Shaft)
50024401 1 Extended Caster Weldment
(Hex Shaft)
15 20776 1 HHCS 1/2” x 6”
16 15554 1 Locknut 1/2”
17 97948 1 Tire Assembly (410/350 x 4
Pnuematic Tire)
18 98342 2 Bearing
19 50021519 1 Spacer, Wheel

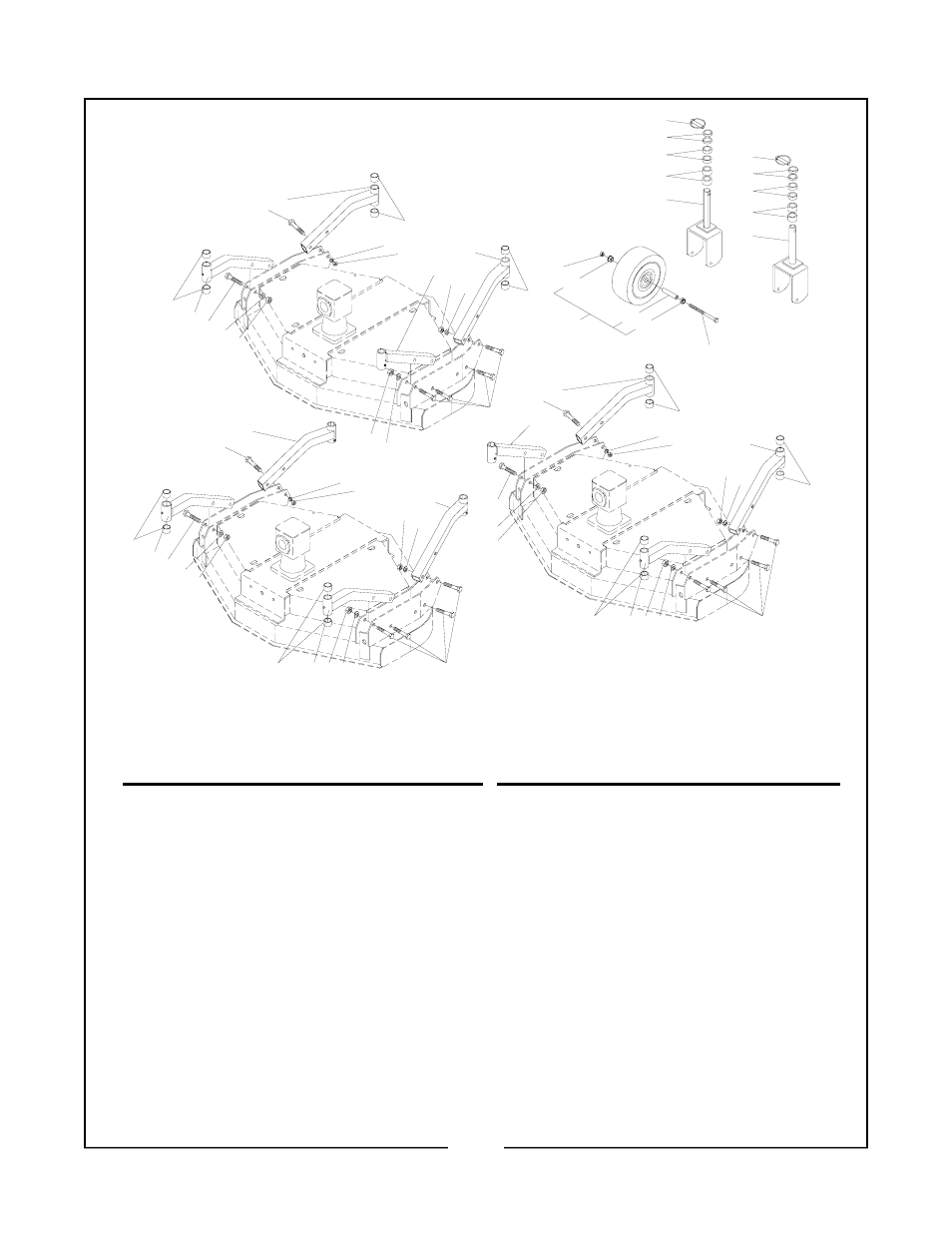

Caster Arm & Wheel Assemblies
MP and FP
5-1
