Locke MP - Manual (Page 6)

11
10
9
18
10
9
13
8
5
13
12
1
3
6
7
4
3
14
2
15
9
10
16
19
1
17
6
20
7
REF. PART QTY DESCRIPTION
NO. NO.
1 94375
2 Spring
2 50018541 1 Wing Lock Weldment, LH
50018540 1 Wing Lock Weldment, RH
3 15675 2 Cotter Pin 5/32 x 1-1/2”
4 94331 1 Pin
5 50017303 1 Chain w/ Sleeve
6 84672 3 Wing Lock Pin
7 1273 3 Hair Pin
8 20881 1 HHCS 3/8” x 1-1/2”
9 8151200 7 Hex Nut 3/8”
10 15812 5 Lockwasher 3/8”
11 50018562 1 Handle Weldment
12 50024037 1 Hook
13 94862 2 Spring Snap
14 5121222 2 Carriage Bolt 3/8” x 2-1/4” Gr.5
15 50018623 2 Pin
16 44174 2 HHCS 3/8” x 1-3/4”
17 10151200 2 Jam Nut 3/8”
18 15915 1 Flatwasher 3/8”
19 1161212 2 HHCS 3/8” x 1-1/4”
20 94374 2 Pin

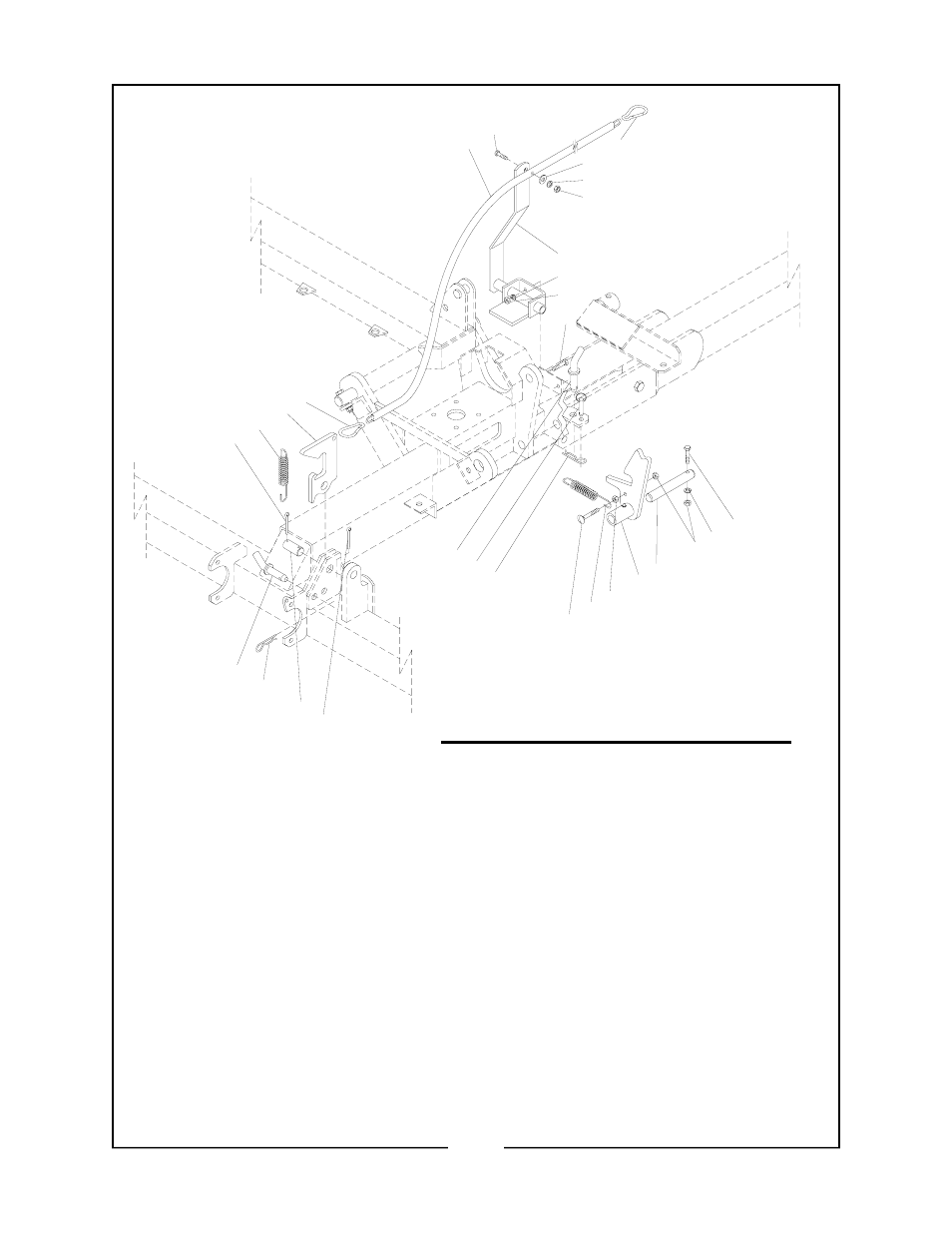

Transport Latching Parts
1-4
