Gearbox assembly deck drive – Locke MP User Manual
Page 11
10
9
13
11
1
12
14
27
15
1
7
8
6
5
1
2
3
4
24
25
26
16
17
12
18
19
20
21
22
23
REF. PART
QTY DESCRIPTION
NO. NO.
1 70329
A/R
Shim
.3mm
70330
A/R
Shim
.4mm
70331
A/R
Shim
.5mm
70332
A/R
Shim
1.3mm
2 70107
1 Bearing
3 70133
1 Retaining
Ring
4 70279
1 Cap
5 70226
1
Key M10 x 8 x 30
6 70281
1 Shaft
7 70110
2 Outside
Retaining
Ring
8 70094
1 Gear
26
Teeth
9 70326
4 HHCS
M8
x
16
10 70092
1 Top
Plate
REF. PART
QTY DESCRIPTION
NO. NO.
11 70282
1 Pinion
12
Teeth
12 70082
2 Bearing
13 70393
1 Vent
Plug
14 N/A
1 Serial
Number
Plate
15 70129
1 Bearing
16 70283
1 Housing
17 70284
1 Spacer
Ring
18 70081
1 Gasket
19 70285
1 Bushing
20 70080
1 Seal
21 70079
1 Shoulder
Ring
22 70286
1 Spring
Washer
23 70287
1 Hex
Nut
24 70288
1
Key 6 x 6 x 30 mm
25 70290
1 Seal
26 70291
1 Retaining
Ring
*27
70152
1 Gasket
* Silicone Sealer may be used in place of gasket.

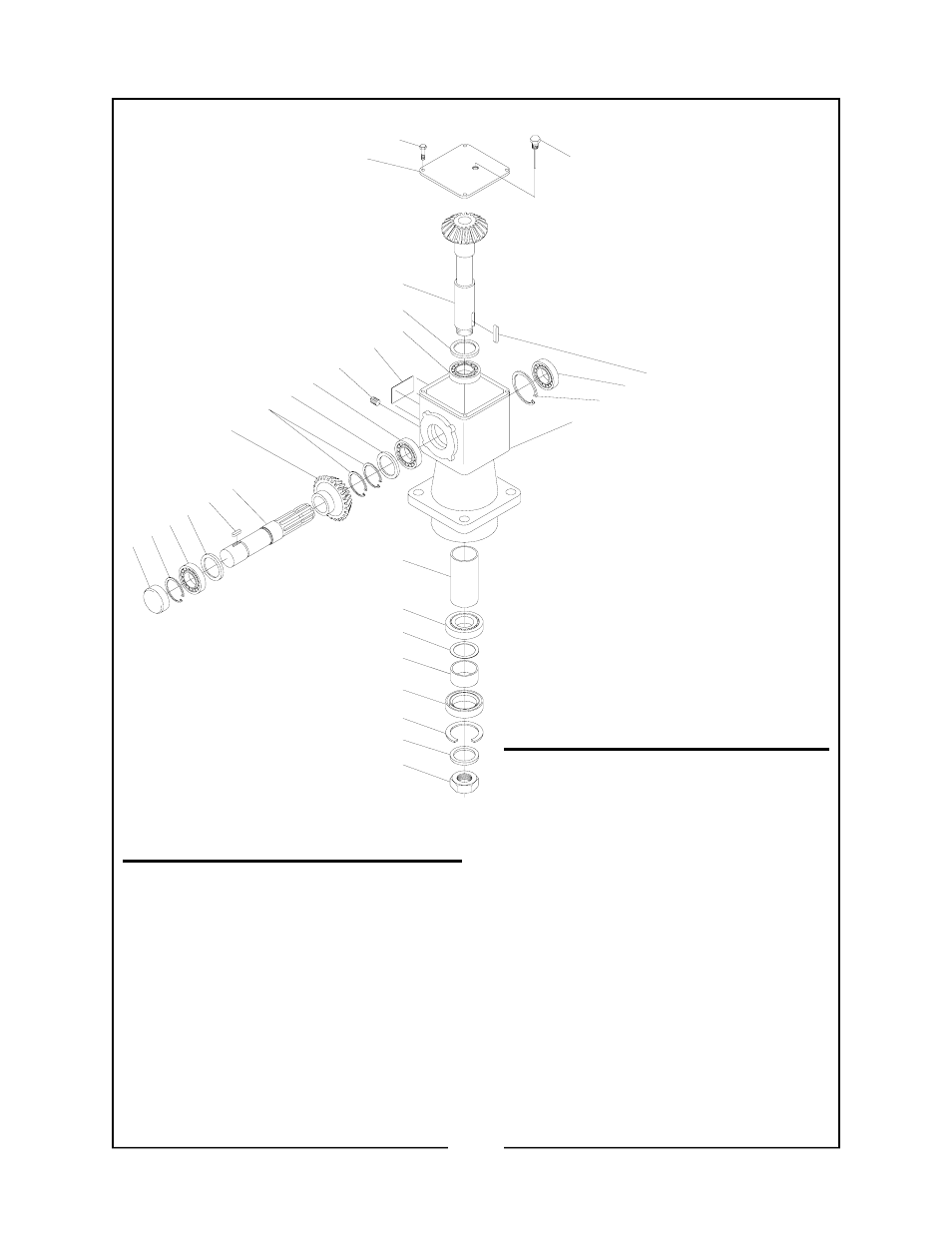

Gearbox Assembly
Deck Drive
MP and FP
3-1
