7. For Models 102 and 1I1: Align the two pins and the key slots in
the V-connector with the two holes and the key in the cable
connector on the bezel. Plug in the connector. Turn the
connector clockwise until it locks into place.
|
8. For Model 4I3: Insert the cable connector into the printer
|
connector on the bezel. Make sure the cable connector is
|
securely seated into place. Push and fasten the top and bottom
|
clips onto the cable connector.

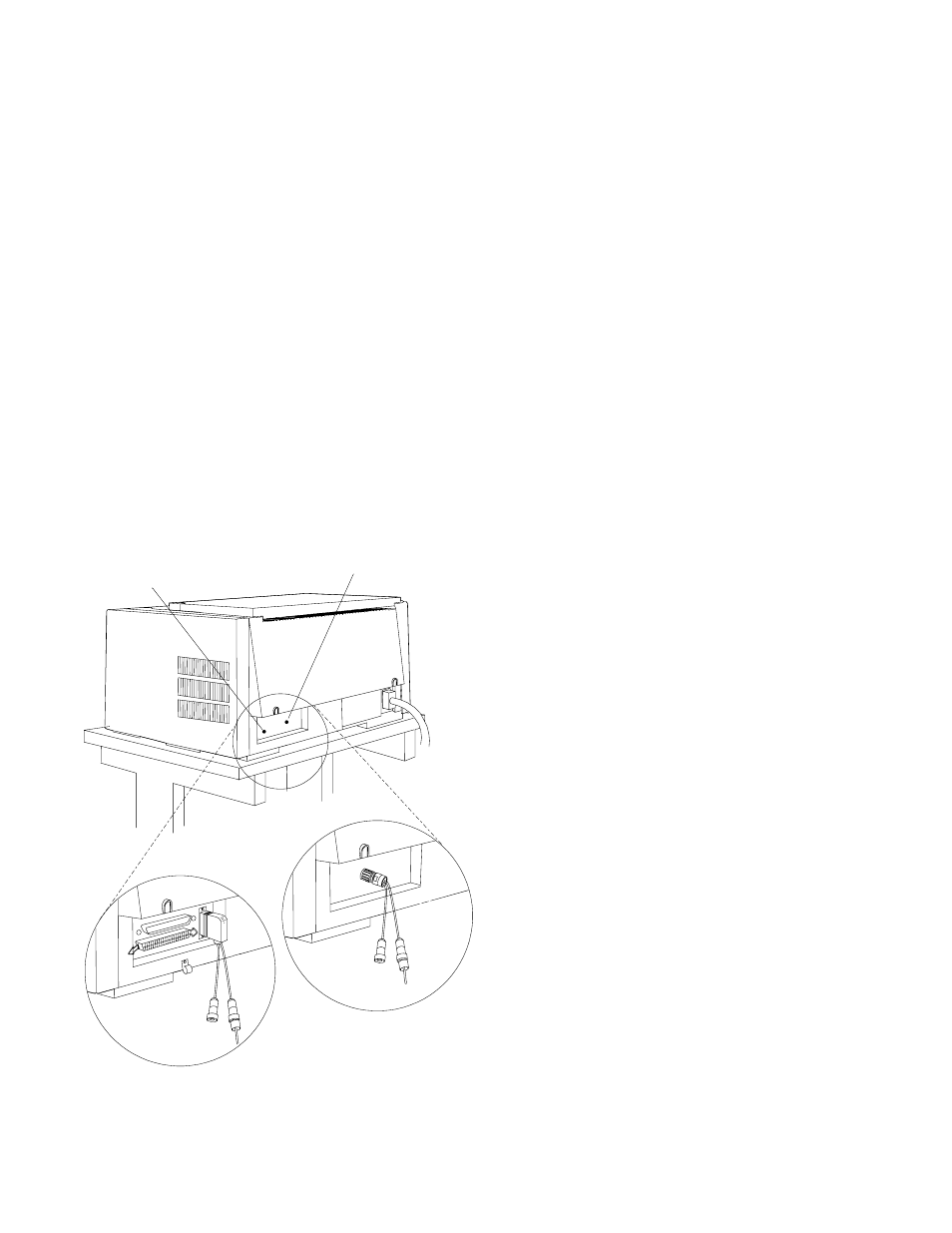

C a b le C o n n e c to r
B e z e l
M o d e ls 4 I3
M od els 1 02 a nd 1 I1
2-8
