TROUBLESHOOTING & REPAIR
F-49
F-49
MULTI-WELD 350
MOTOR
LEADS
#303A
#330
FAN
MOTOR
SCREWS (2)

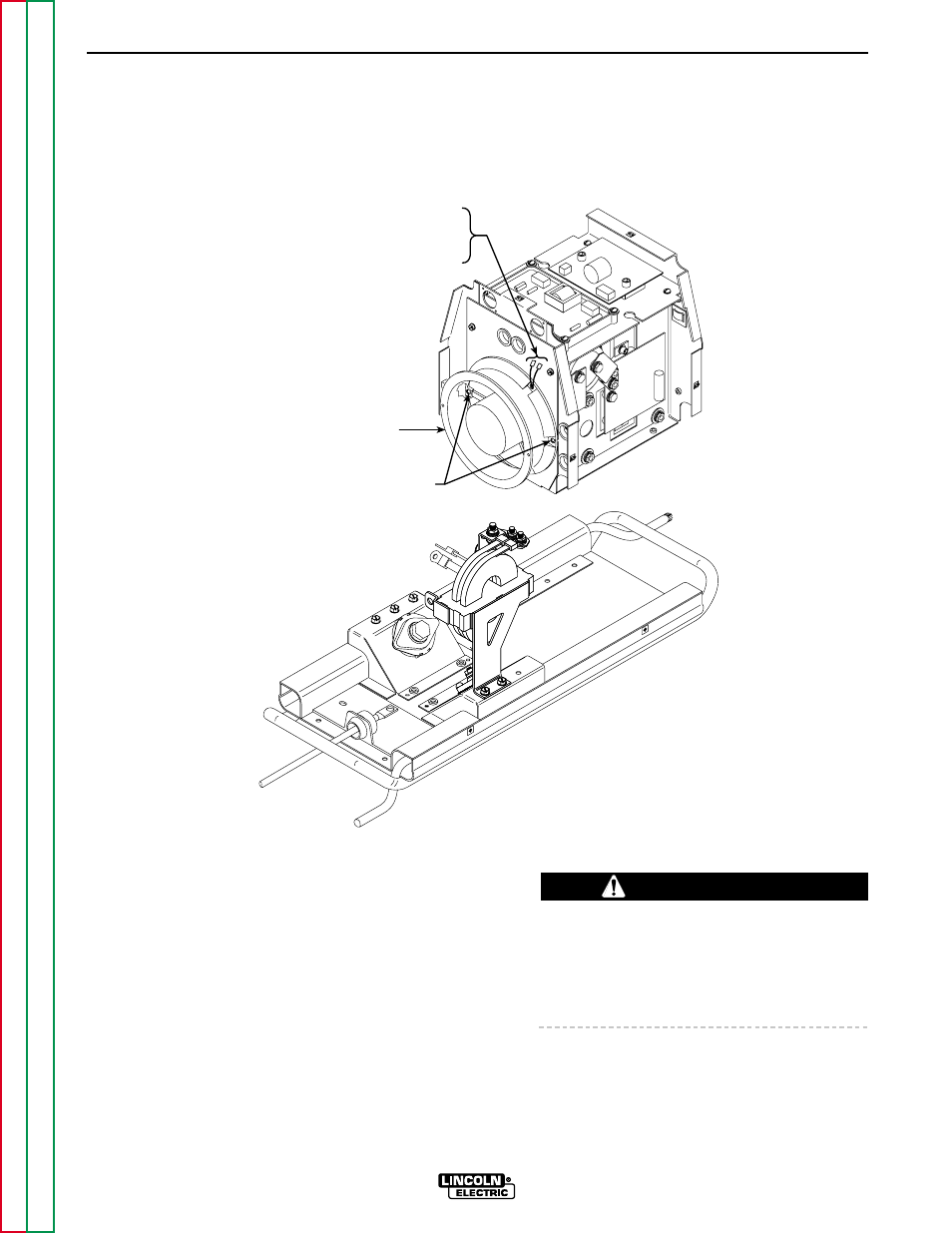

FIGURE F.12 – FAN MOTOR ASSEMBLY DETAILS
FAN MOTOR ASSEMBLY REMOVAL AND REPLACEMENT(CONTINUED)
REMOVAL PROCEDURE
Refer to Figure F.12.
1.
Set the CC/CV power switch to OFF.
2.
Remove input power to the machine.
ELECTRIC SHOCK can kill.
Disconnect input power before removing the
case cover and performing tests or making
repairs to the machine.
WARNING
