Figure a.6, Insert cable into the copper tube. see figure a.6, Installation – Lincoln Electric IDEALARC CV-300 User Manual
Page 15
A-8
INSTALLATION
IDEALARC CV-300
A-8
6.
Tighten the set screw(s) to collapse the tube. The
screw(s) must apply firm pressure against welding
cable. The top of the set screw(s) will be nearly
flush or below the surface of the brass plug after
tightening.
7.
Slide rubber boot over brass plug. The rubber boot
must be positioned to completely cover all electri-
cal surfaces after the plug is locked into the recep-
tacle.

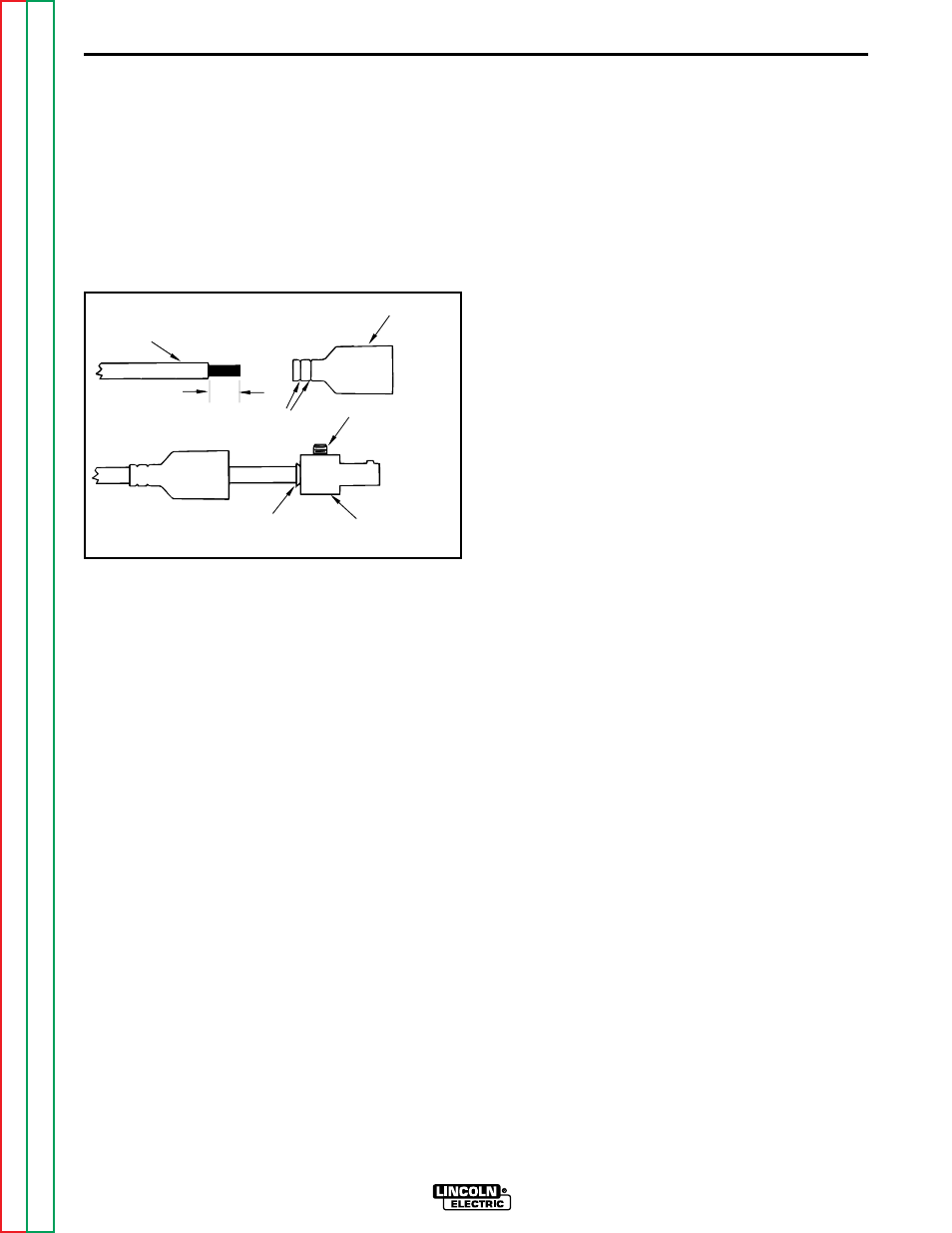

FIGURE A.6 - Installing Twist-Mate Cable Plug.
WELDING CABLE
BOOT
BRASS PLUG
COPPER TUBE
SET SCREW
(70-95 SIZE MAY HAVE
2 SET SCREWS)
SEE
ABOVE
TRIM
