ELECTRICAL DIAGRAMS
G-18
IDEALARC CV-300

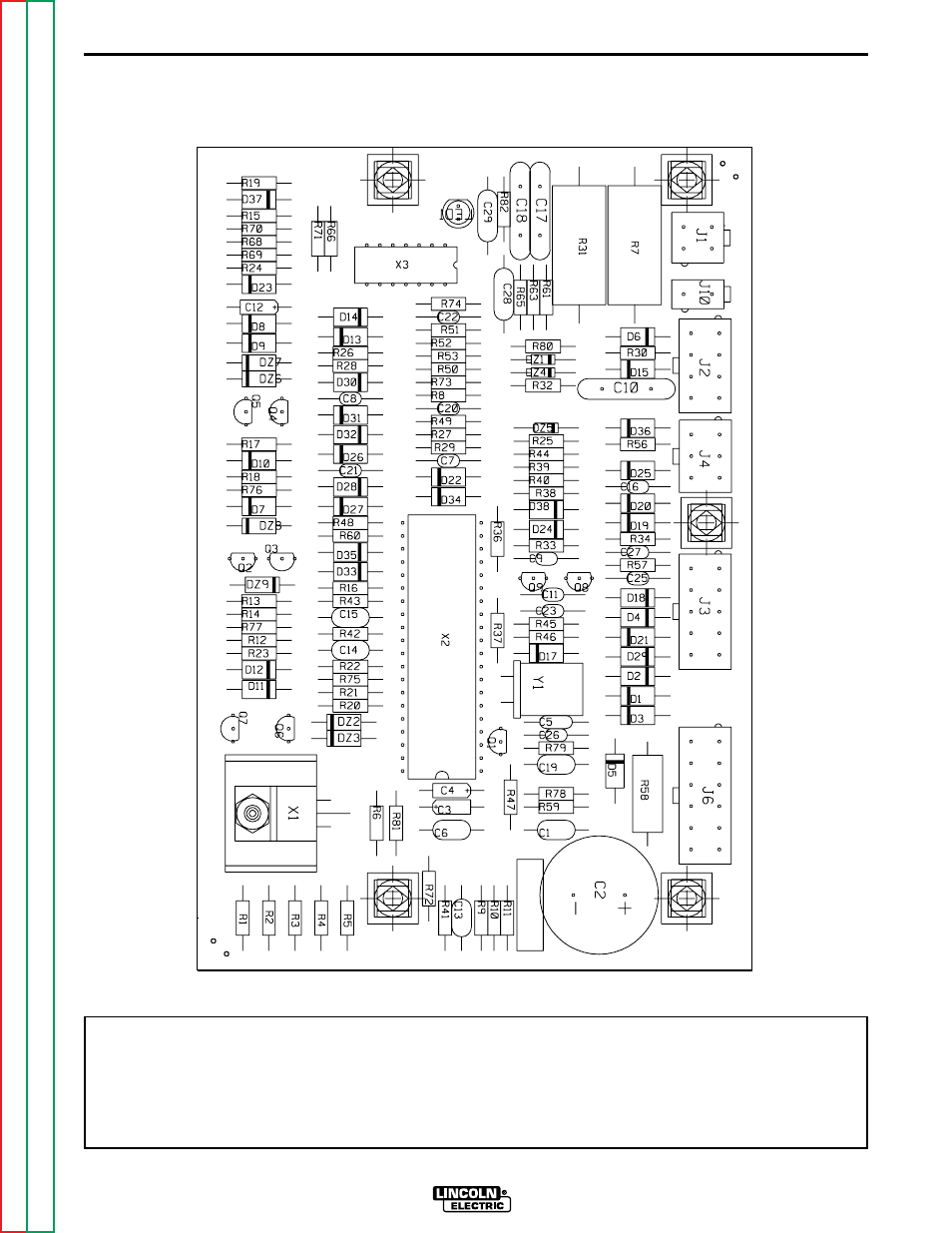

L8873 CONTROL PC BOARD LAYOUT
CV CONTROL
L8873
NOTE: Lincoln Electric assumes no responsibility for liablilities resulting from board level trou-
bleshooting. PC Board repairs will invalidate your factory warranty. Individual Printed Circuit Board
Components are not available from Lincoln Electric. This information is provided for reference only.
Lincoln Electric discourages board level troubleshooting and repair since it may compromise the qual-
ity of the design and may result in danger to the Machine Operator or Technician. Improper PC board
repairs could result in damage to the machine.
