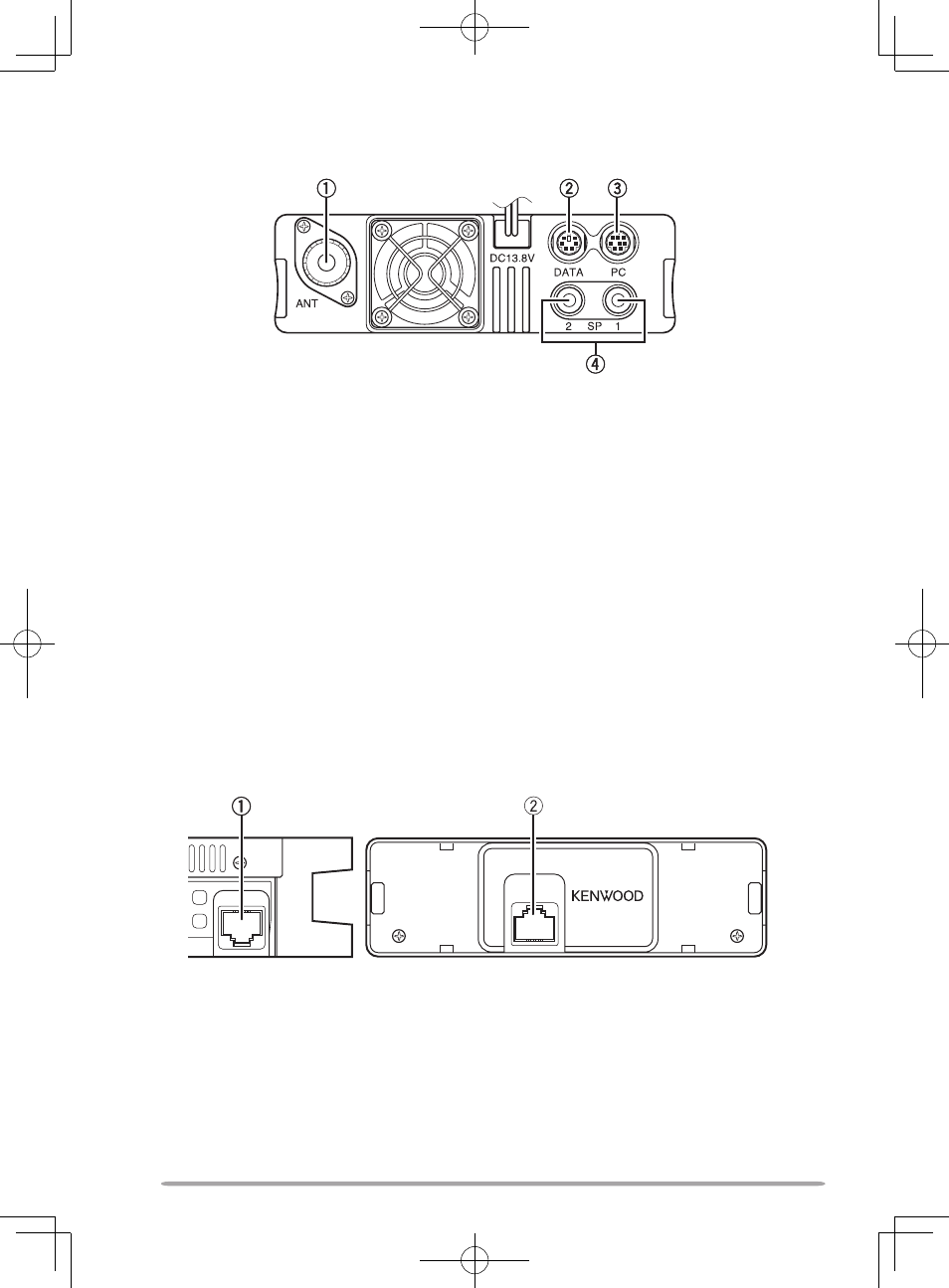

rEAr PANEl
q ANT
Connect an M-type (TM-V71A) or N-type (TM-V71E) external antenna to this
terminal {page 5}. When making test transmissions, connect a dummy load in
place of the antenna. The antenna system or load should have an impedance
of 50 Ω.
w DATA
Connect a TNC unit to this terminal, via a 6-pin mini DIN connector.
e PC
Connect a personal computer to this terminal, via an -pin mini DIN connector.
r SP (SP 1/ SP 2)
If desired, connect 1 or 2 external speakers for clearer audio. These jacks
accept 3.5 mm (1/") diameter, 2-conductor plugs {page 7}. Refer to page 71
to determine how the speakers will be used.
sUb-PANEl
q MIC
Connect the supplied microphone to this jack {page 7}.
w PANEL
When using an optional panel kit, attach the panel to this terminal using the
MIC
PANEL
