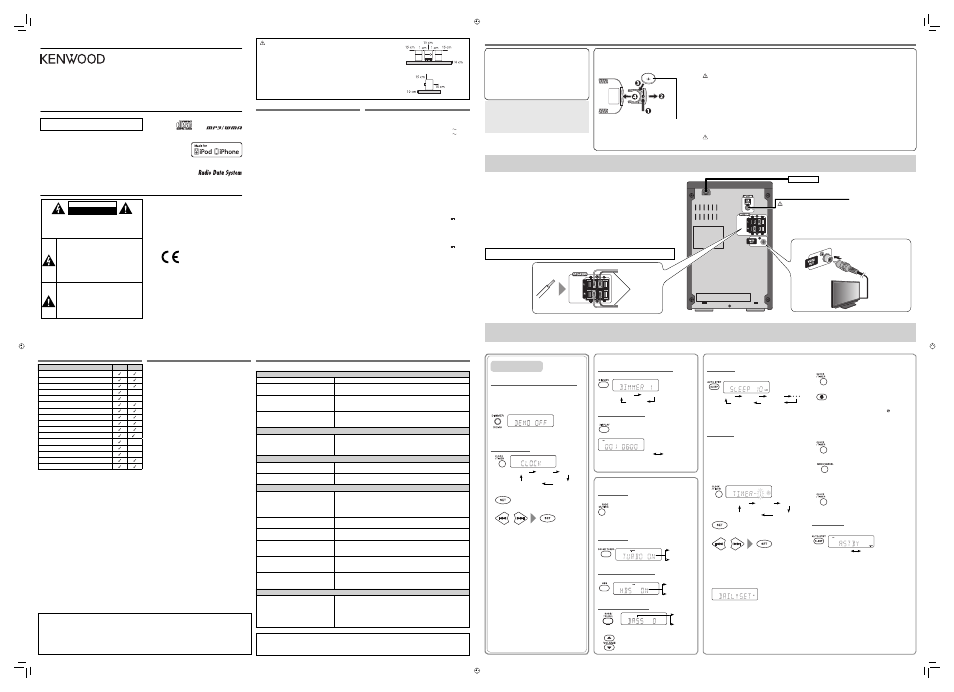

CAUTION: Proper Ventilation
Do not block the ventilation openings or holes. (If the
ventilation openings or holes are blocked by a newspaper or
cloth, etc., the heat may not be able to get out.)
To avoid risk of electric shock and fire, and to prevent damage,
locate the apparatus as follows:
Front: No obstructions and open spacing.
Sides/Top/Back: No obstructions should be placed in the areas
indicated by the dimensions in the illustration.
Bottom: Place on the level surface. Maintain an adequate air
path for ventilation by placing on a stand with a height of
10 cm or more. 1.
2.
3.
Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United
States and/or other countries.
iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other
countries.
“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically
to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple
is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note
that the use of this accessory with iPod or iPhone may affect wireless performance. •
•
•
COMPACT Hi-Fi COMPONENT SYSTEM
© 2010 Kenwood Corporation LVT2196-001A [E, X]
M-515
0910YOMMDWDAT
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
THE LIGHTNING FLASH WITH ARROWHEAD
SYMBOL, WITHIN AN EQUILATERAL TRIANGLE,
IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULATED "DANGEROUS
VOLTAGE" WITHIN THE PRODUCT’S
ENCLOSURE THAT MAY BE OF SUFFICIENT
MAGNITUDE TO CONSTITUTE A RISK OF
ELECTRIC SHOCK TO PERSONS.
THE EXCLAMATION POINT WITHIN AN
EQUILATERAL TRIANGLE IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF
IMPORTANT OPERATING AND MAINTENANCE
(SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE APPLIANCE.
INSTRUCTION MANUAL
Declaration of Conformity with regard
to the EMC Directive 2004/108/EC
Manufacturer:
Kenwood Corporation
2967-3 Ishikawa-machi, Hachioji-shi, Tokyo, 192-8525
Japan
EU Representative's:
Kenwood Electronics Europe BV
Amsterdamseweg 37, 1422 AC UITHOORN,
The Netherlands
Sleep Timer
Specify the time (in minutes).
To check the remaining time until the System shuts off,
press SLEEP once.
Daily Timer
By using Daily Timer, you can wake up with your favorite
music.
Set the clock before using Daily Timer (see “Setting the
clock” in “Initial settings”).
You can store three Daily Timer settings.
Tune into a station, insert a disc, or connect a USB mass
storage class device/iPod to the System beforehand.
1 Select a Daily Timer number.
2
3 Set the timer contents.
Hour and minute for the on-time and off-time
Playback source
For “TUNER FM”: Select a preset number. (To preset
stations, see “Presetting stations” in “FM radio.”)
For “CD” or “USB”: Select a track number. (For MP3/
WMA: Select a group, then a track number.)
Volume
To correct a misentry during the process, press
CANCEL. You can return to the previous step.
•
•
•
•
–
–
•
•
–
•
4 Press TIMER repeatedly to exit from the setting.
5 Turn off the System.
The STANDBY lamp starts flashing.
While on standby, the timer indicator ( ) is not
displayed.
To cancel a Daily Timer
1 Select a Daily Timer number.
2 Cancel the selected Daily Timer.
The timer indicator is turned off.
The timer contents are kept.
3 Press TIMER repeatedly to exit from the setting.
Auto Standby
You can turn off the System automatically.
“A.STBY” and “SET” appear alternately.
The A.STBY indicator starts flashing after playback
stops. If no operation is done for about 3 minutes, the
System is turned off.
This function cannot be used when “TUNER FM” or
“AUDIO IN” is selected as the source.
This function does not work when Sleep Timer is
activated.
This function does not work for iPod mini (1st and 2nd
Generations), iPod photo (4th Generation) or iPod (4th
Generation).
•
•
•
•
•
•
Lithium coin battery
(product number: CR2025)
Sound adjustments
Fade muting
To drop the volume in a moment
To restore the volume, press again or adjust the
volume level.
Sound Turbo
To emphasize the sound
Hyper Bass Sound (HBS)
To reinforce the bass sound
Bass and treble levels
1
2 Adjust the level.
❍
•
Display settings
Display/illumination brightness
You can dim the display window and illumination.
Display information
You can change the information shown on the display.
Ex.: During playback of a CD...
The information shown on the display differs
depending on the source.
❍
•
Compatible iPod models
iPod model Audio Video
iPod nano (5th Generation)
iPod nano (4th Generation)
iPod nano (3rd Generation)
iPod nano (2nd Generation) –
iPod nano (1st Generation) –
iPod touch (3rd Generation)
iPod touch (2nd Generation)
iPod touch (1st Generation)
iPod classic
iPod video (5th Generation)
iPod photo (4th Generation) *
iPod (4th Generation) –
iPod mini (2nd Generation) –
iPod mini (1st Generation) –
iPhone 3GS
iPhone 3G
Only for still picture
If iPod does not play correctly, update iPod software to the
latest version.
*
Canceling the display demonstration
When you plug in and turn on the System, the
display demonstration starts automatically if no
operation is done for about 2 minutes.
To cancel the display demonstration
Setting the clock
1
“CLOCK” and “ADJUST” appear alternately.
2
3 Adjust the hour and minute.
To go back to the previous step, press CANCEL.
The clock is not shown on the display until you
set it.
The clock may gain or lose 1 to 2 minutes per
month. You may need to readjust the clock
periodically.
•
•
•
Supplied accessories
After unpacking, check to make sure that you have all
the following items:
Remote control: RC-F0515E (× 1)
Lithium coin battery CR2025 (× 1)
The battery has been installed in the remote
control when shipped from the factory.
FM antenna (× 1)
If anything is missing, consult your dealer immediately.
❍
•
•
–
•
CAUTION
Store the battery in a place where children cannot reach. If a child accidentally swallows the battery, consult a doctor
immediately.
To prevent the battery from overheating, cracking, or starting a fire:
Do not recharge, short, disassemble or heat the battery or dispose of it in a fire.
Do not leave the battery with other metallic materials.
Wrap the battery with tape and insulate when throwing away or saving it.
Do not poke the battery with tweezers or similar tools.
Dispose of battery in the proper manner, according to federal, state, and local regulations.
The battery (battery pack or battery installed) shall not be exposed to excessive heat source such as sunshine, fire or
the like.
CAUTION for lithium battery
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
•
•
–
–
–
–
•
•
•
Getting started
Red
Black
From left speaker
From right speaker
FM antenna (supplied): Extend it so that you can obtain the best reception.
Maintenance
To get the best performance of the System, keep your discs
and the mechanism clean.
Handling discs
Remove the disc from its case by holding it at the edge
while pressing the center hole lightly.
Do not touch the shiny surface of the disc, or bend the
disc.
Put the disc back in its case after use.
Be careful not to scratch the surface of the disc when
placing it back in its case.
Avoid exposure to direct sunlight, temperature extremes,
and moisture.
To clean the disc:
Wipe the disc with a soft cloth in a straight line from center
to edge.
Cleaning the System
Stains should be wiped off with a soft cloth. If the System
is heavily stained, wipe it with a cloth soaked in water-
diluted neutral detergent and wrung well, then wipe
clean with a dry cloth.
Since the System may deteriorate in quality, become
damaged or get its paint peeled off, be careful about the
following:
DO NOT wipe it hard.
DO NOT wipe it with thinner or benzine.
DO NOT apply any volatile substances such as
insecticides to it.
DO NOT allow any rubber or plastic to remain in contact
for a long time.
•
•
•
•
•
•
•
–
–
–
–
Sound and other adjustments
Connections
Do not connect the AC power cord until all other connections have been made.
In this manual...
The remote control buttons are used for explaining the
operations unless mentioned otherwise. However, if the
System has the same or similar button names, they can
also be used for the operations.
“File” and “track” are used interchangeably. •
•
Specifications
Main unit
General
Power source:
For European models AC 230 V , 50 Hz
For Australian models AC 240 V , 50 Hz
Power consumption at operation: 22 W
Power consumption in standby mode: 1 W or less
Dimensions (W × H × D) [including projecting parts]:
165 mm × 250 mm × 229 mm
Weight (approx.): 2.3 kg
Audio output
Analog sound output:
Speakers × 2
Output power
(IEC 268-3):
20 W + 20 W at 6 Ω (10% THD)
Fitting impedance: 6 Ω – 16 Ω
Audio input
Sound input:
AUDIO IN × 1
NORMAL: 500 mV/47 kΩ
HIGH: 250 mV/47 kΩ
iPod × 1: DC 5 V 500 mA
Video out: Composite
USB
Compatible with USB 2.0 Full-Speed
Compatible device:
USB mass storage class device
Compatible file system: FAT16, FAT32
Output power: DC 5 V 500 mA
Tuner
FM tuner:
Receiving frequency: 87.50 MHz to 108.00 MHz
Antenna: 75 Ω - unbalanced type
Speaker
Type: Bass-reflex type
Speaker: Full range: 10 cm
Power handling capacity: 20 W
Impedance: 6 Ω
Dimensions (W × H × D) [including projecting parts]:
140 mm × 250 mm × 135 mm
Weight (approx.) (1 speaker): 1.3 kg
Supplied accessories
See “Supplied accessories” in “Getting started.”
Design and specifications are subject to change without
notice.
•
•
•
•
•
•
•
•
•
•
•
•
•
• Red
(On the main unit)
(Hold)
Main unit
Speaker Speaker
Main unit
Troubleshooting
If you are having a problem with your System, check this list for a possible solution before calling for service.
General
Power does not come on.
\ Power plug is not inserted securely. Plug it in securely.
Adjustments or settings are suddenly
canceled before you finish. \ There is a time limit. Start the procedure again.
Unable to operate the System from the
remote control. \ The path between the remote control and the remote sensor on the
System is blocked.
\ The battery is exhausted.
No sound is heard. \ Speaker connections are incorrect or loose.
\ Headphones are connected.
\ Set the volume control to proper sound level.
FM radio
Hard to listen to broadcasts because of
noise.
\ Antenna connection is incorrect or loose.
\ The FM antenna is not properly extended and positioned.
\ Electrostatic discharge from your body may cause noise. If this
happens, turn the System off then on again.
iPod
The iPod does not play, but “CONNECT”
appears on the display.
\ The iPod battery is low or exhausted. Charge the iPod battery.
“PLEASE IPOD CHECK” appears on the
display. \ The iPod is not connected properly.
Disc/USB
The disc/USB mass storage class device
does not play.
\ The disc is placed upside down. Place the disc with the label side
facing up.
\ The disc is recorded using “packet writing (UDF file system).” It cannot
be played.
\ The USB mass storage class device is not connected properly.
“NO FILE” appears on the display. \ MP3/WMA files are not recorded on the disc or USB mass storage class
device.
Groups and tracks are not played back as
you expect. \ Playing order is determined when the groups and tracks are recorded.
It depends on the writing application.
The disc/USB mass storage class device
sound is discontinuous. \ The disc is scratched or dirty.
\ MP3/WMA files have not been properly recorded onto the USB mass
storage class device.
Sound from the USB mass storage class
device is interrupted. \ Noise and static electricity may stop the sound. In this case, disconnect
and connect the USB mass storage class device again after turning off
the System.
The disc tray does not open or close. \ The AC power cord is not plugged in.
\ Disc ejection is prohibited. “LOCKED” appears (see “Prohibiting disc
ejection” in “Disc/USB”).
Timers
Daily Timer does not work.
\ The System was turned on when the on-time came. The timer starts
working only when the System is turned off.
\ When you unplug the AC power cord or if a power failure occurs, the
timer will be canceled. You need to set the clock first, then the timer
again. (See “Setting the clock” in “Initial settings” and “Daily Timer” in
“Timers” on the right.)
If the System does not work correctly, disconnect the AC power cord from the wall outlet, wait for a while, then
connect the cord again.
Kenwood corporation bears no responsibility for any loss of data in USB mass storage class device or iPod while using
this System. •
•
Initial settings
DIMMER 2 DIMMER 1
DIM OFF
Current track’s elapsed time Clock
TURBO ON
TURBOOFF
HBS ON
HBS OFF
Timers ❍
CLOCK ADJUST Exit from the setting
TIMER-1 TIMER-2 TIMER-3
Monitor
To view video/picture from the iPod
Playable disc/file types
This System can play back...
Audio CD and CD-R/CD-RW in Audio CD format
MP3/WMA files on a CD-R/CD-RW (ISO 9660 format) or
USB mass storage class device (maximum data transfer
rate: 2 Mbps)
This System cannot play “packet write” discs.
This System can recognize up to 99 groups and 999 tracks
on a disc and USB mass storage class device.
For MP3/WMA playback...
Some MP3/WMA files may not be played back due to
their recording conditions.
Files created with the following functions provided with
Windows Media™ Player 9 or after cannot be played
back:
• WMA Professional
• WMA Lossless
• WMA Voice
This System can play only discs of ISO 9660 Level 1 or
Level 2.
This System can play back MP3/WMA recorded at the
following sampling frequency and bitrate.
MP3 Sampling frequency:
Bitrate: 32/44.1/48 kHz
32 kbps –
320 kbps (VBR*)
WMA Sampling frequency:
Bitrate: 32/44.1/48 kHz
48 kbps –
192 kbps (VBR*)
*Audio files encoded in VBR (Variable Bitrate) may
contain data outside the compatible bitrate of this
system. Such audio files containing incompatible
bitrates cannot be played back.
It is recommended to record each file at a sampling rate
of 44.1 kHz and at a bitrate of 128 kbps.
This System can show the Tag data.
For playback of files on a USB mass storage class device...
You cannot play back files larger than 2 GB.
This System may not play back some USB mass storage
class devices and does not support DRM (Digital Rights
Management).
•
–
–
•
•
•
–
–
–
–
–
–
•
–
–
Composite video
cord (not supplied)
To a wall outlet
Exit from the setting CLOCK ADJUST
TIMER-1 TIMER-2 TIMER-3
BASS
TREB
SLEEP 10 SLEEP 20 SLEEP 30
SLEEP180 SLEEPOFF
To composite video input
Prepare the remote control
When you use the remote control for the first time, pull out the insulation sheet.
To replace the battery in the remote control
❍
(Hold)
A.STBY SET A.STBY CANCEL
ENGLISH ENGLISH
Read Safety instructions and others carefully before
using the System.
CAUTION for outdoor antenna installation
Since antenna installation necessitates skill and experience, always consult
your dealer before installation. The antenna should be placed at a distance
from the power distribution wires. Otherwise, an electric shock accident may
occur if the antenna falls down.
NOTES:
Make sure the antenna conductors do not touch any other terminals, connecting cords or the power cord.
Also, keep the antenna away from metallic parts of the System, connecting cords, and the AC power cord.
Otherwise, it could cause poor reception.
When connecting the speaker cords, match the polarities of the speaker terminals: red to (+) and black to
(–).
DO NOT connect more than one speaker to each terminal.
Use only speakers with the same speaker impedance as indicated by the speaker terminals on the rear of
the System.
DO NOT allow the conductor of the speaker cords to come into contact with the metallic parts of the
System.
The supplied speakers are not magnetically shieled. Keep enough distance between the speakers and a
TV, otherwise the color on the TV screen could be affected. •
•
•
•
•
•
Do not unplug the AC power cord before turning off the System. Some of the settings you have
made will be lost if you do so.
Front view
Side view
M515_EX_5th.indd 1 M515_EX_5th.indd 1 10.8.24 9:51:35 AM 10.8.24 9:51:35 AM
