D-26 – Konica Minolta PagePro 1390 MF User Manual
Page 68
D-26

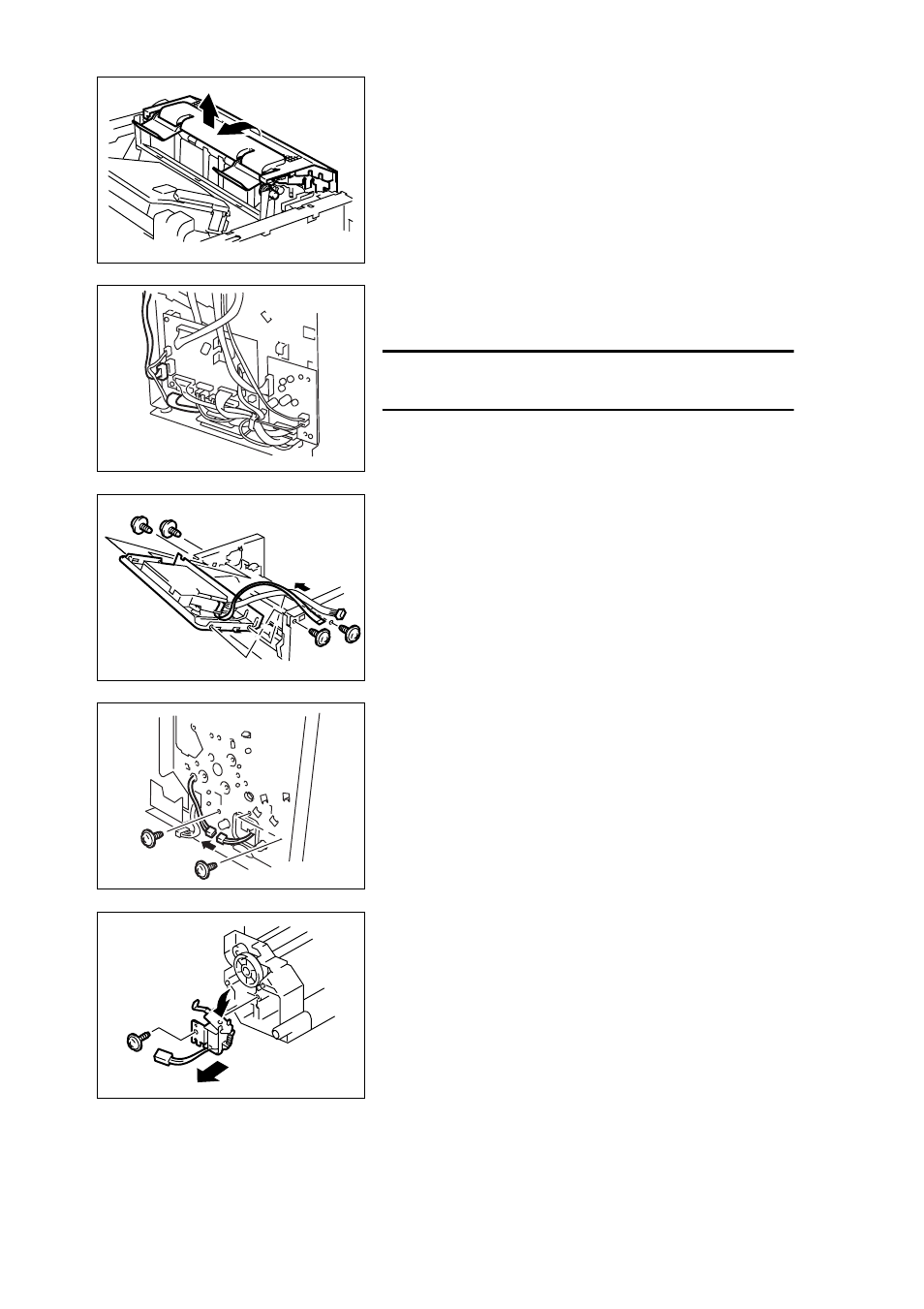

11. Remove the Upper Door.
4558F2C023DA
12. Disconnect the flat cable and the connector from
the Mechanical Control Board.
NOTE
• Use the utmost care not to snap off the flat cable.
4558F2C024DB
13. Remove four screws.
14. Remove the PH Base Plate Assy.
4136D016AB
15. Disconnect the connector of the Paper Take-Up
Solenoid.
16. Remove two screws.
17. Remove the Left Frame.
4558F2C513DA
18. Remove the screw.
19. Remove the Paper Take-Up Solenoid.
4136D018AA
