E-5
3. REPLACEMENT OF CONSUMABLES

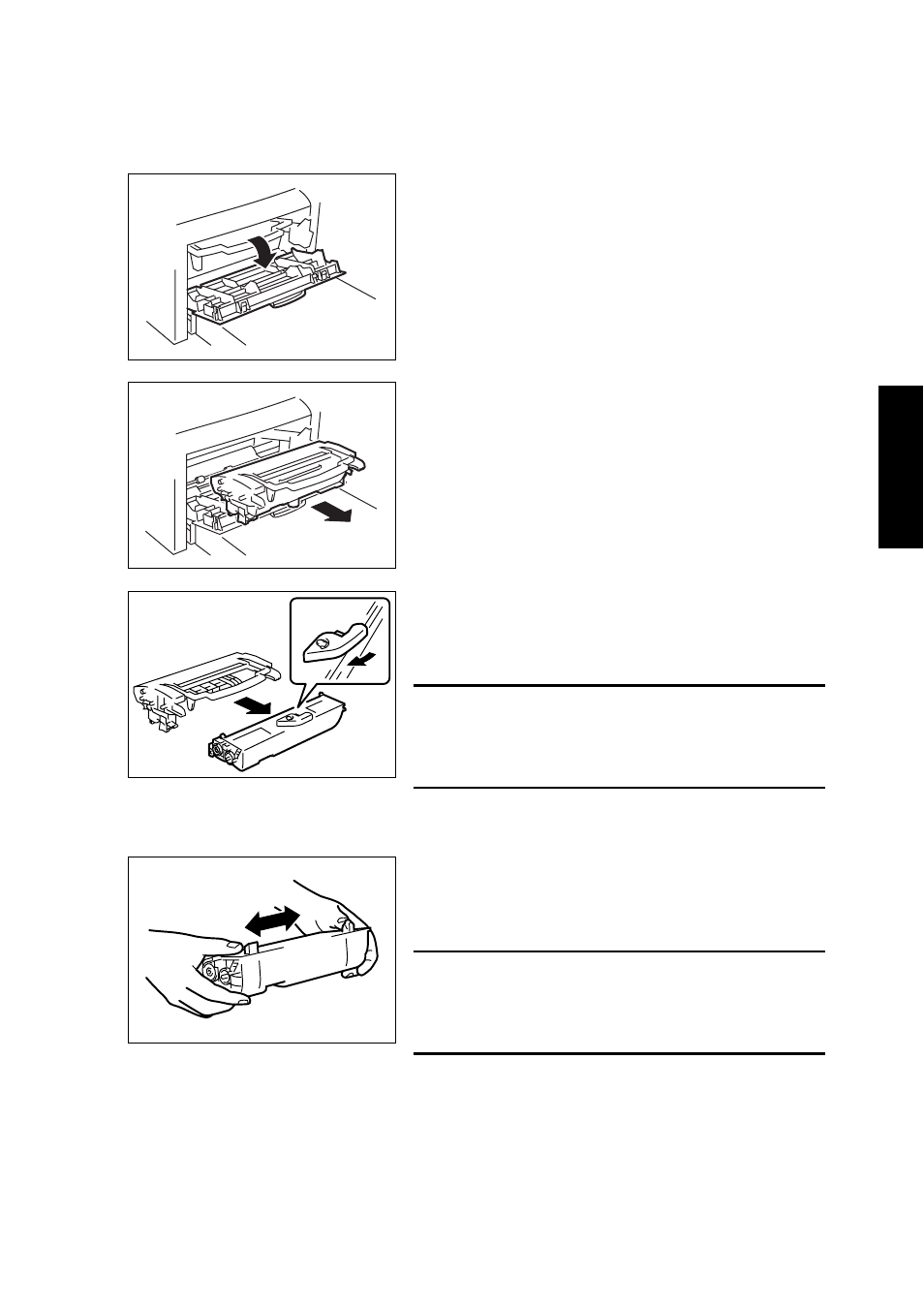

(1) Replacing the Toner Cartridge
1. Lift up the Exit Tray and remove it.
2. Open the Front Door.
4558F2C508DA
3. Remove the Imaging Cartridge.
4558F2C509DA
4. Pull the lever of the Toner Cartridge in the direc-
tion shown in the illustration and disconnect the
Toner Cartridge from the Drum Cartridge.
NOTE
• If the Drum Cartridge is to be placed on a floor or
similar place, use care to prevent toner from scat-
tering around.
4136E007AC
1. Take out a new Toner Cartridge and shake it in
the horizontal direction sufficiently to agitate the
toner.
NOTE
• DO NOT place the Toner Cartridge in an upright
position or shake it vigorously; otherwise, toner will
spill.
4136E008AA
