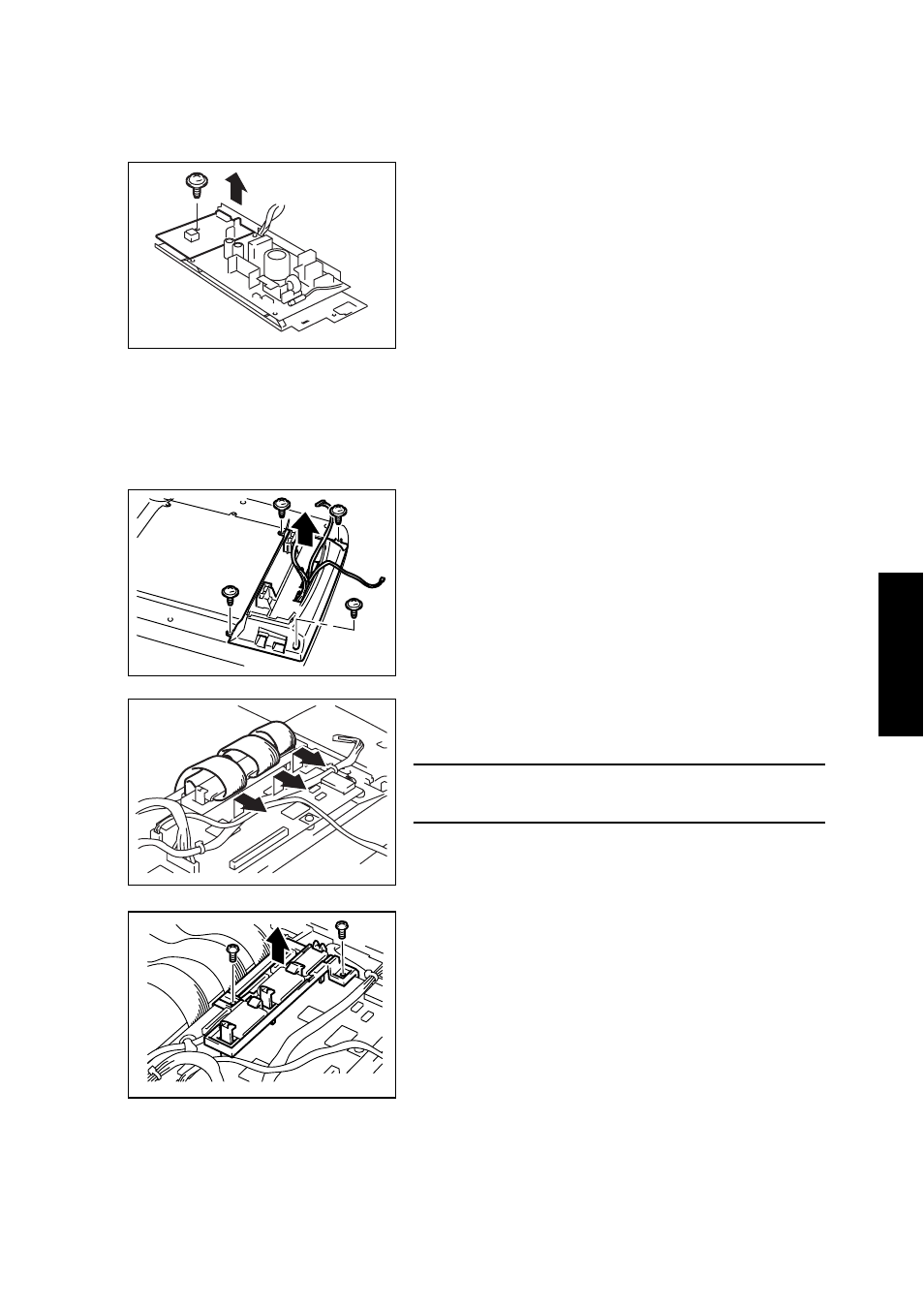

D-15

(9)

Removing the High Voltage Unit (HV1)

1. Remove the Power Supply Unit Assy.

☞ D-14

(10) Removing the Controller/Image Control Board (PWB-I)

1. Remove the IR Unit.

☞ D-18

2. Remove the screw and the High Voltage Unit.

4558F2C504DA

2. Remove four screws and the Controller/Image

Control Board Cover.

4558F2C009DA

3. Disconnect three flat cables from the Controller/

Image Control Board.

NOTE
• Use the utmost care not to snap off the flat cable.

4558F2C010DB

4. Remove two screws and the Flat Cable Guide.

4558F2C011DA
