2-5.

Disassembly of the Main Drive Section

(1)

Removing the Main Motor (M1)

1. Remove the Left Cover.

☞ D-2

(2)

Removing the Tray 1 Paper Empty Sensor (PE1)

1. Remove the Imaging Cartridge.

NOTE
• The Imaging Cartridge is the Drum Cartridge, to which the Toner Cartridge is mounted.

2. Remove the Front Door.

3. Remove the Left and Right Covers.

☞ D-2

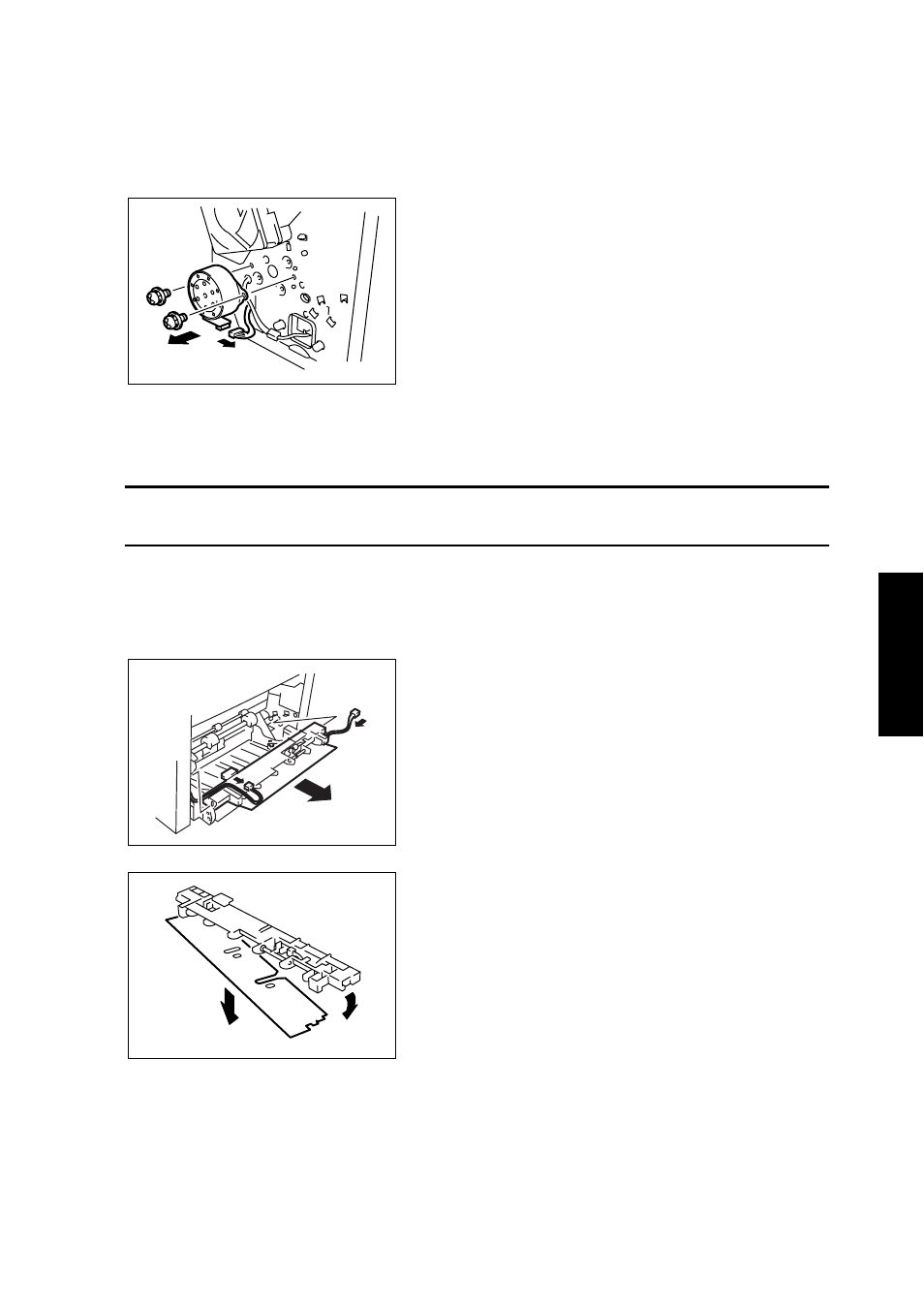

2. Disconnect the connector.

3. Remove two screws.

4. Remove the Main Motor.

4136D010AB

4. Disconnect one connector from the Mechanical

Control Board.

5. Unhook two tabs, disconnect one connector, and

remove the Paper Take-Up Upper Guide Assy.

4558FS2507DA

6. Unhook two tabs and remove the tray.

4136D013AA
