Display, Track ¶8 – Kenwood HM-582MD User Manual
Page 14
Controls and indicators
14
Preparation section
Basic section
Apprication section
Knowledge section
AU TO
OPT
R
L
1:30
R
015
MD
0
004
000
8:26
‰
TRACK
¶8
TONE
PROG.
1
A.P.S.
12 30PM
1
2
3
4
5
6
7
8
!
@
#
9
0
MD
CD
TUNER
DIGITAL AUX
1:30
R
015
MD
0
004
000
8:26
‰
TRACK
TONE
PROG.
1
A.P.S.
12 30PM
1:30
R
CD
01
0:32
‰
TRACK
015
1:30
R
MD
005
26:35
‰
TRACK
TONE
015
L
R
12:30PM

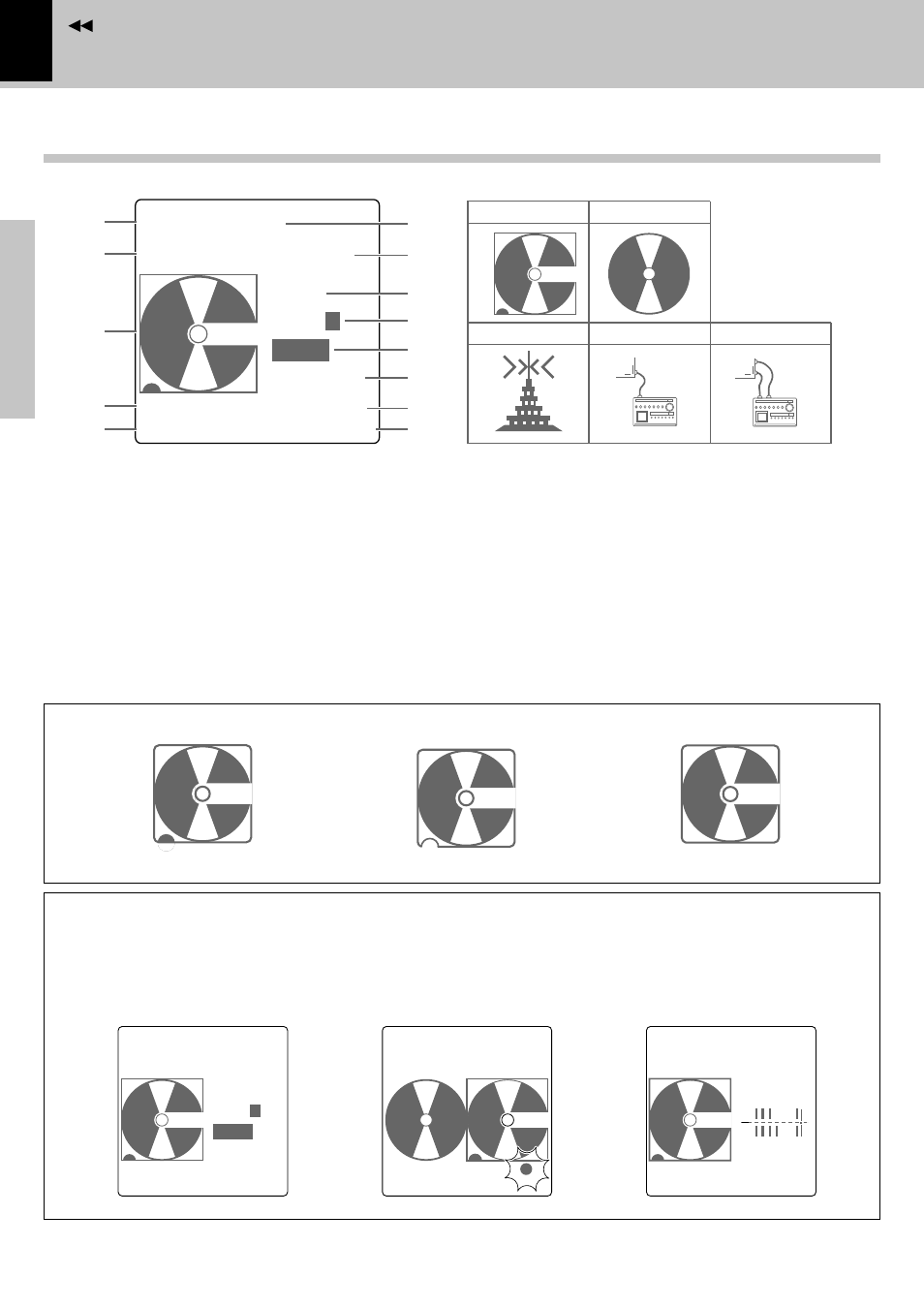

1 Selector display (MD,CD,AM, FM, AUX)
2 Play(3)/Pause(8) indicator
3 Graphic display
4 Playback/tuning indicators
(TRACK, PROGRAM, RANDOM, STEREO)
5 Total tracks of entire MD
6 Track No.being played
7 Character information display
(play time, title display, etc.)
8 Tone related indicators
(S.DIRECT, N.B.1, N.B.2, TONE)
9 TIMER-related display
(O.T.T., PROG.1, PROG.2)
0 Auto Power Save display
! Time display
@ MD rec(¶)/Pause(8) indicator
# Remaining MD recordable time display
*1 Display when an MD is loaded
Recordable MD
In regard to DISPLAY key
Normal display
Graphic display
Level meter display
AUX
Display
Each press of the DISPLAY key switches the graphic display. (Example of display)
*1
