System connections
Connections
SYSTEM
CONTROL
FRONT SPEAKERS
(4-16 Ω )
CENTER
SPEAKER
(4-16 Ω )
SURROUND SPEAKERS
DIGITAL IN
VIDEO 2
COAXIAL
VIDEO 3
COAXIAL
VIDEO 4
OPTICAL
CD 1
OPTICAL
SL 16 XS 8
( SL 16 )( XS 8 )
(4-16 Ω )
SWITCHED TOTAL
90W MAX.
L R A L R L C R B
SL 16
TEXT
L R
R
ANTENNA
AM
- FM 75 Ω
GND
CD1
PHONO MD/
TAPE 1
REC
OUT
PLAY
IN
REC
OUT
PLAY
IN
PLAY
IN
PLAY
IN CD2 /
TAPE 2
MONITOR
MONITOR
OUT
FRONT
FRONT
SURROUND
SURROUND
CENTER
CENTER
@ SUB
WOOFER
SUBWOOFER
L
L R
L R VIDEO S VIDEO
PRE OUT VIDEO4 6CH. INPUT
AUDIO
VIDEO 3
VIDEO 4
PLAY
IN VIDEO 2
VIDEO 1
L R AUDIO
PLAY
IN
REC
OUT
+
-
6CH
2CH
VIDEO 4
INPUT
S VIDEO V L - AUDIO - R AV AUX *
1
Video OUT
Audio IN
Audio OUT
Video OUT
Video IN
VCR
Monitor TV
Audio OUT
Video
IN
Video OUT
Audio OUT
RF OUT
LD player
COAXIAL
OUT
Audio
OUT Video
OUT
VCR2 or video camera
About the S VIDEO jacks
Use the S VIDEO jacks to make connections
to video components with S VIDEO IN/OUT
jacks.
÷If you use the S VIDEO jacks to connect your
video playback components, be sure to use the
S VIDEO jacks when connecting your monitor
and video recording components.
÷The S VIDEO jacks of this unit are compatible
with widescreen TV.
*1 Connection to the OPTICAL jack
Remove the protective cap from the
DIGITAL IN (OPTICAL) jack only when
it is used for connection.
AC-3 RF
Demodulator
8

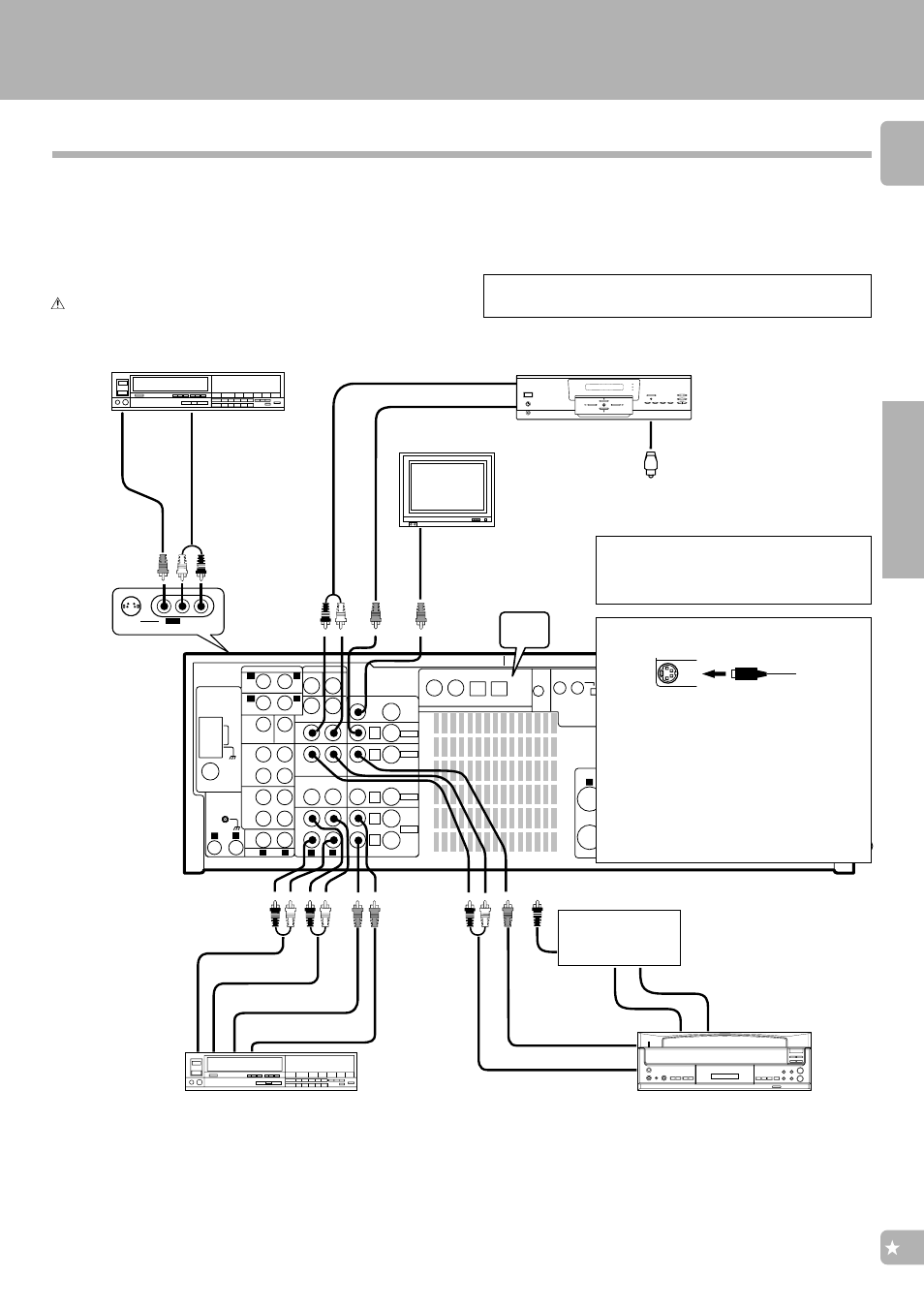

Connection of video components
The connected components shown here are given as ex-
amples because the available models may vary depending
on marketing areas.
Make connections as shown below.
When connecting the related system components, refer
also to the instruction manuals of the related compo-
nents.
Do not plug in the power lead until all connections are
completed.
S VIDEO cord
÷ To connect a Video CD compatible CD player and outputs its video,
connect the player to one of the sets of input jacks VIDEO1 to VIDEO4.
In this case, do not connect the system control cord to the CD player.
Also connect the system control cords when the KENWOOD
Audio Component System is connected.
DVD player
Digital OUT
8
Digital OUT
8
(Front panel)
MONITOR
OUT
