18
KRF-V7771D (En/T)
Setup
The remote control unit is given with a hierarchical structure so that it can display a large number of functions.
For instance, the menu screens for use in setup can be accessed from the “Main Menu” screen as shown below.

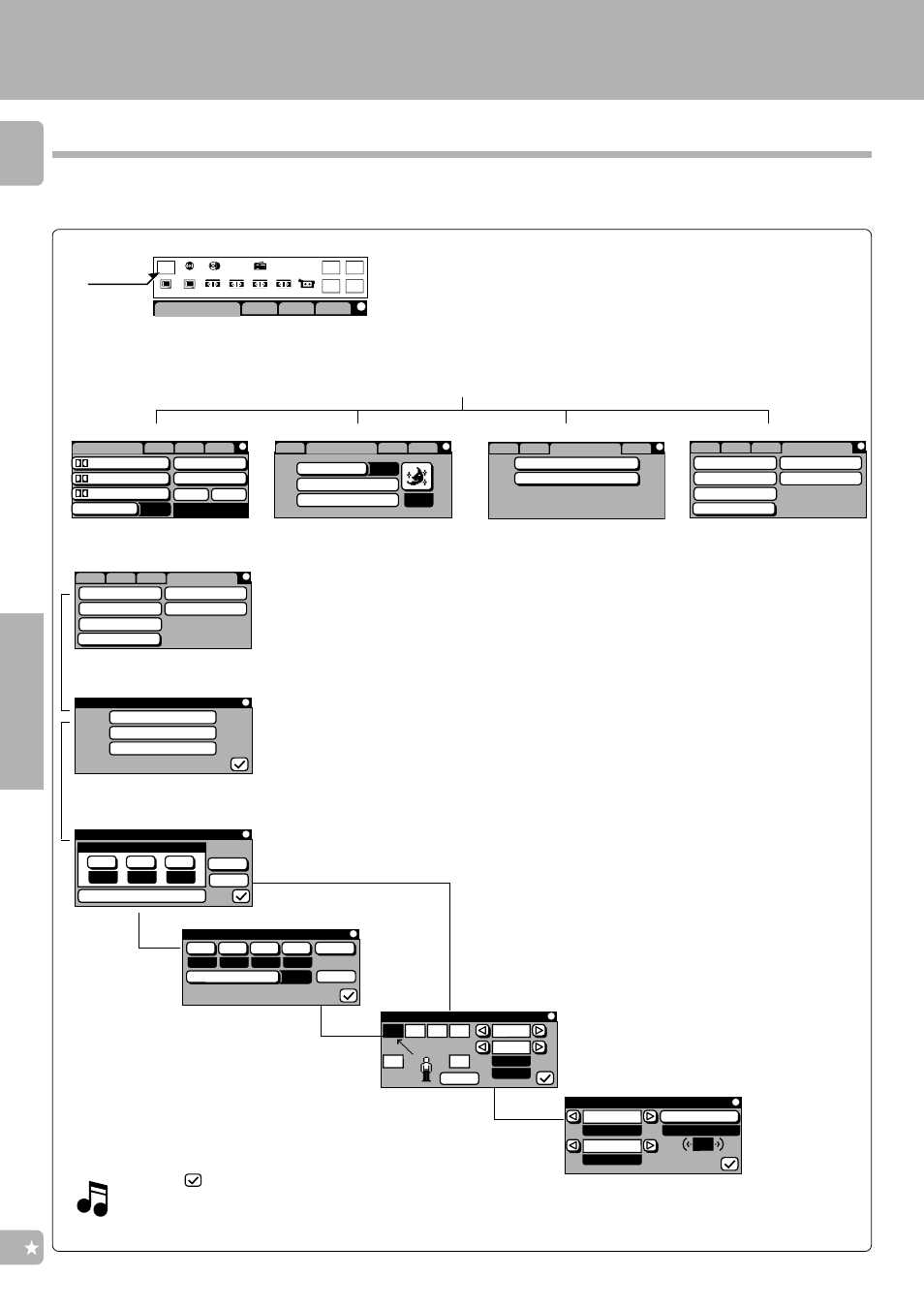

Navigating through the screens of remote control unit
1 To display the “Main Menu” screen, first select the “Main Menu” icon from the segment screen.
2 Move the curosr to “Stp” icon in the “Main Menu” screen to display the “Setup” menu screen.
3 Select the “Surround” icon to display the “Setup Surround” menu.
4 If the “SP Selection” icon is selected...
The “Main Menu” screen includes the “Lstn Mode” (Listen Mode), “Sound”, “Function” and “Setup” menu screens under it.
These menu screens can be displayed by moving the cursor on icons “Lsn”, “Snd”, “Fnc” and “Stp” respectively.
“Sound” menu screen “Lstn(Listen)Mode”menu screen “Function” menu screen “Setup” menu screen
The “Main Menu” screen has the following 4 menu screens under it.
÷ Selecting an icon with shadow (the “Back Light” icon in this example) activates the function of the icon.
÷ The icons without shadow (the “Surround”, “IR”, “Download”, “Input”, and “Macro” icons in this
example) have more menu screens under each icon.
Setup of the remote control unit
5 If the “Next” icon is selected...
6 If “Next” is selected...
(If “Custom Setup”
is selected)
To return to the previous menu screen
Select the “ ” (checkmark) icon to return to the menu screen
in the hierarchy level immediately above the current level.
Select the “Main Menu” icon to return to the “Main Menu”
screen at the highest level.
