23
KRF-V7771D (En/T)

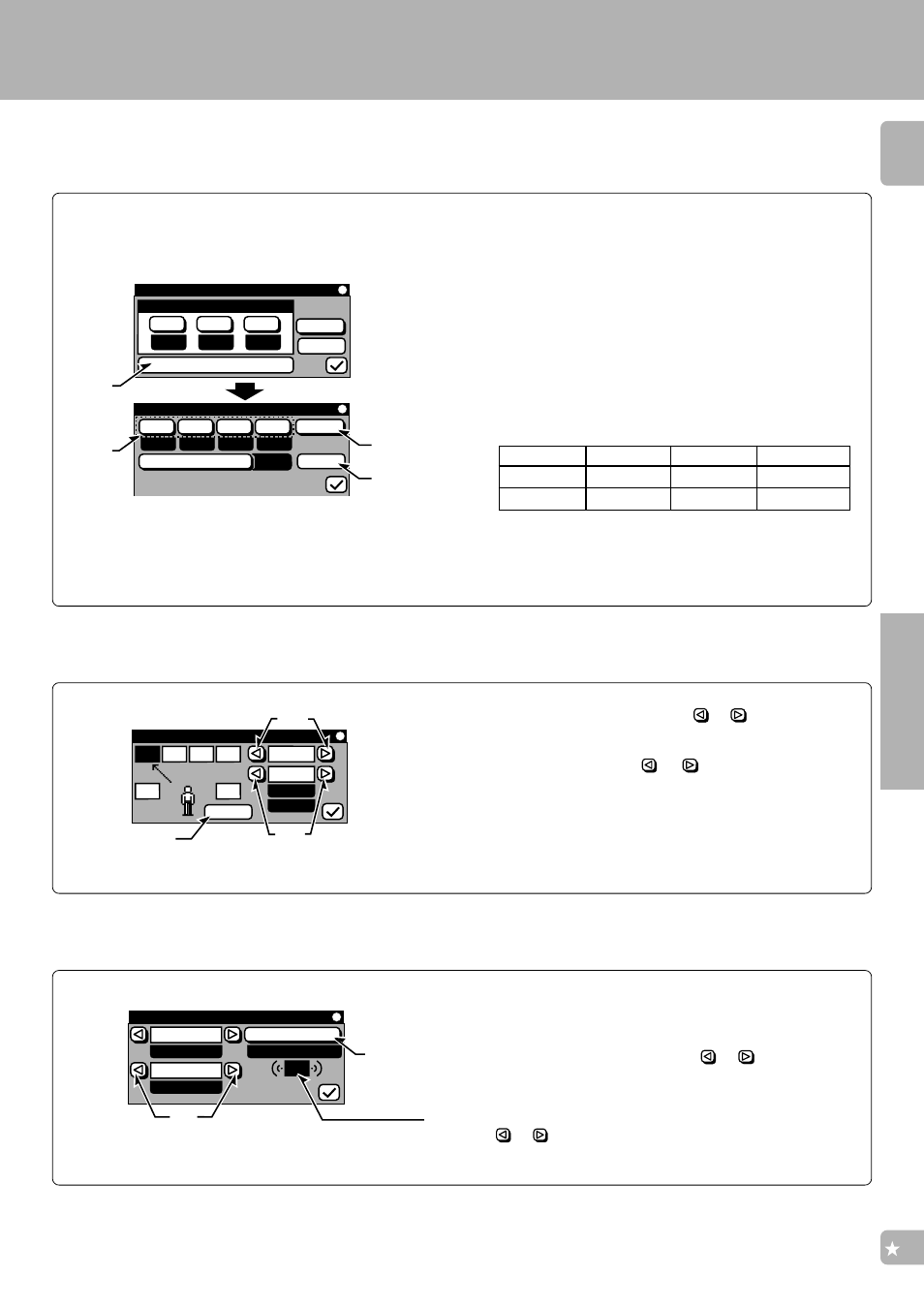

Setup
3
÷ Setting SW Re-Mix to On adds the low-frequency components of
F, C and S to SW.
4 Select the “Next” icon to go to the next step.
Continued from the previous page
If you want a detailed setup operation, select “Custom Setup”.
When using wideband speakers, it is recommended to set the
speaker size in “SP Selection (Custom)” to “Lrg”.
List of the relationship between speaker size and on/off
5
4
Set the “Speaker Distance”.
Adjust the “Speaker Level”.
1 Select the speaker (SP) with the or icon of “SP”.
2 Select the distance between the listening position and the
speaker (Dist.) with the or icon of “Dist”.
3 Set for each speaker by repeating 1 and 2.
4 Select the “Next” icon to go to the next step.
1 Select “Custom Setup” icon in the “Speaker Selection”
menu screen.
2 Set the details of each speaker.
Lrg : Large-sized speaker
Nml : Midium- or smaller-sized speaker
On
: The speaker is connected
Off : The speaker is not connected.
3 Select the “Entr” icon to enter the selection.
1 Select the “Test Tone” icon and set to “Auto”.
The icon can be switched to “Off”, “Auto” and “Manual” in
order.
2 Adjust the speaker level with the or icon of “Level”
when the test tone comes out from the one you want to
adjust.
÷ When “Manual” is selected above, select each speaker with the
or icon of “Channel” and adjust its level.
3 Adjust each speaker level.
Setup for surround play
F SW C S
Lrg On/Off Off/ Nml/ Lrg Off/ Nml/ Lrg
Nml On Off/ Nml Off/ Nml
Delay time for each speaker is adjusted in this step.
By listening the test tone (noise-like sound), adjust all speakers’ level to equal .
Speaker Selection
Custom Setup
Next
SW Entr
No
C
Yes
S
Yes
Quick Setup
SP Selection(Custom)
Next
SW Entr
Off
F
Lrg
C
Off
S
Nml
SW Re-Mix Off
1
2
3
4
Speaker Distance
2.4m
Next
Dist.
SP L C SW
LS RS
R
8 ft
2
1
4
Speaker Level
- - Auto
Channel Test Tone
+10dB
Level LS
Speaker
with test t
2
1
SW : Subwoofer
F
: Front speaker
C : Center speaker
S : Surround speaker
