1. WHAT IS INCLUDED
2. DVR BUTTON AND FUNCTIONS

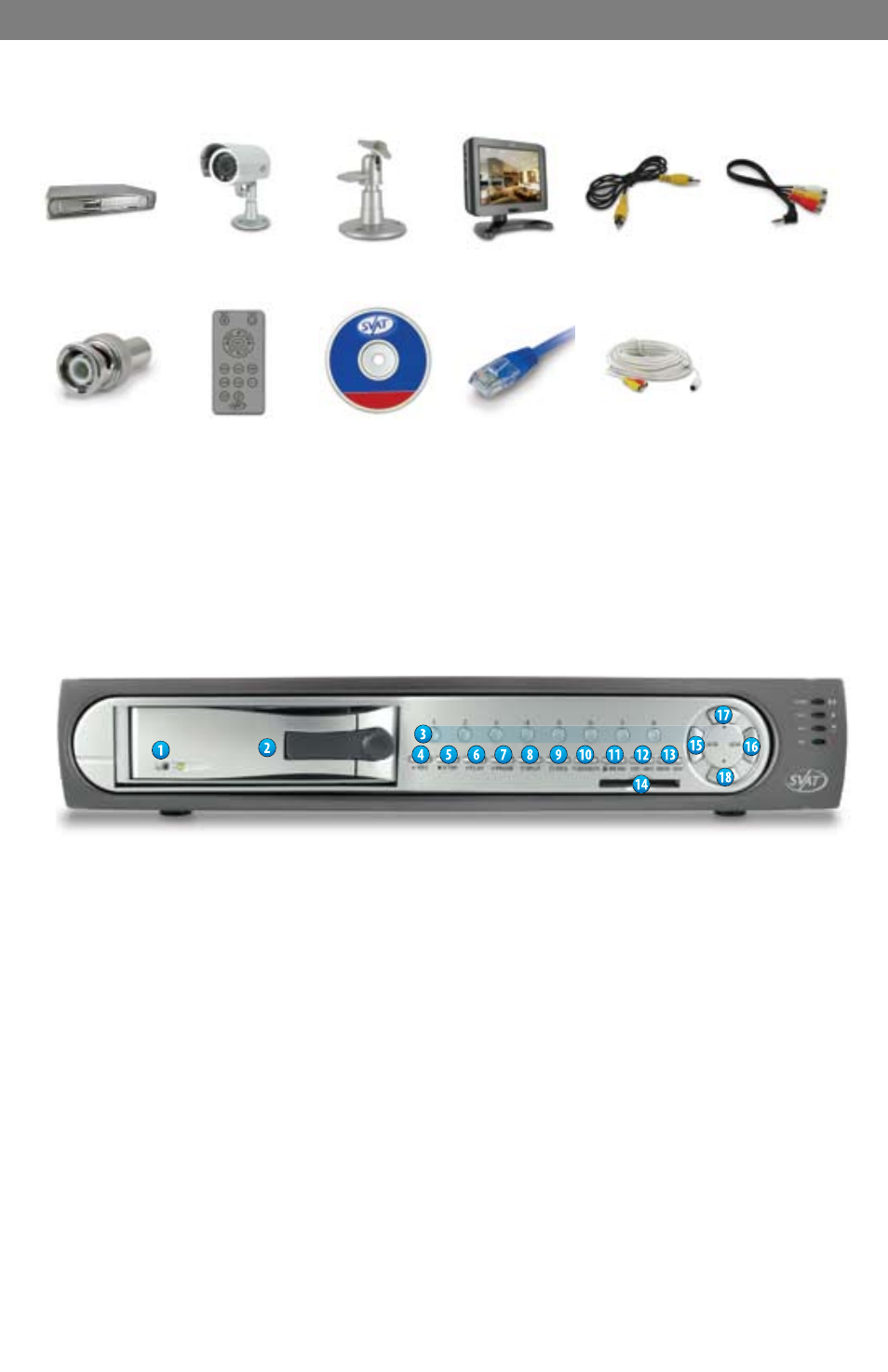

2.1 Front Panel
1. LED Indicators (Alarm/Play/HDD/Record)
2. Removable/Lockable HDD Casing: 3.5” IDE HDD
3.
Camera Channel Select (1-8)
4. Record Button
5. Stop Button
6. Play Button
7. Pause Button
8. Split Button – Switch between Full Screen/ Quad Screen/ 9-Split Screen
9. Auto Sequencing Button – Automatically cycle through all the camera channels
10. Search Button – Quickly search your recorded footage by date and event.
11. Menu Button
12. Exit/Info Button – Return to the previous menu/view system information
13. Enter/Display Button –
Confirm selection/show or hide onscreen display
14. CF Card Slot
15. Left Button – Change values in the menu screen/rewind
16. Right Button – Changes values in the menu screen/fast forward
17. Up Button – Navigate the onscreen menu/change camera channels
18. Down Button – Navigate the onscreen menu/change camera channels
Software CD 10 RCA to BNC
Connectors
1 Remote Control for
LCD Monitor
10ft RJ45
Ethernet Cable
8” Ultra Slim LCD
Monitor
8 Camera Mounts w/
Hardware
8 Indoor/Outdoor Night
Vision CCD Cameras
1 DVR (160GB HDD)
•1 Power Adapter for
LCD Monitor
•1 Power Adapter for DVR
1 10ft RCA to RCA
(male) A/V Wire
1 RCA Female to
3.5mm (male)
A/V Wire
8 x 60ft 4 PIN DIN to
RCA (male)Video/
Power Wires
•Online/ Toll Free Support
•Instruction Manual
•Quick Start Guide
•1 Year Warranty
•8 Power Adapters for Cameras
