5. Ensure that the cameras are plugged in.

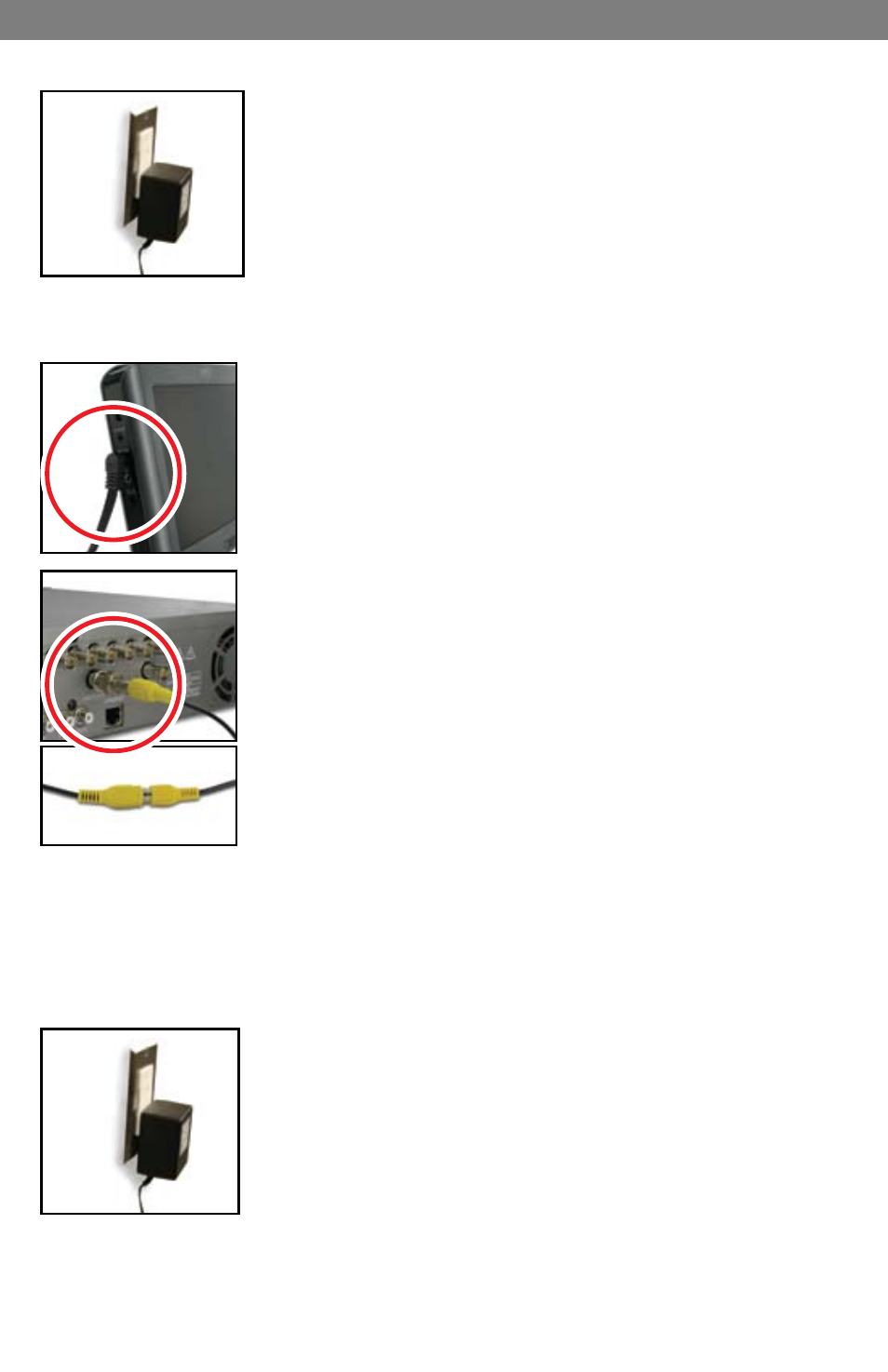

13.2.2 OPTION 2: Connecting To A DVR
1. Plug the “3.5mm to RCA (female) wire” into the
AV1/IN port on the monitor.
2. Plug one end of an RCA wire into the DVR’s
VIDEO OUT port. Plug the other end into the
female end of the “3.5mm to RCA (female) wire.” If
your VIDEO OUT port is a BNC connection (which
is common in DVR units), you will need to attach
the BNC to RCA adapter before connecting the
monitor.
3. If the DVR supports audio, ensure that an RCA
audio cable is connected to the DVR’s AUDIO
OUT, and that the other end (red or white) is
connected to one of the audio inputs (red or white)
on the “3.5mm to RCA (female) wire.” Make sure
that audio is enabled on the DVR.
4. Ensure that the DVR is plugged in and powered on.
