IMPORTANT INFORMATION
While this camera is weatherproof, it is not waterproof. Please do not install it in
areas that receive direct rain or under eaves trough draining spots. Do not cut the
DC power cable of this camera to fit with another power source. Do not cut the
video connection wire to fit with a different video connection type. Any unauthorized
modifications will void your warranty.
14.2 Camera Installation Tips
THINGS TO CONSIDER BEFORE YOU INSTALL YOUR CAMERA
• The camera should be installed between 8 and 13ft above the area to be monitored.
• Ensure there are no obstructions in the camera’s view, to maximize viewing area.
• Ensure that the sunshade is positioned to avoid glare and position camera
away from direct sunlight.
• Decide whether the camera will be wall-mounted or sit on a desk/table top. If
wall mounting, use the mounting hardware in the package. We recommend that
the mounting bracket is secured using the included screws for all installations.
• This camera comes with 60ft of video/power wire. Please make sure that you
mount the cameras no more than 60ft from the TV/monitor/VCR/DVR.
• We recommend using a surge protected power bar to protect the cameras
internal circuitry.
14.2.1 Mounting

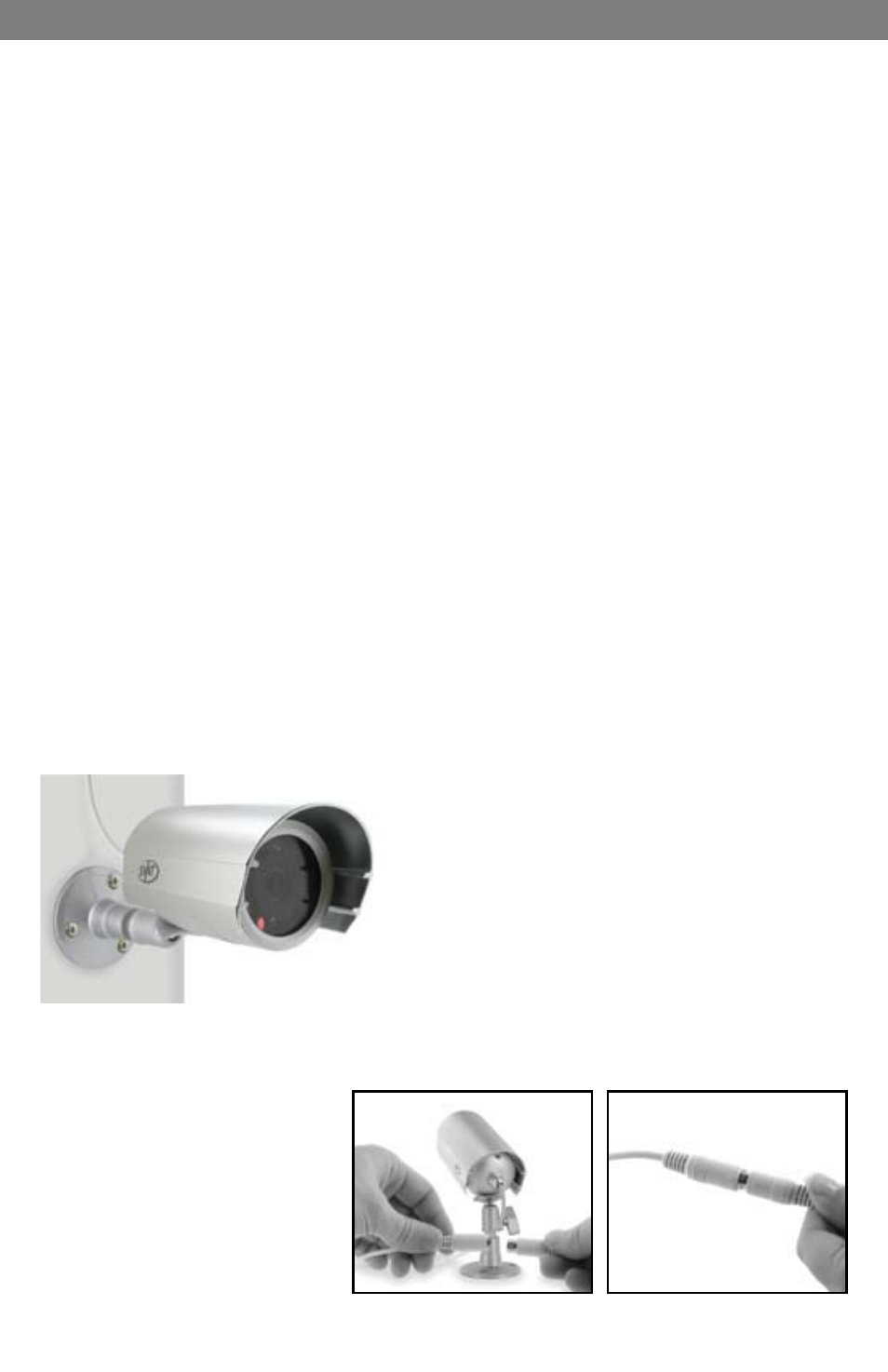

1. Plug the 4 pin DIN female
connection on the camera
into the 4 PIN DIN male
connection on the 60ft
video/power wire.
2. Match the two arrows on top
of both connecting cables.
1 2
1. Screw the mounting bracket into the
camera’s mounting hole, turning
it clockwise.
2. Mount the camera in the desired
location no more than 60 feet from
the TV/Monitor/VCR/DVR unless
you have purchased additional
wiring. You may wall mount or desk
mount these cameras.
3. Adjust cameras to the desired
viewing angles.
