13.1.2 Remote Control

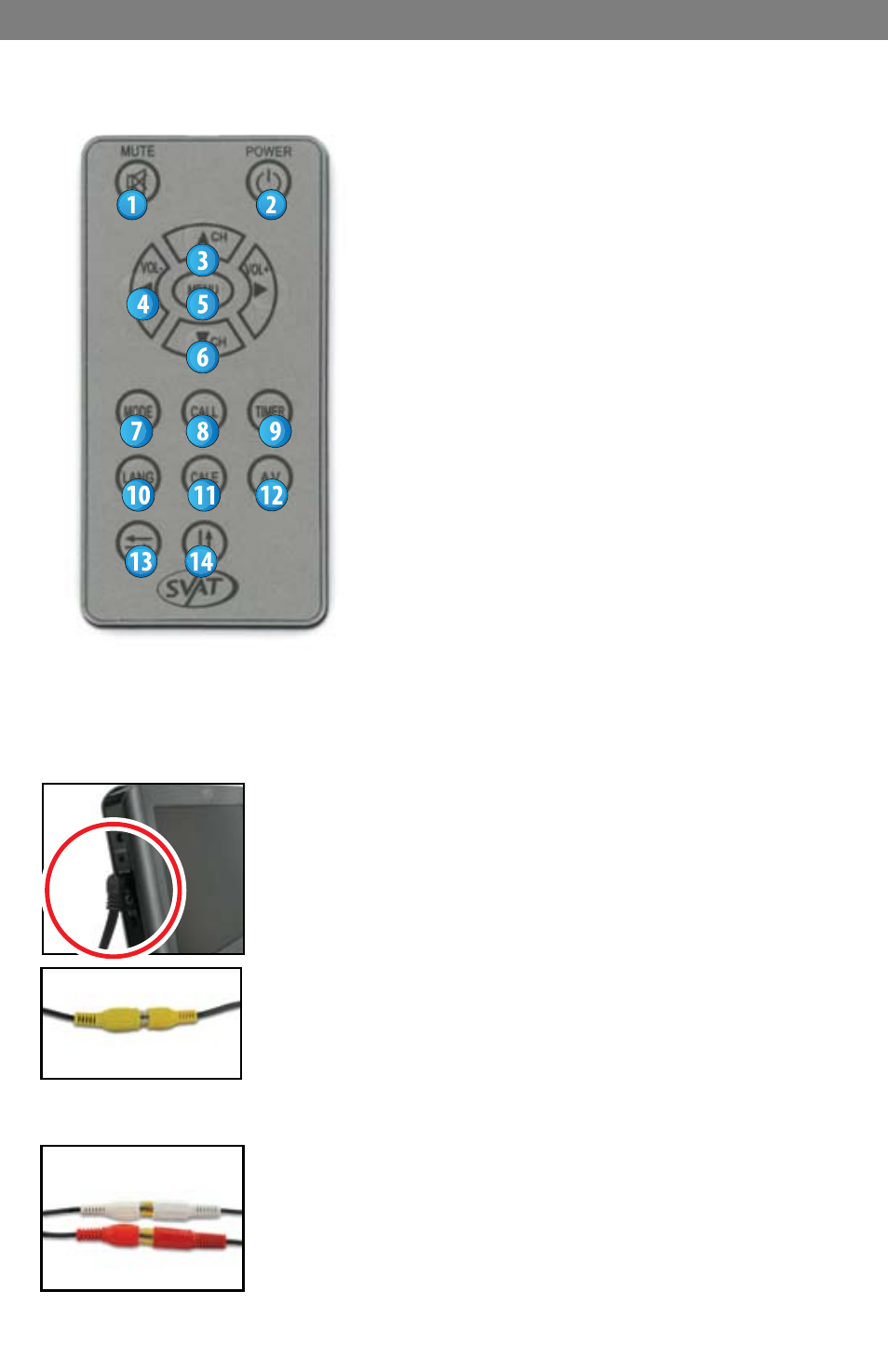

1. Mute
2. Power
3. Channel Up/Up Navigation
4.
Volume
5. Menu - Enter the onscreen menu and
adjust settings
6. Channel Down/Down Navigation
7.
Call – Display the input channel you are
currently viewing
8. Timer – Adjust timer settings
9. Language – Select the desired language
10. Calendar – Enter the onscreen calendar
11. AV – Switch between video inputs
12. Flip Screen Image Vertically
13. Flip Screen Image Horizontally
13.2 Installation
13.2.1 OPTION 1: Connecting To Security Cameras
1. Plug the “3.5mm to RCA (female) wire” into the AV1/
IN port on the monitor.
2. Plug the camera’s RCA output plug into the video input
(yellow) end of the “3.5mm to RCA (female) wire.”
3. Repeat steps 1 and 2 for connecting a second
camera to the AV2/IN port on the monitor.
4. If the camera supports audio, ensure that the
RCA audio cable of the camera (red or white) is
connected to one of the audio inputs (red or white)
on the “3.5mm to RCA (female) wire.”
