HighWire HW400c/2 User Reference Guide Rev 1.0
2.10.1 HW400c/2 Front Panel
The HW400c/2 CompactPCI front panel has custom cut outs with the appropriate
thickness to accommodate two PTMC bezels (with EMC gaskets), two RJ-45
connectors, blue Hot Swap LED, green power LED, and status LEDs. Figure 3
below shows an illustration of the front panel.

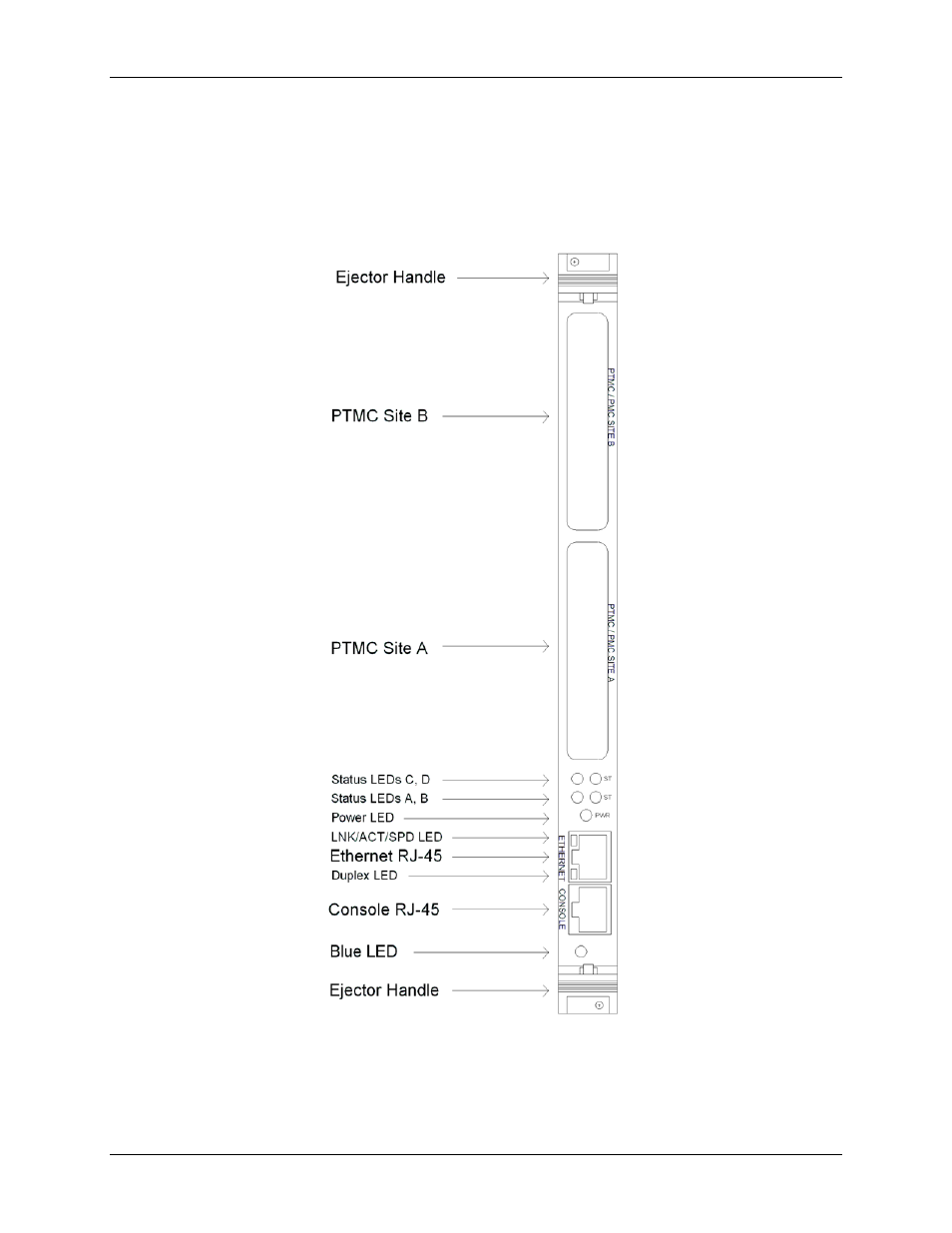

Figure 3. HW400c/2 Front Panel
October 10, 2006
Copyright 2006, SBE, Inc.
Page
9
