Operating the Panel PC 670/870 Release 11/02
3–12 SIMATIC Panel PC 670/870 Start-Up Instructions
3.3.5 TouchInputPC
Call in
Using the TouchInputPC icon on the desktop.
Function
Using the TouchInputPC screen keyboard, it is possible to enter characters
using the touchscreen or the mouse.

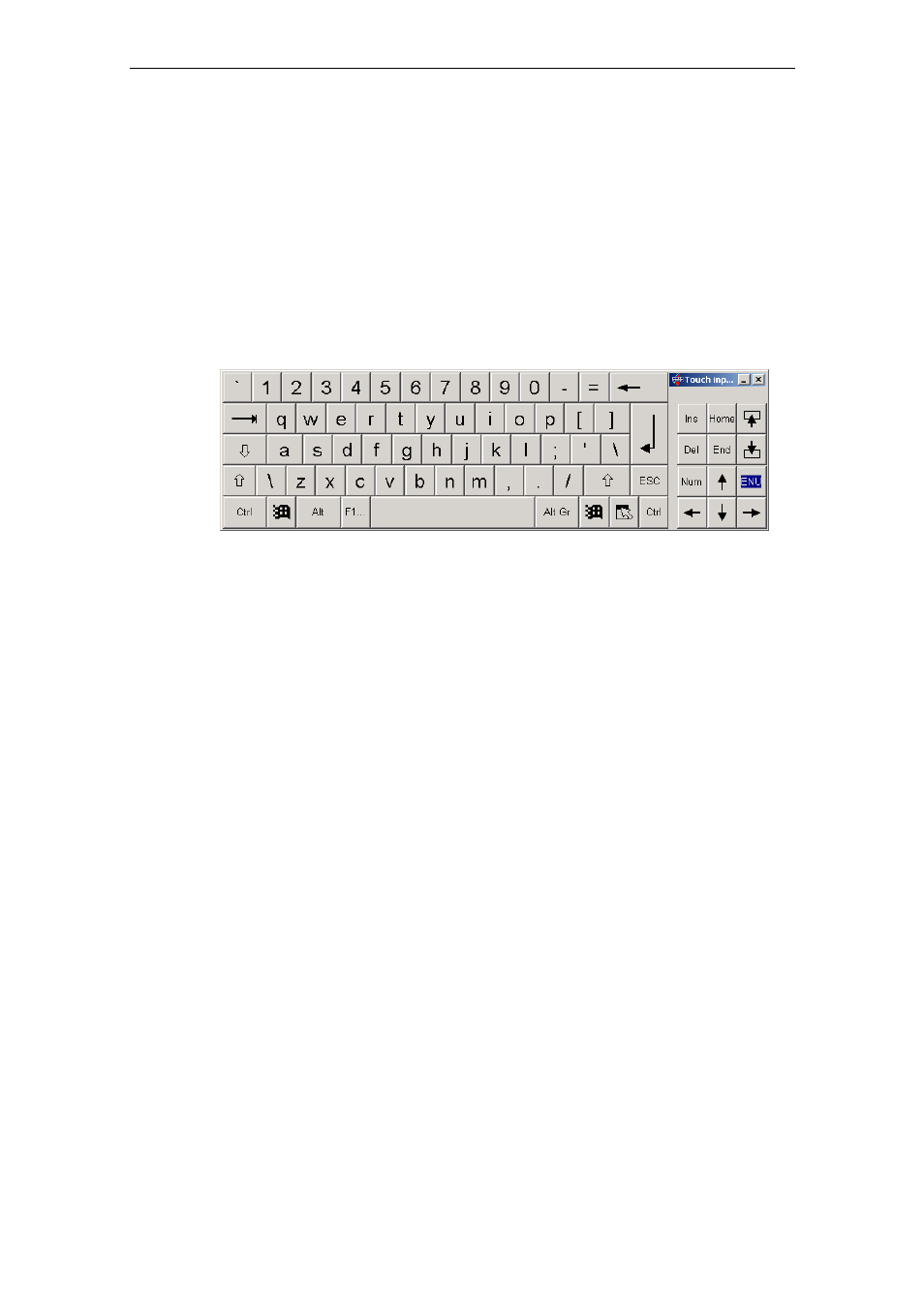

Figure 3–7 Keyboard TouchInputPC
3.3.6 Setdisplay
Call in
c:\drivers.xxx\setdisplay\setdisplay.exe
• In Windows 98, xxx is replaced by:
w98
• In Windows NT, xxx is replaced by:
nt4
• In Windows 2000, xxx is replaced by:
w2k
• In Windows XP, xxx is replaced by:
wxp
Function
Setdisplay can be used to adjust the screen resolution according to the display
size:
• 10"-display: 640 x 480
• 12"-display: 800 x 600
• 15"-display: 1024 x 768
