Simrad EQ60
156
857-164342 / Rev.C
Single frequency, dual beam

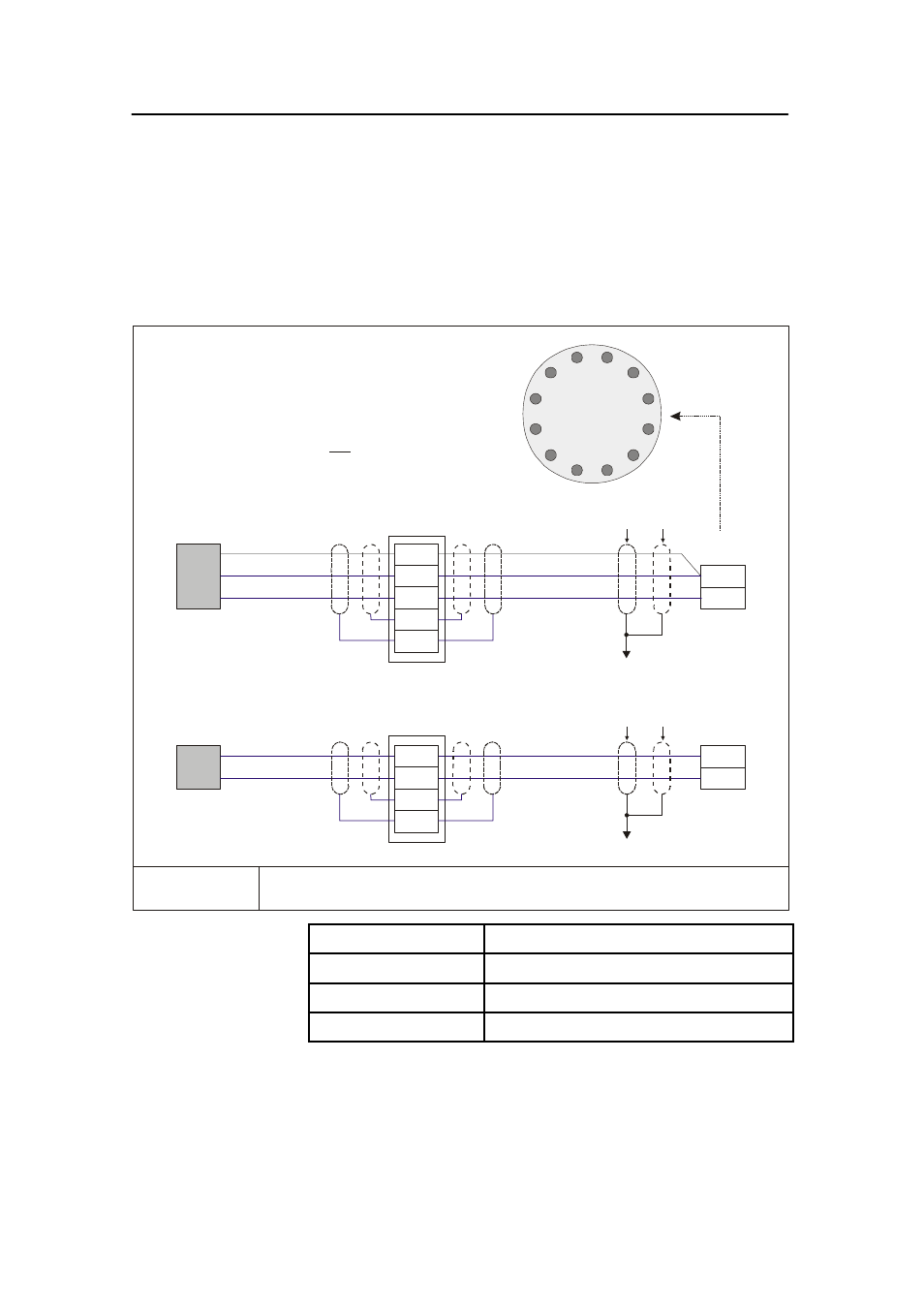

The drawing shows how to connect a single frequency, dual
beam transducer to the system.
Note
Check the transmit power if wide beam is selected in order not
to exceed the power capacity on the transducer.
M
E
F
J
H
D
C
K
L
A
B
N
W802-2 / Rev B Single frequency, dual beam
Single frequency,
dual beam transducer,
wide
Single frequency,
dual beam transducer,
narrow
C
C
D
D
GPT
GPT
Inner
screen
Inner
screen
Outer
screen
Outer
screen
Junction Box (1:1)
Junction Box (1:1)
Note:
1) All transducer cables must be run in
steel conduits. Use flexible conduit closer
to the transceiver.
2) Cable shields must be connected to
the plug housing.
3) Cable shields must
be connected to
ship's ground in the junction box.
not
Plug housing
Plug housing
Conductors 3 x N mm2 or 2 x N mm2
Screen Overall braided
Voltage 600 V
Max.diameter N/A
The conductor diameter “N” depends on the chosen transducer.
Normal value for single beam transducers is 1.5 mm
2 . Special
transducer cable is available from Simrad.
