Remote on/off

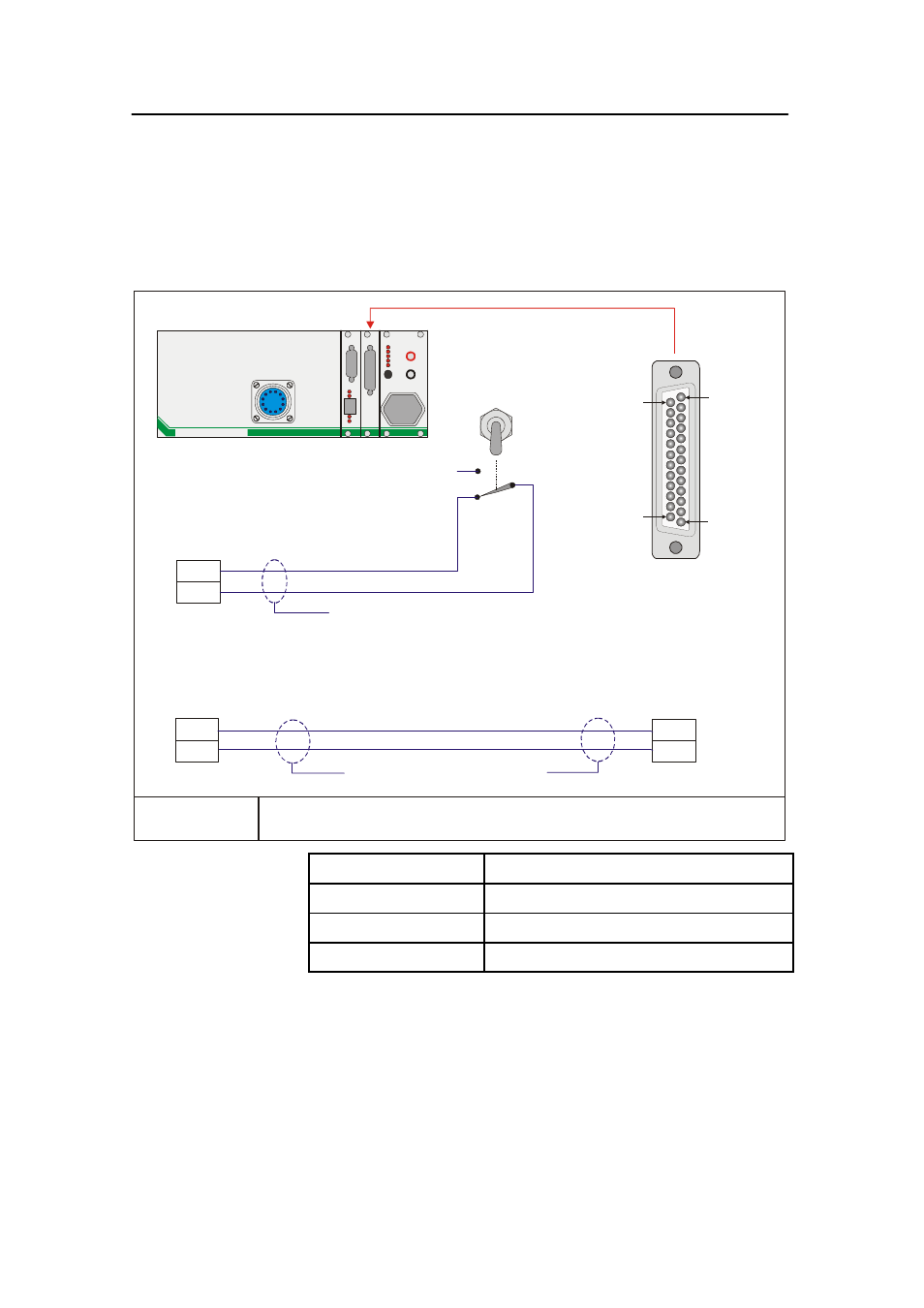

This cable is used to connect a remote on/off switch to the
General Purpose Transceiver (GPT). The switch can be located
in a separate box, or incorporated on a common switch panel.
W620a / Rev C
Remote on/off
23
GPT
25-pin D-sub connector
22
Reset and
Remote on/off
The cable screen is connected
to the plug house.
SIMRAD
GPT
25
14
1
13
Auxiliary
connector
(female)
2
23
1
22
The cable screen is connected
to the plug house.
Remote connector on
HOS 151 and HOS 181
GPT
25-pin D-sub connector
Conductors
2 x 0.22 mm2
Screen
Overall braided
Voltage
60 V
Max.diameter
Set by the plugs
