CLEARANCES: Minimum
to nearest Combustible
Material
Top —
12" (30.5 cm) Minimum.
0" permitted for first 4"
(10.2 cm) along front of
machine.
Back — 0" - 24" (61 cm)
Minimum recommended
for service access.
Sides — 0" Permitted.

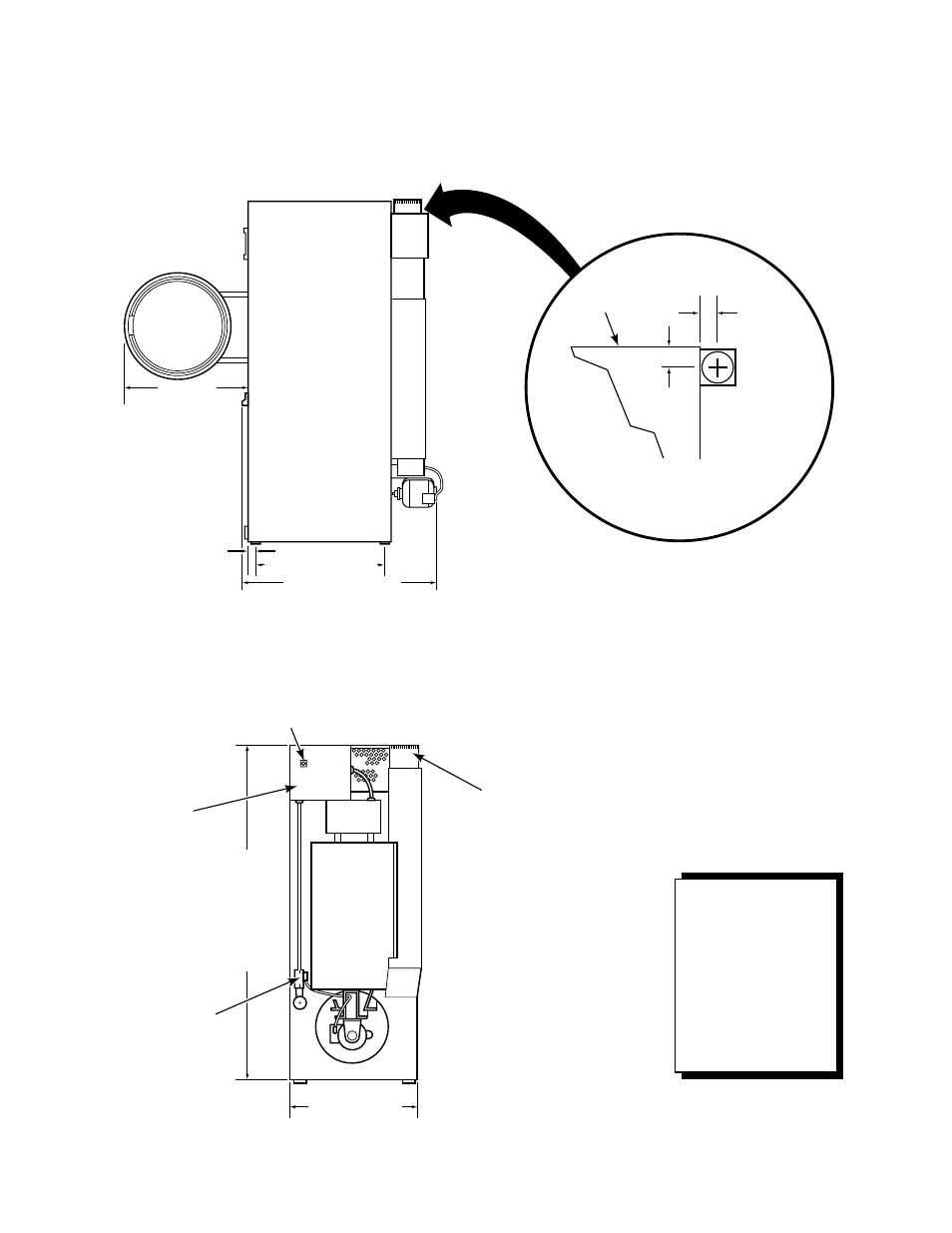

30 Pound (13 kg) Narrow Cabinet Electric Tumbler
3.81 cm
(1-1/2")
SIDE
PANEL 8.59 cm
(3-3/8")
8.59 cm
(3-3/8")
TOP VIEW
OF EXHAUST
T024IE3B
T258IE3A
67.95 cm
(26-3/4")
81.76 cm (32-3/16")
113.98 cm (44-7/8")
T259IE3B
ELECTRICAL
JUNCTION BOX
183.52 cm (72-1/4")
71.12 cm (28")
15.24 cm (6")
DIAMETER
EXHAUST
AIR FLOW
SWITCH
DISCONNECT
SWITCH
