23
M412616

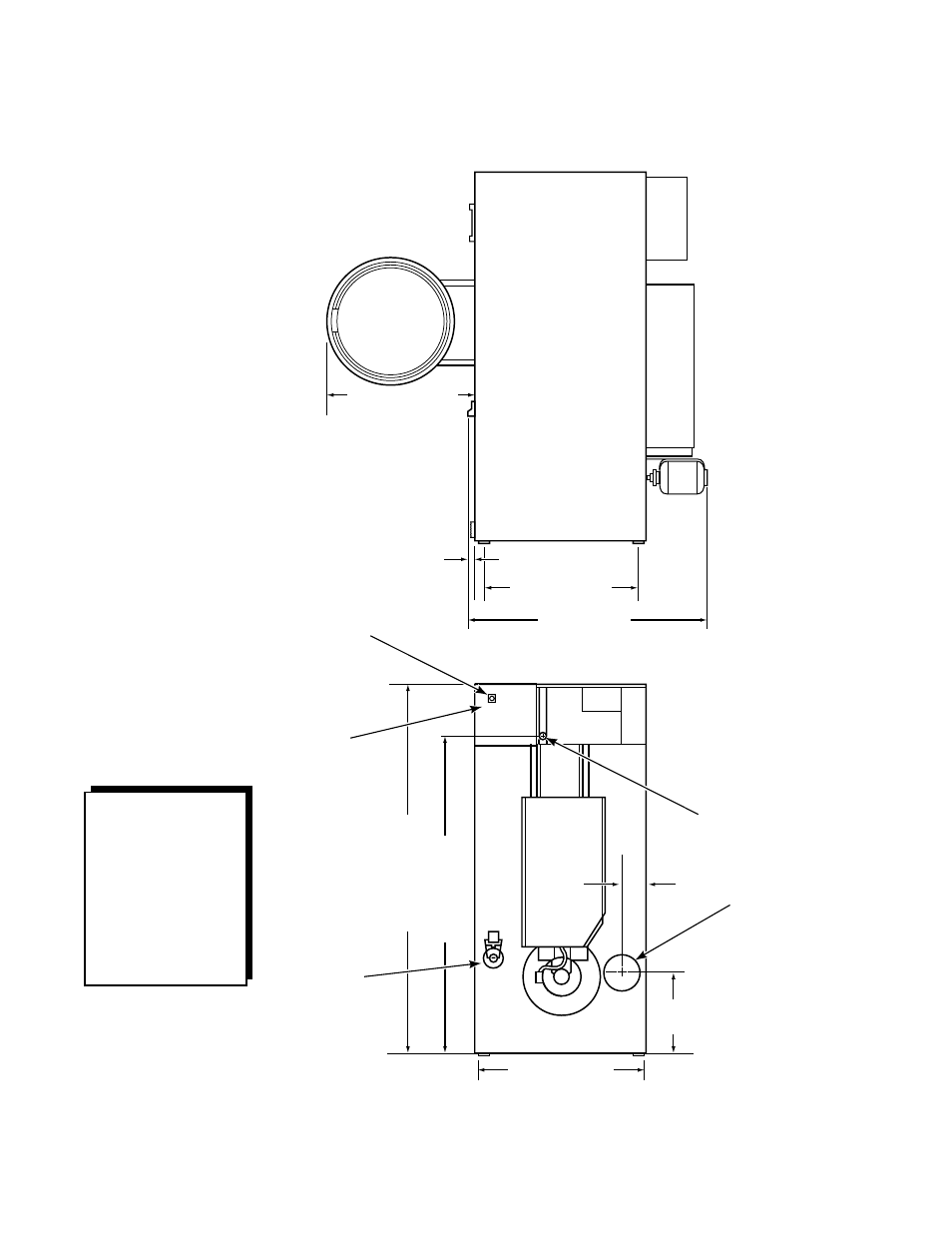

75 Pound (34 kg) Gas Non-reversing Tumblers
CLEARANCES: Minimum
to nearest Combustible
Material
Top — 12" (30.5 cm)
Minimum.
0" permitted for first 4"
(10.2 cm) along front of
machine.
Back — 0" - 24" (61 cm)
Minimum recommended
for service access.
Sides — 0" Permitted.
20.3 cm (8")
DIAMETER
EXHAUST DUCT
THIMBLE
CONNECTION
(Standard Models) AIR FLOW
SWITCH
3.81 cm
(1-1/2")
ELECTRICAL
JUNCTION BOX
GAS CONNECTION
AND
SHUT OFF VALVE
13.65 cm
(5-3/8")
71.75 cm (28-1/4")
97 cm (38-3/16")
134.6 cm (53")
194.6 cm (76-5/8")
167 cm (65-3/4")
98.1 cm (38-5/8")
34 cm
(13-3/8")
T272IE3B
DISCONNECT
SWITCH
