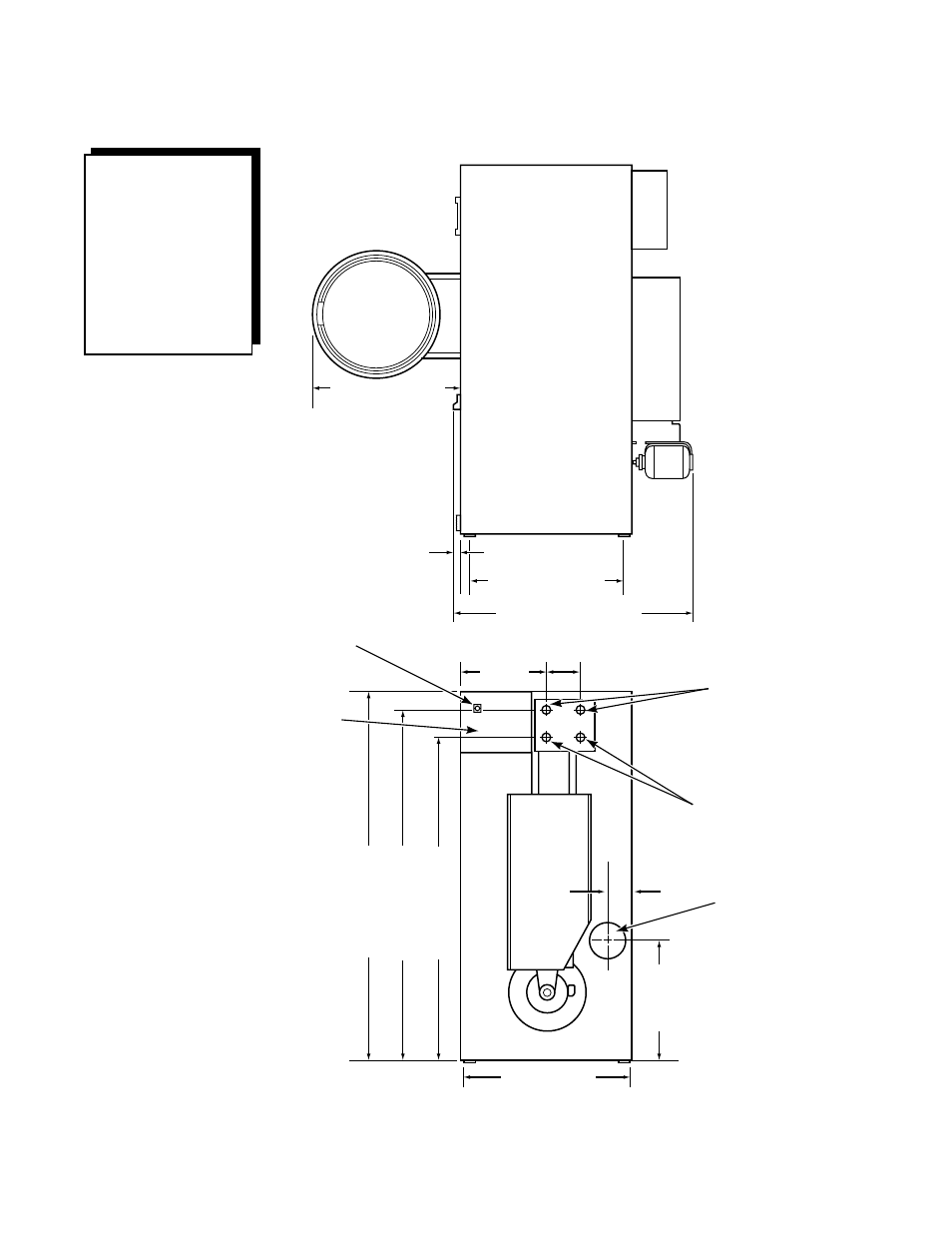

30 Pound (13 kg) Steam Tumbler
CLEARANCES: Minimum
to nearest Combustible
Material
Top — 12" (30.5 cm)
Minimum.
0" permitted for first 4"
(10.2 cm) along front of
machine.
Back — 0" - 24" (61 cm)
Minimum recommended
for service access.
Sides — 0" Permitted.
3.81 cm
(1-1/2")
20.3 cm (8")
DIAMETER
EXHAUST DUCT
THIMBLE
CONNECTION
11.27 cm
(4-7/16")
19.05 cm (7-1/2")
1.9 cm (3/4")
I.D. STEAM
OUTLET
ELECTRICAL
JUNCTION BOX
1.9 cm (3/4") I.D.
STEAM OUTLET
T268IE3B
71.75 cm (28-1/4")
81.75 cm (32-3/16")
114 cm (44-7/8")
(High Pressure Models)
114.4 cm (45-1/32")
(Low Pressure Models)
35.6 cm
(14")
183.5 cm (72-1/4") 174.6 cm (68-3/4") 155.6 cm (61-1/4")
80 cm (31-1/2")
55.56 cm (21-7/8")
DISCONNECT
SWITCH
