Page 48
46
M412616

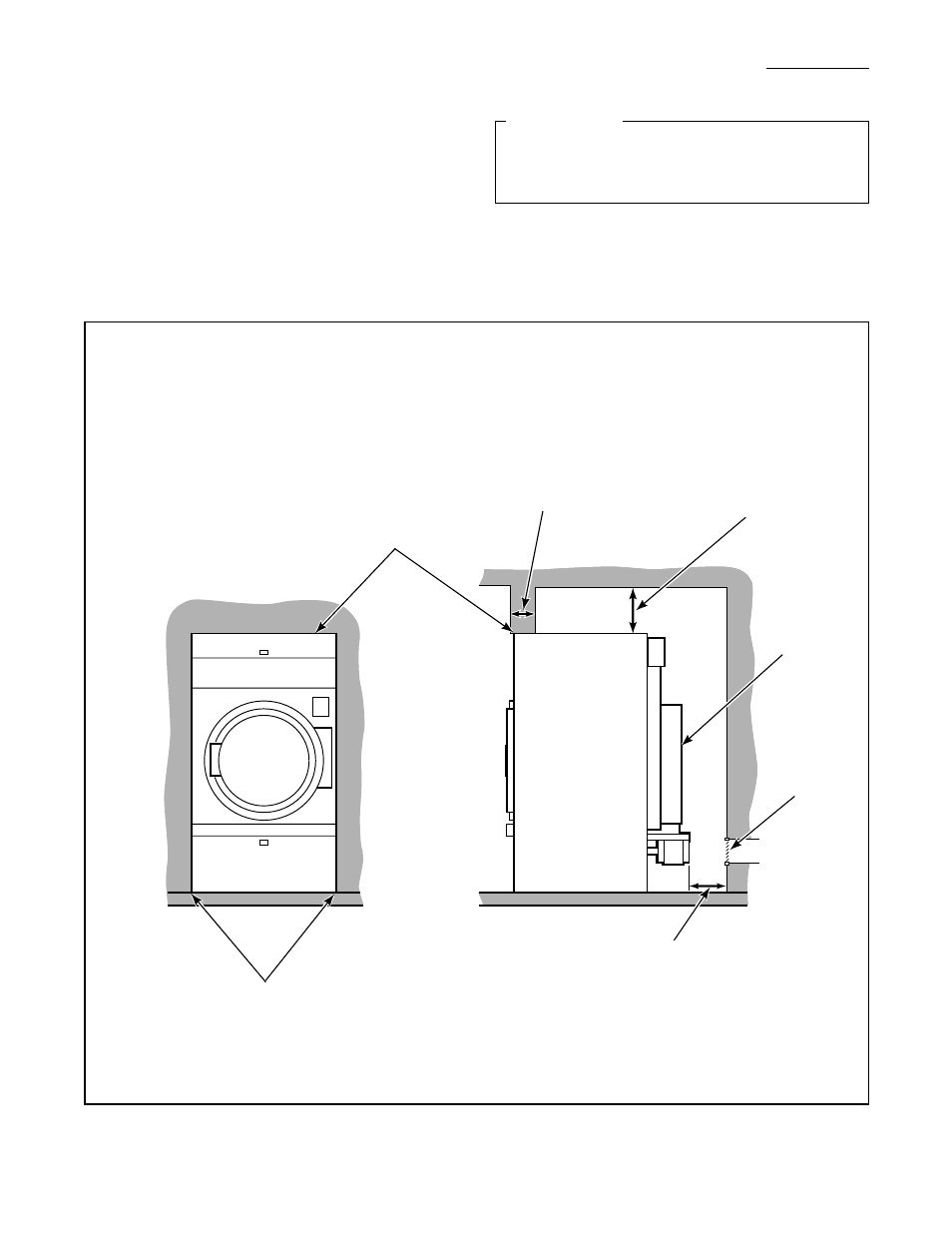

Figure 23
DRYING TUMBLER ENCLOSURE CONSTRUCTION
IMPORTANT: DO NOT block airflow at top rear of
tumbler with laundry, etc. Doing so would prevent
adequate air supply to tumbler’s heat chamber.
A typical tumbler enclosure is shown in
Figure 23.
Note that enclosure does touch tumbler top and side
panels. Note, too, minimum and maximum
dimensions. Be aware that there may be local codes
and ordinances which must be complied with.
0" CLEARANCE
NOTE: Shaded areas
indicate adjacent structure.
0" CLEARANCE
PERMITTED FOR
FIRST 4" (10.16 cm)
4" (10.16 cm)
MAXIMUM
12" (30.5 cm)
MINIMUM
CLEARANCE
GUARD
24" (61 cm)
MINIMUM
36" (91.4 cm)
RECOMMENDED
FOR
MAINTENANCE
PURPOSES
PROVISION
FOR
MAKE-UP
AIR
T038IE3B
NOTICE:
CLEARANCE OF TUMBLER CABINET FROM COMBUSTIBLE
CONSTRUCTION MUST BE A MINIMUM OF 12 INCHES (30.5 cm) AT TOP.
To reduce the risk of serious injury,
install lockable doors to prevent public
access to rear of tumblers.
WARNING
ࡽ
IMPORTANT: Install tumblers with sufficient
clearance for servicing and operating, see
Figure 23.
