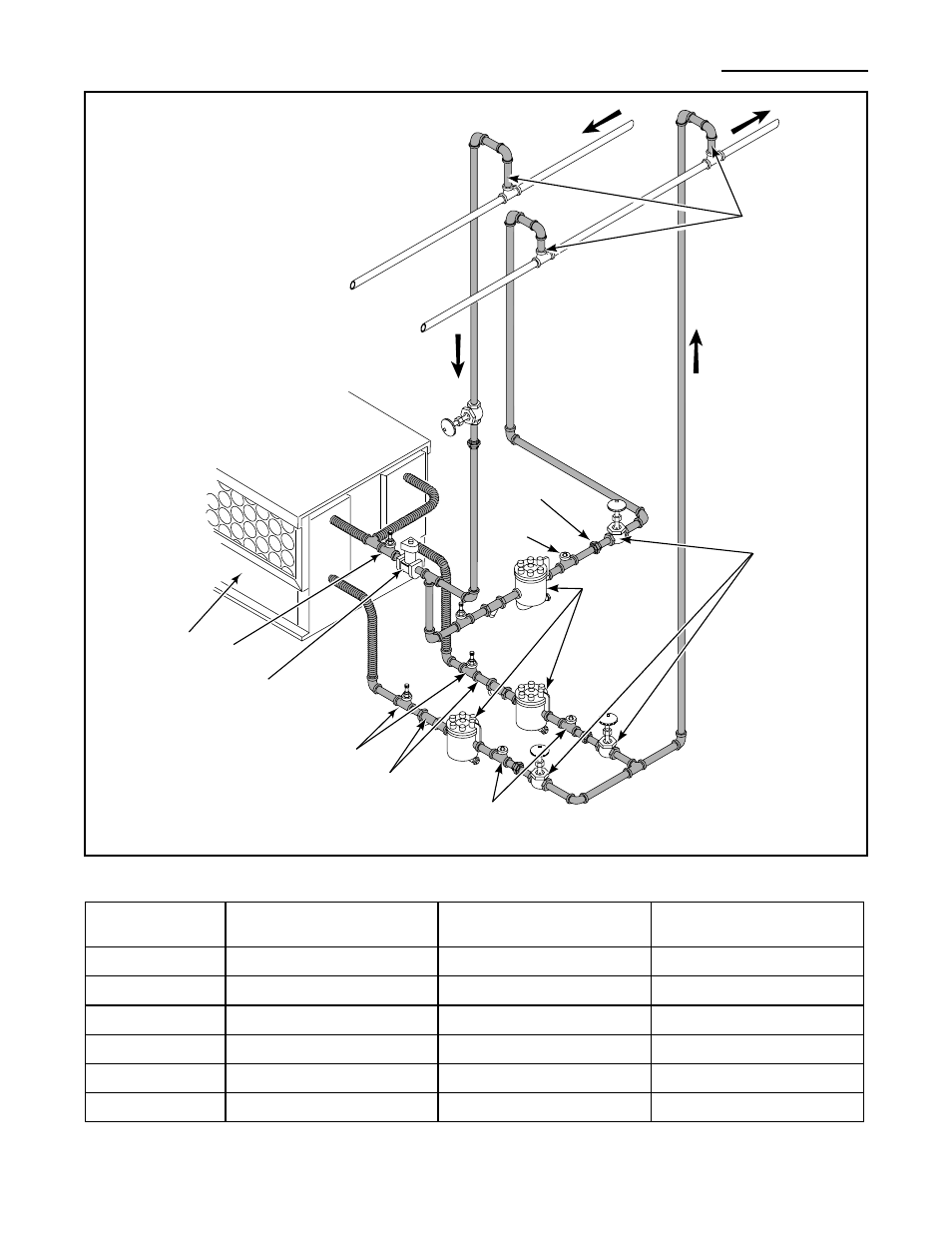

STEAM CONNECTIONS (Steam Drying Tumblers)
Figure 24
Figure 25
TUMBLER
MODEL
STEAM PRESSURE
(PSI)
MINIMUM
PIPE DIAMETER
STEAM TRAP SIZE
(Pounds Condensate/Hour)
30CSL
7-15
3/4" (1.9 cm)
140
30 CSH
80-100
3/4" (1.9 cm)
140
50 CSL
7-15
3/4" (1.9 cm)
140
50 CSH
80-100
3/4" (1.9 cm)
160
75 CSL
7-15
3/4" (1.9 cm)
140
75 CSH
80-100
3/4" (1.9 cm)
160
STEAM
BONNET
SUPPLY
RETURN
GATE
VALVE
TRAP WITH
BUILT-IN
STRAINER
UNION
CHECK
VALVE
CHECK
VALVE
CONDENSATE
RETURN LINE
FROM
SUPPLY LINE
OPTIONAL
VACUUM
BREAKER
SOLENOID
VALVE
(Supplied with
machine)
NOTE: See Figure 25 for sizing
of steam lines. Piping must
also be sized accordingly for
length of runs, and number
of elbows.
RELIEF
VALVE
30.5 cm (12")
RISERS
T262IE3A
