Cylinder door strike, Loading door switch – Speed Queen Drying Tumblers SCB50EG User Manual
Page 57
55
M412616
CYLINDER DOOR STRIKE
The door strike must be adjusted to have sufficient
tension to hold loading door closed against force of
load tumbling against it. Proper adjustment is when
8 to 15 pounds (35.6 N - 66.7 N) pull is required to
open door.
To adjust, open door, loosen jamnut and turn door
strike screw in or out as required. Retighten jamnut.
LOADING DOOR SWITCH
Loading door switch turns off tumbler any time
loading door is opened. To adjust loading door
switch, follow these steps:
1. Start tumbler following operating instructions
which accompanied it.
2.
Slowly open loading door. Cylinder and heating
system should stop when door is open 3" (7.5
cm) plus or minus 1/4" (0.635 cm).
3.
Slowly close loading door. Loading door switch
should close with an audible “click” when loading
door is closed 3" (7.5 cm) plus or minus 1/4"
(0.635 cm).
4.
If loading door switch does not close when
loading door is closed 3" (7.5 cm) plus or minus
1/4" (0.635 cm):
a. Close loading door completely.
b. Loosen lower screw on switch coupler and
rotate switch coupler COUNTERCLOCKWISE
until it stops.
c. Tighten lower screw on switch coupler.
d. Return to step 1 to verify loading door switch
operation.

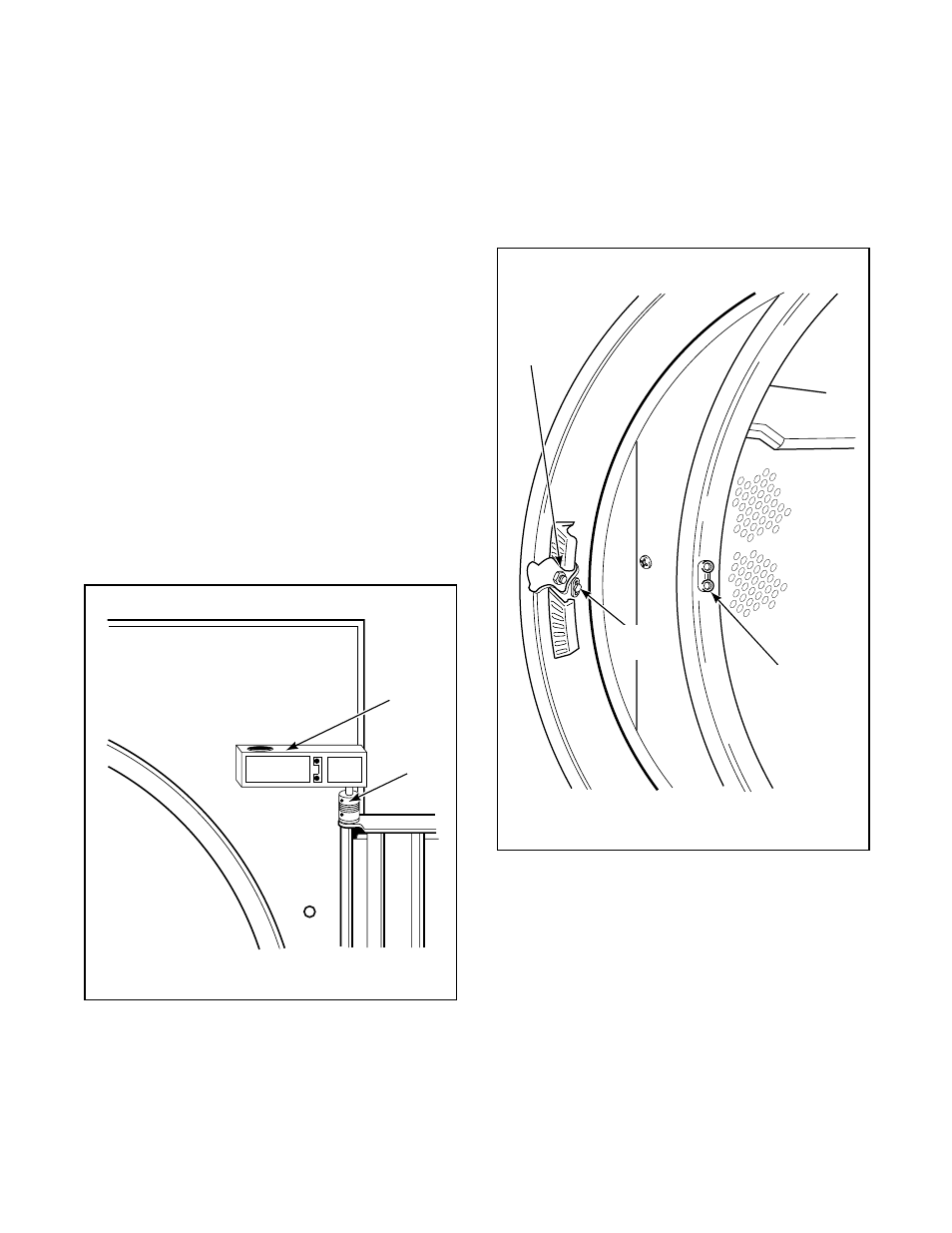

Figure 32
T048IE1A
DOOR
STRIKE
DOOR
LATCH
ACORN
NUT
Figure 31
LOADING
DOOR
SWITCH
SWITCH
COUPLER
T275IE1A
