Speed Queen Drying Tumblers SCB50EG - Manual (Page 36)

34
M412616

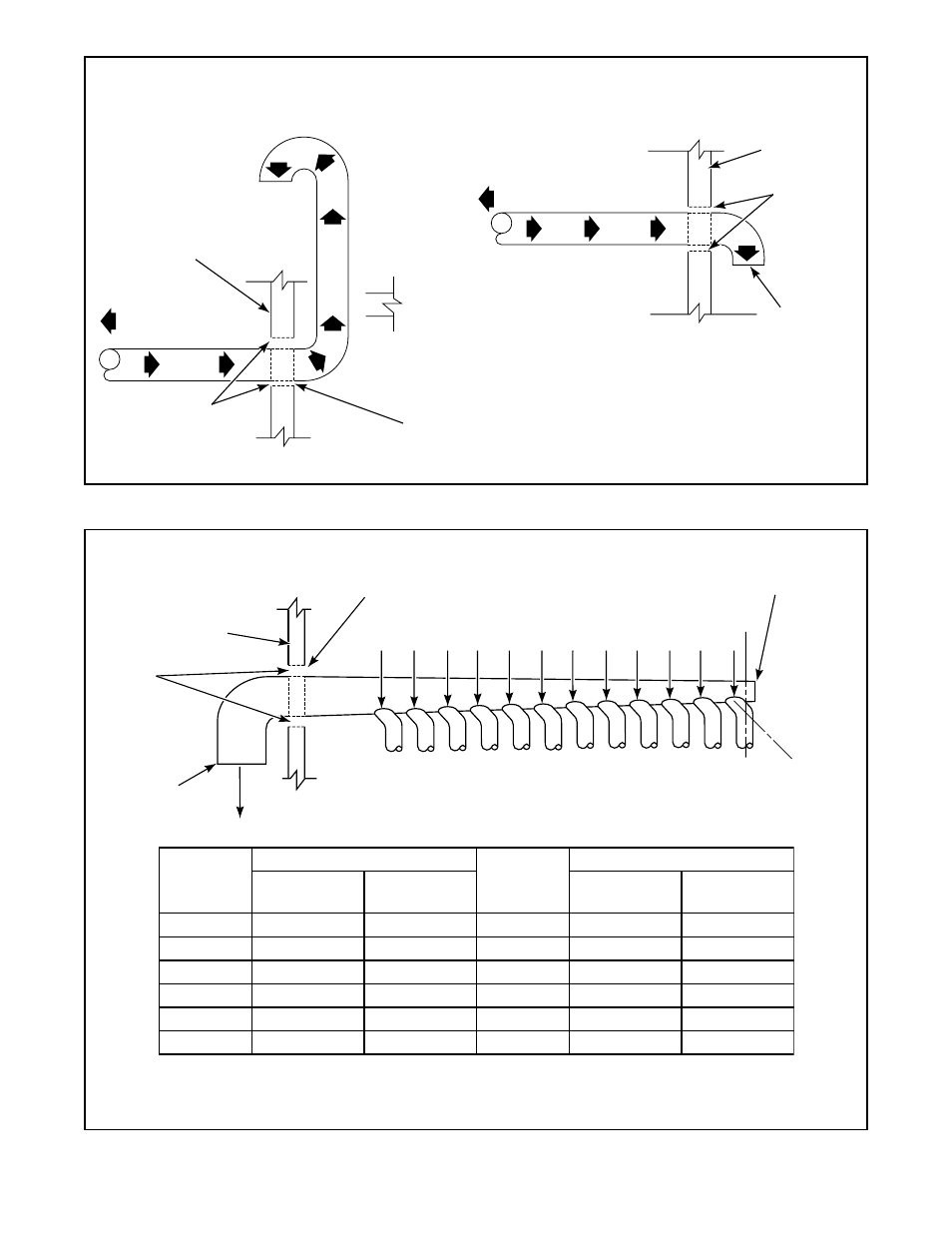

Figure 3
Figure 2
DUCT
STATION
MINIMUM DIAMETER
DUCT
STATION
MINIMUM DIAMETER
*GAS
ELECTRIC
STEAM
*GAS
ELECTRIC
STEAM
A 9" (22.9 cm) 10" (25.4 cm) G 23" (58.4 cm) 26" (66 cm)
B 12" (30.5 cm) 14" (35.6 cm) H 25" (63.5 cm) 28" (71.1 cm)
C 15" (38.1 cm) 17" (43.2 cm) I 26" (66 cm) 30" (76.2 cm)
D 17" (43.2 cm) 20" (50.8 cm) J 27" (68.6 cm) 31" (78 cm)
E 19" (48.3 cm) 22" (55.9 cm) K 29" (73.9 cm) 33" (83.8 cm)
F 21" (53.3 cm) 24" (61 cm) L 30" (76.2 cm) 34" (86.4 cm)
T056IE3B
A L K J I H G F E D C B
45˚
NOTE: WHERE THE EXHAUST DUCT PIERCES A COMBUSTIBLE WALL
OR CEILING, AN OPENING HAVING A DIAMETER FOUR INCHES (10.2 cm)
LARGER THAN THE DIAMETER OF THE EXHAUST DUCT SHALL BE
PROVIDED, AND THE EXHAUST DUCT CENTERED WITHIN THE OPENING.
INSPECTION OR
CLEANOUT COVER
WALL
NO SCREEN
OR CAP
AIR OUT
2" (5.1 cm)
MINIMUM
T030IE3B
VERTICAL EXHAUST INSTALLATION HORIZONTAL EXHAUST INSTALLATION
NOTE: WHERE THE EXHAUST DUCT PIERCES A COMBUSTIBLE WALL
OR CEILING, AN OPENING HAVING A DIAMETER FOUR INCHES (10.2 cm)
LARGER THAN THE DIAMETER OF THE EXHAUST DUCT SHALL BE
PROVIDED, AND THE EXHAUST DUCT CENTERED WITHIN THE OPENING.
WALL
CONNECT TO
TUMBLER
2" (5.1 cm)
MINIMUM
CONNECT TO
TUMBLER
EXHAUST AIR FLOW
MAXIMUM LENGTH OF
DUCT 14 FEET
(4.3 m)
WALL EXHAUST
OUTLET
NO SCREEN
OR CAP
2" (5.1 cm)
MINIMUM
