Simrad AP25 Autopilot
92
20221495F
If IS15 Expander is used in the instrument system, the NMEA
connections are made to this unit. See Figure 3-27.

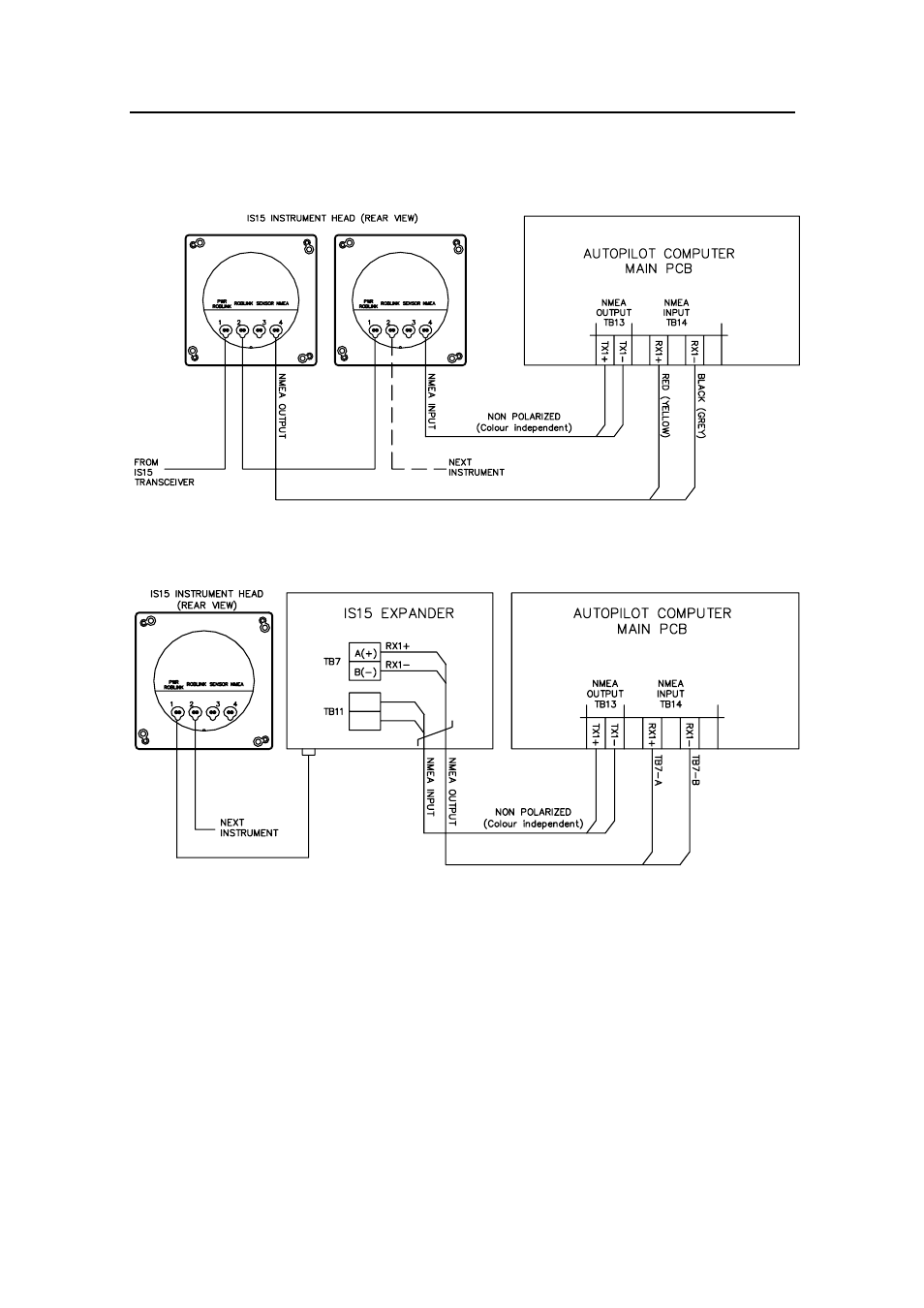

Figure 3-26 IS15 Instruments / Autopilot computer connection
Figure 3-27 IS15 Expander / Autopilot computer connection
