5.6 Exchange of software programme
Autopilot Computer

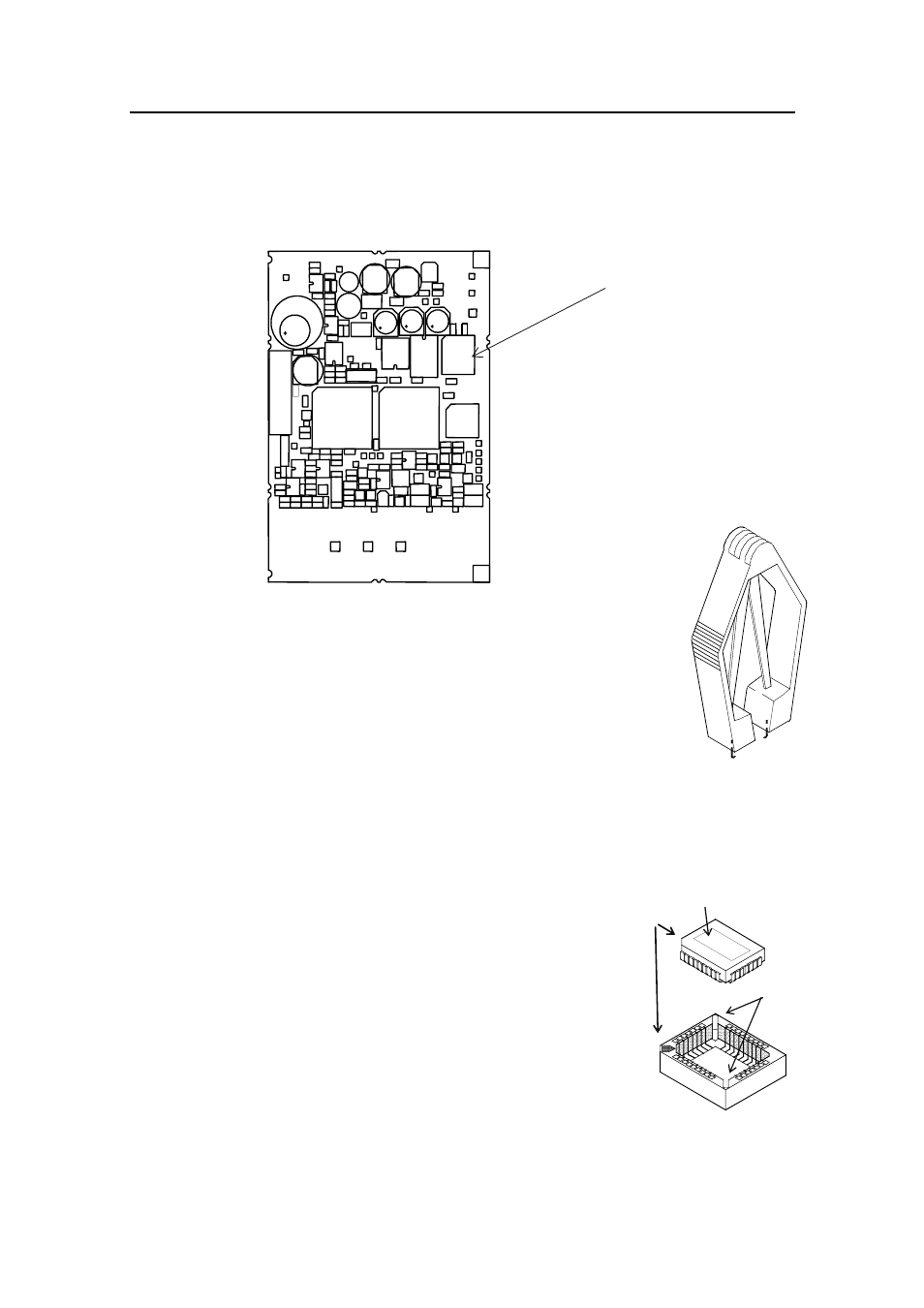

Figure 5-1 AC10/AC20/AC40 Main PC-Board
• Remove the EPROM from the socket by means
of the special extraction tool (p/n 44139806).
• Insert the tool by pressing the two grip pins
down into the two slots in the corners of the
socket.
• Squeeze the tool and pull out the EPROM.
• The identification tag indicates:
- Name of unit
- Part number
- Software version
Caution ! When inserting a new EPROM, make
sure the cut-off corner matches with the
one in the socket. Press it gently into the
socket.
EPROM for AC10, AC20 and AC40
Autopilot Computers:
P/N 22088462
After change of EPROM, perform a master
reset as described on page 132.
Autopilot
Computer
EPROM
Cut-off
corner
Identification
tag
Slots
