Simrad AP25 Autopilot
60
20221495F
Layline steering (RACING)
‘Layline steering’ can only be enabled or disabled when ‘Wind
setup’ is set to ‘RACING’. It is enabled in the ‘NORMAL’ sub-
mode.
Layline steering is useful when navigating. It will use the Cross
Track Error (XTE) from the navigator to keep the boat on the
track line. If the XTE from the navigator exceeds 0.15 nm, the
autopilot will calculate its own layline towards the waypoint and
follow that. Layline steering is not active when turning, tacking
or gybing.
‘XTE’ will be displayed in the upper left corner under the mode
index when layline steering is active.
Range: Enabled/Disabled
Default: Enabled
2.26 INFO menu
A number of instrument pages are available under each mode
screen if the required NMEA 0183 sentences are provided (see
paragraph 8.1) or the information is available on SimNet (page
131). The INFO menu is accessed by a single press on the
INFO/SETUP button.

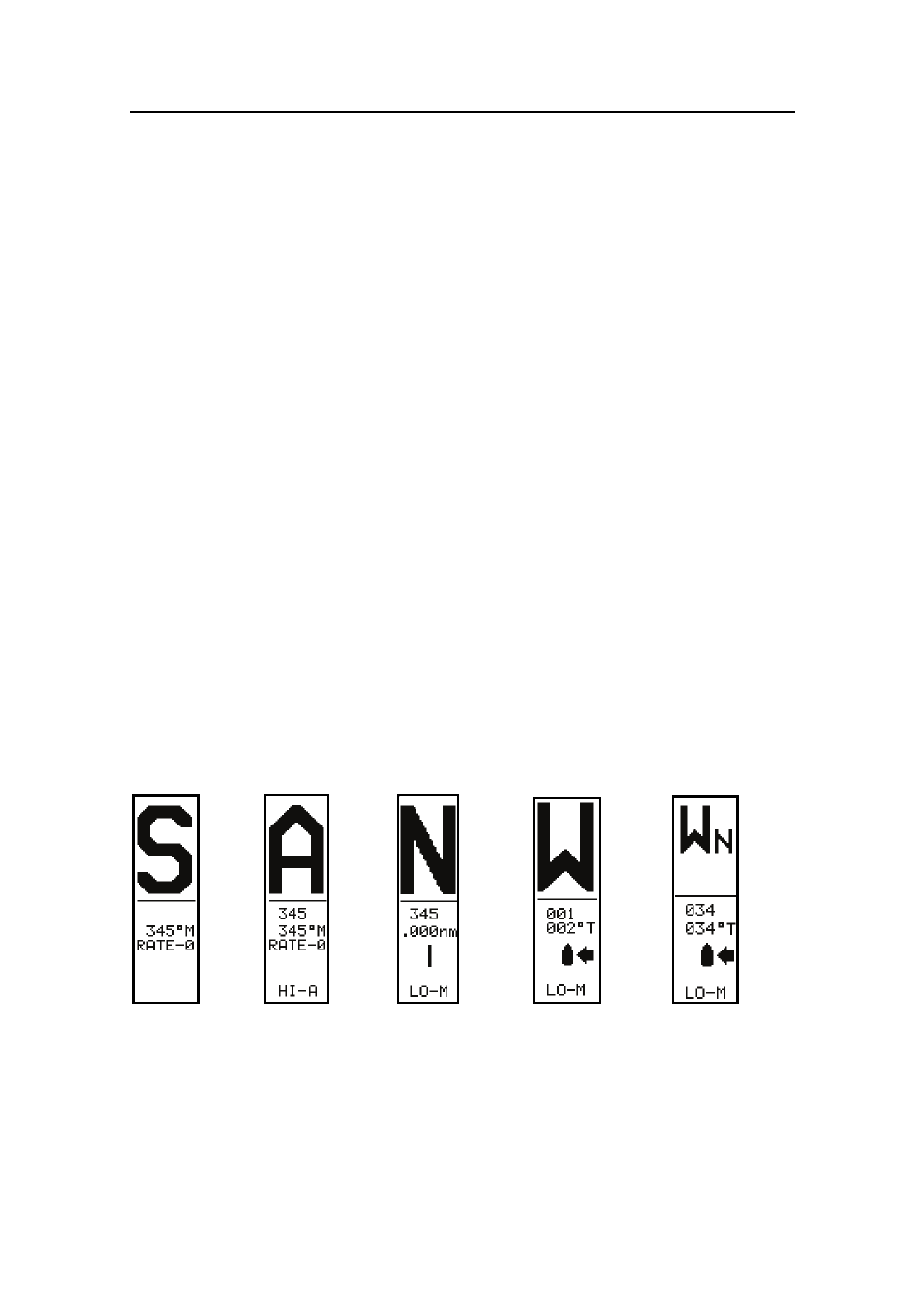

Left hand side of the screen will show the following information
depending on mode:
Standby
mode
Heading
Heading
source Auto mode
Set course
Heading
Heading source
HI parameters, set
automatically Nav/NoDrift
mode
Course to steer.
Cross Track
error (XTE)
LO parameters
set manually Wind mode
Set true wind
angle
Actual wind
angle
LO
parameters. Wind
N
mode
Set true wind
angle
Actual wind
angle
LO parameters.
