Simrad AP25 Autopilot
152
20221495F
8.4 RC36 Rate compass
Dimensions: ............................... See Figure 8-4
Weight: ...................................... 0,9 kg (2,0 lbs)
Supply and interface:................. RobNet2
Power consumption: .................. 0,9 watts
Automatic Performance:
Calibration: ....................... Automatically activated by control head
Gain compensation: .......... Automatically adjusted continuously
Rate sensor stabilized heading output
Accuracy:................................... <1.25° (rms)
Repeatability:............................. <0.2° (rms)
Roll/Pitch:..................................
± 35 degrees
Cable supplied: .......................... 15 m TP shielded cable
Temperature range:
Operation: ......................... 0 to +55 °C (+32 to + 130 °F)
Storage: ............................. –30 to +70 °C (–22 to +158 °F)
Environmental Protection:......... IP56
Mounting: .................................. Deck or bulkhead
Material:..................................... White ABS

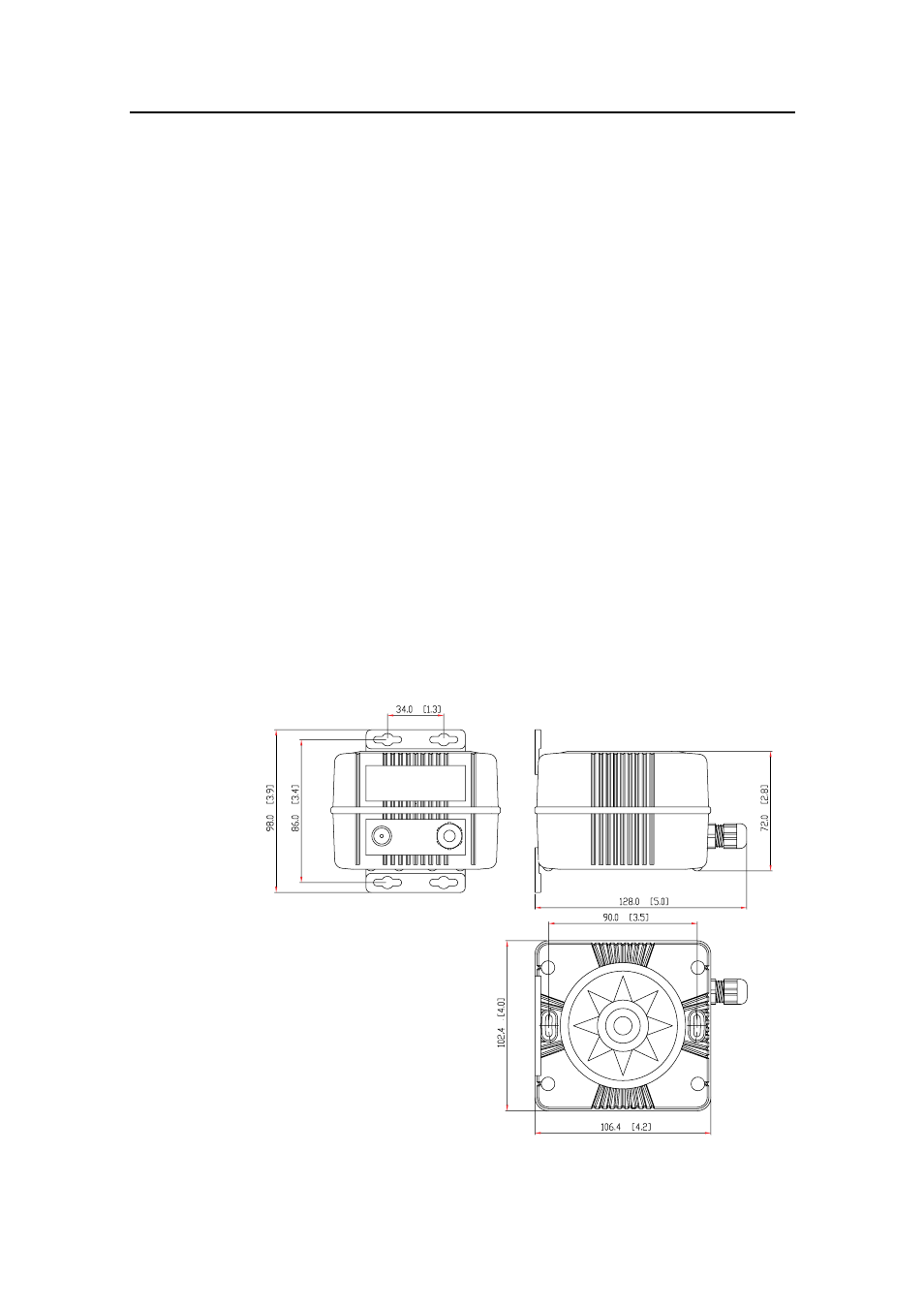

Figure 8-4 RC36 Rate Compass - Dimensions
