8.9 FU25 Steering Lever
Dimensions: ............................... See Figure 8-9
Handle can be mounted pointing upwards or downwards.
Weight: ...................................... 1.2 kg (2.6 lbs.) including cable
Material:..................................... Polyacetal (POM)
Environmental Protection:......... IP56
Power consumption: ................. 3W
Safe distance to compass:.......... 0.15 m (0.5 ft.)
Temperature:
Operating: ......................... –25 to +55°C (–13 to +130°F)
Storage: ............................. –30 to +70°C (–22 to +158°F)
Cable:......................................... 10 m (33 ft.) cable with three twisted pairs of
wire run through a cable gland.
(cable gland can alternatively be mounted on back cover; see Figure 8-9)
Max. rudder command angle:.... Equal to physical stop minus 2°
Autopilot interface:.................... Via proprietary Robnet2™ bus
Accuracy:................................... ±1° within ±40° of mid-position at 25°C

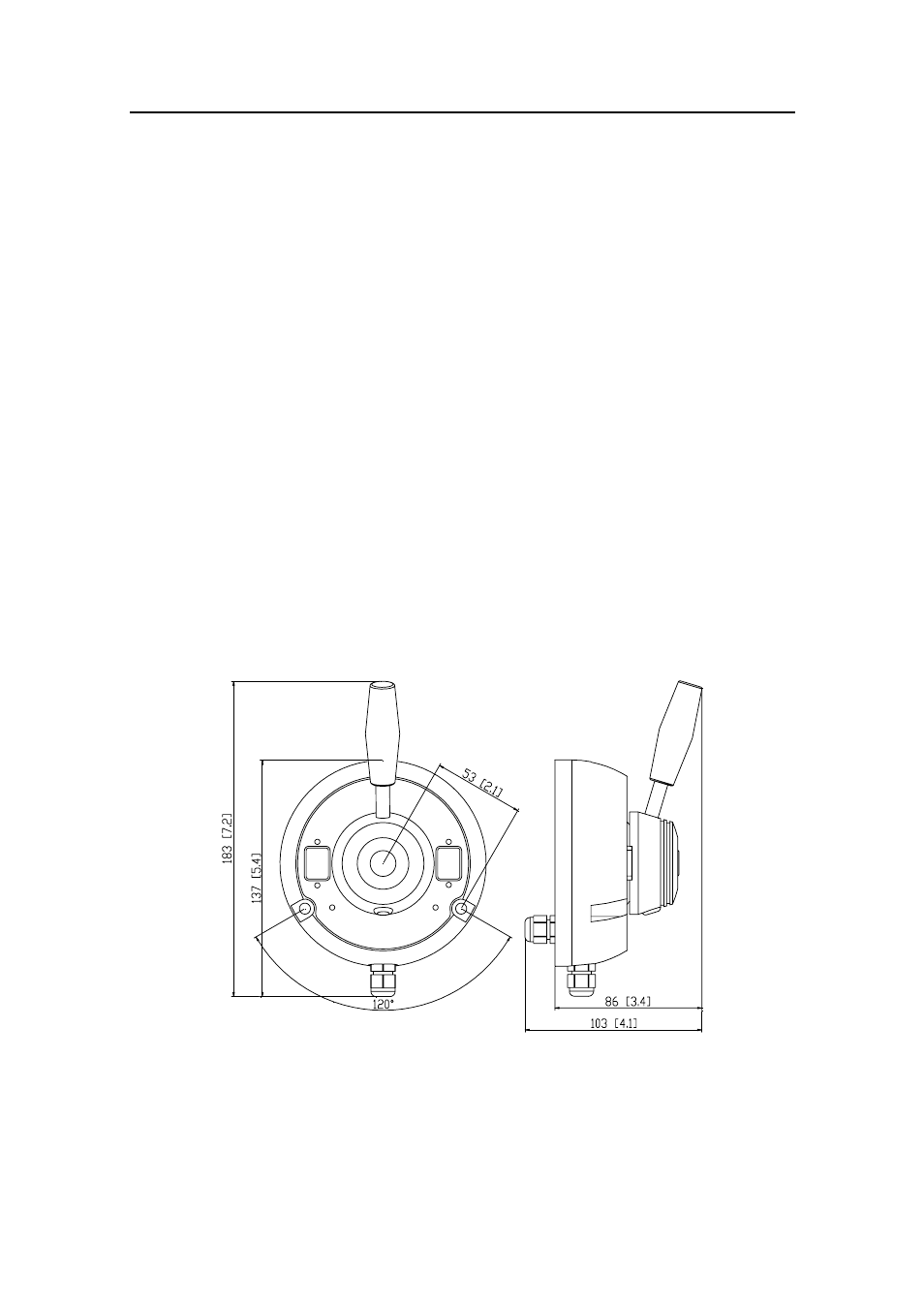

Figure 8-9 FU25 Steering Lever Dimensions
