2-28
X8SIL/X8SIL-F User's Manual

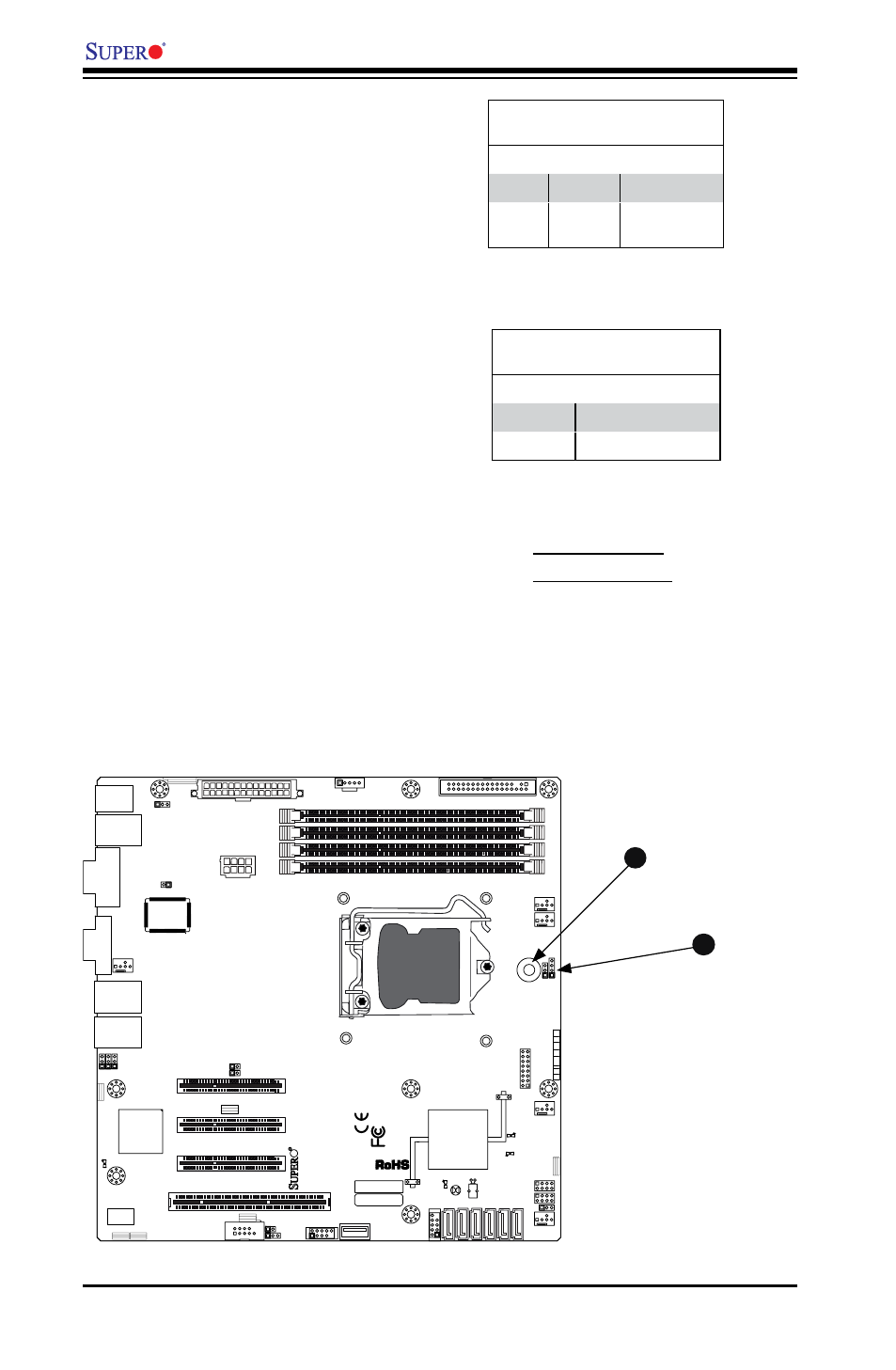

Internal Buzzer
The Internal Buzzer (SPKR1) can be
used to provide audible indications for
various beep codes. See the table on
the right for pin definitions. Refer to
the layout below for the locations of
the Internal Buzzer.
A. Internal Buzzer
B. Speaker Header
Internal Buzzer
Pin Definition
Pin# Definitions
Pin 1 Pos. (+) Beep In
Pin 2 Neg. (-) Alarm
Speaker
Speaker
On the JD1 header, Pins 3~4 are used
for internal speaker. Close Pins 3~4
with a cap to use the onboard speaker.
If you wish to use an external speaker,
close Pins 1~4 with a cable. See the
table on the right for pin definitions.
Speaker Connector
Pin Definitions
Pin Setting Definition
Pins 3~4 Internal Speaker
Pins1~4 External Speaker
A
B
MAC CODE
JPI2
C
JF
1
JPW1
U2 6
J8
J6
J5
J1 4 1
J1 3
U6 1
T-SGPIO1
T-
SGPIO2
J24
JLAN2
JLAN1
SPKR
1
JBT1
1
JI2C1 1
JI2C2 1
JL
1
LE4
LE
2
LE3
LE
7
JPT1
1
JP
B
JLED1
1
1
JPUSB1
1
JPL1
1
JPL2
JPG1
JD1
1
FAN2
FAN1
FAN5
1
FAN4
FAN3
J16
PCI1
U2
BAR CODE
1-2:ENABLE 2-3:DISABLE
JPL2:LAN2 JPL1:LAN1
2-3:DISABLE 1-2:ENABLE
JPB:BMC
JPI2C:PWR I2C
JD1:Buzzer/Speaker
COM2
FLOPPY
D D R3
1 06
6/
13
33
U
D IM
M
/R
D
IM
M
re
qu
ire
d
VG
A
CO
M1
USB4
JBT1:CMOS CLEAR
SLOT7 PCI-E X8 GEN2
JPT1:T
PM
JL1
LAN1
JPUSB1:B/P USB WAKE UP 1-2:ENABLE 2-3:DISABLE
DIMM2B
DIMM2A
USB 10/11
JI2C1/JI2C2
USB2/3
SLOT6 PCI-E X8 GEN2
2-3:Disable 1-2:Enable
JAR:
PSU ALARM RS
T
CPU
JLED1:
Po
wer LE
D
OFF:Disable ON:Enable
2-3:Disable 1-2:Enable
RE
V: 1.00
X8SIL
DESIGNED IN US
A
2-3:DISABL
E
1-2:ENABLE
:CHASSIS INTRUSION
JF 1 ON
LE D
LED PW R
HD D
NIC1
NIC2
OH/F
F
X
RS T
PW R
I-SATA3
I-SATA4 I-SATA2
I-SATA1
I-SATA0
I-SATA5
SLOT5 PCI-E X4 on X8
SLOT4 PCI 33MHZ
KB/MOUSE
DIMM1B
JPG1: VGA
DIMM1A
JAR
