Chapter 2: Installation

2-3

Installing the Heatsinks

We recommend the use of active type heatsinks (except for 1U systems). Use any

onboard fan header for the CPU's heatsink fan. To install the heatsink, please follow

the installation instructions included with your heatsink package (not included).

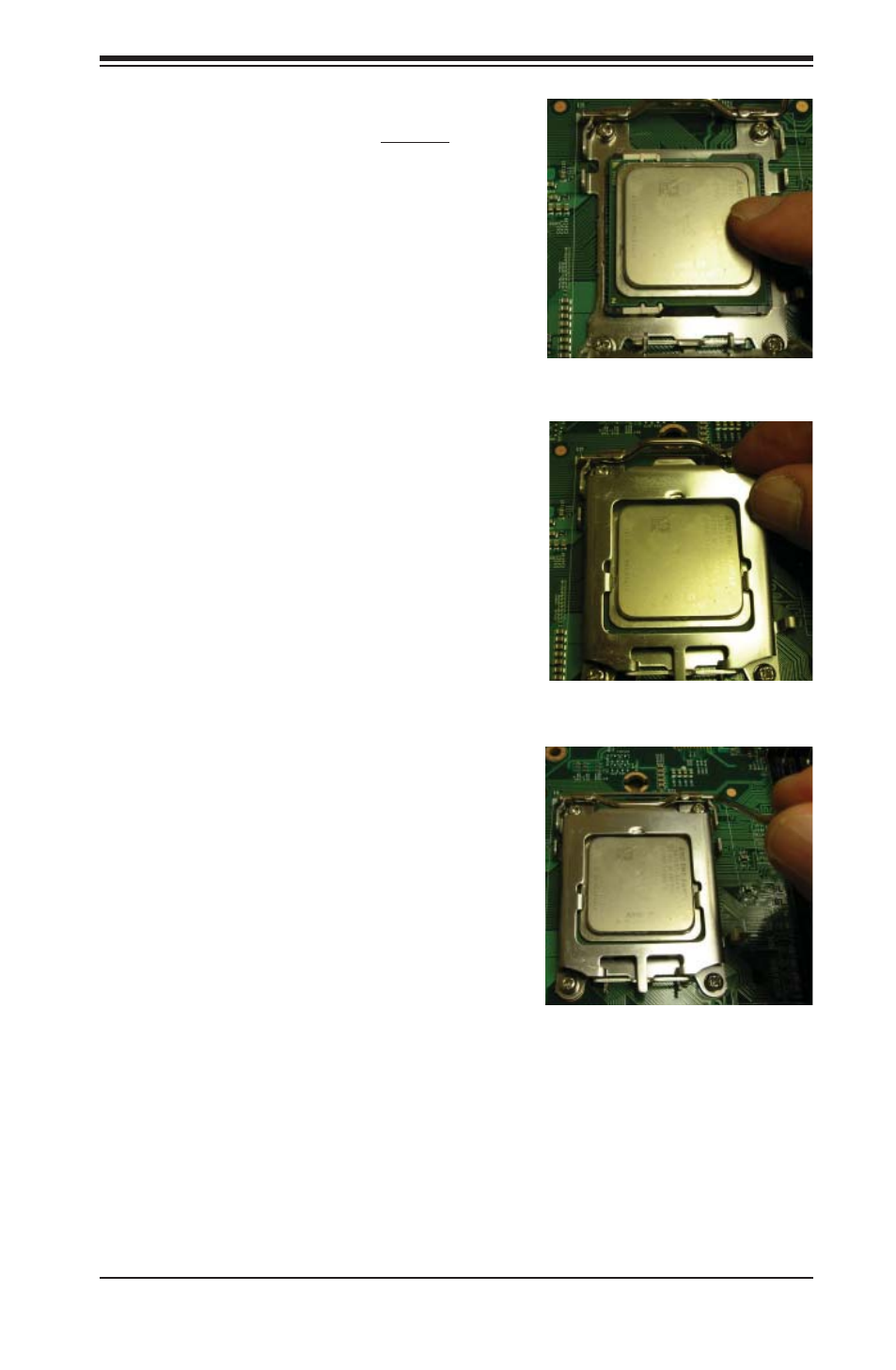

Align pin 1 of the CPU with pin 1 of

3.

the socket. Once aligned, carefully

place the CPU into the socket. Do

not drop the CPU on the socket,

move the CPU horizontally or

vertically or rub the CPU against

the socket or against any pins of

the socket, which may damage the

CPU and/or the socket.

With the CPU inserted into the

4.

socket, inspect the four corners

of the CPU to make sure that it is

properly installed and fl ush with the

socket. Then, gently lower the sil-

ver CPU retention plate into place.

Carefully press the CPU socket le-

5.

ver down until it locks into its reten-

tion tab. For a dual-CPU system,

repeat these steps to install another

CPU into the CPU#2 socket (and

into CPU#2, #3 and #4 sockets for

a quad-CPU confi guration).

Note: in single and dual-CPU confi gura-

tions, memory must be installed in the

DIMM slots associated with the installed

CPU(s). Memory is limited to a maximum

of 32 for single CPU and 64 GB for dual

CPU confi gurations.
