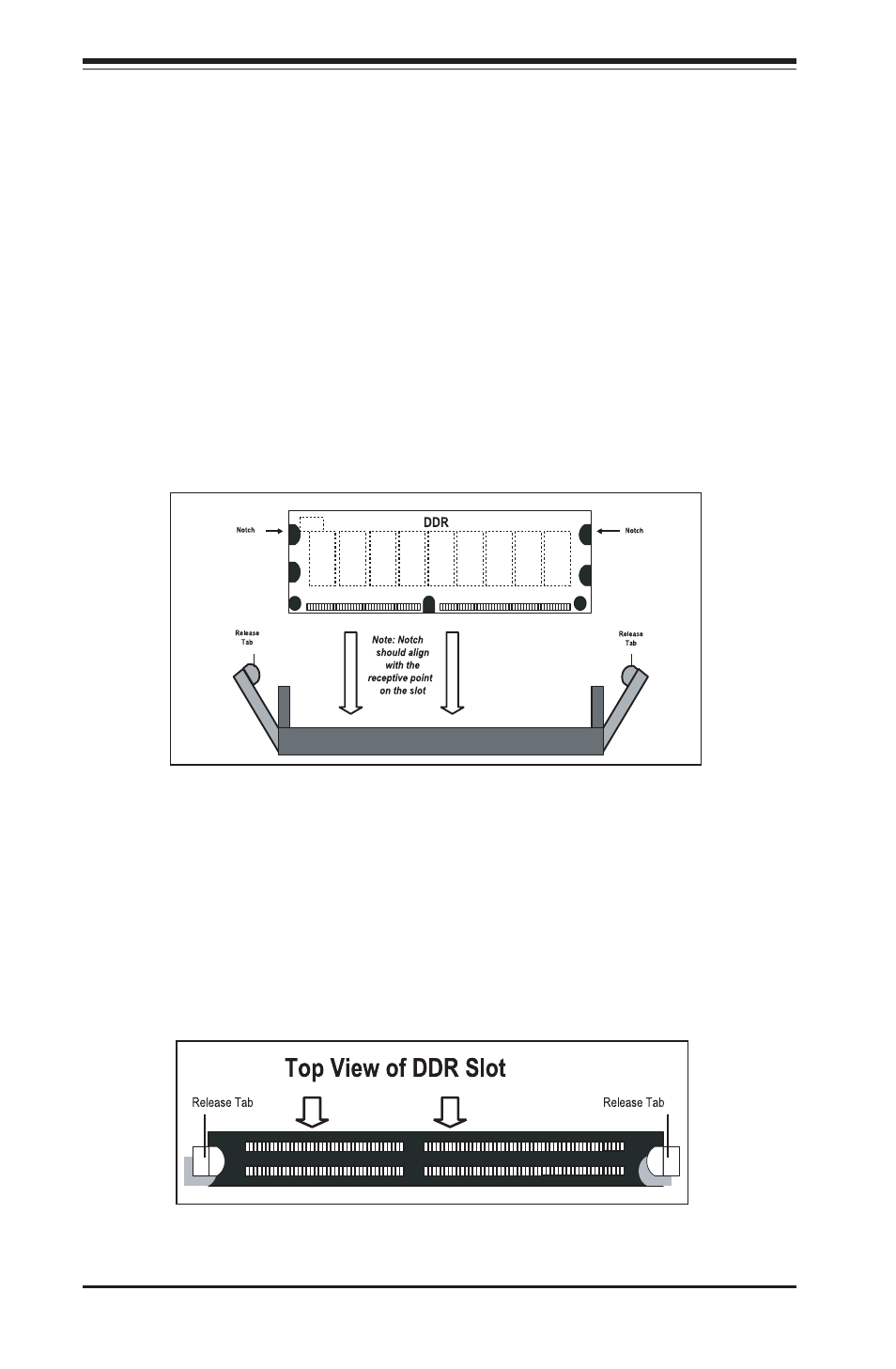

Figure 5-6b. Top View of DIMM Socket
Figure 5-6a. Side View of DIMM Installation into Socket
To Install: Insert module vertically and press down until it snaps
into place. Pay attention to the bottom notch.
To Remove: Use your thumbs to gently push each release tab
outward to free the DIMM from the socket.
Memory Support
The i2DML-8G2/i2DML-iG2 supports up to 16 GB of buffered, reistered ECC
DDR200 (DDR266 memory can be used but will operate at DDR200 speed). This
serverboard was designed to support 2 GB modules in each socket. You should
not mix DIMMs of different sizes and speeds.
See Figures 5-6a and 5-6b for installing and removing memory modules.
