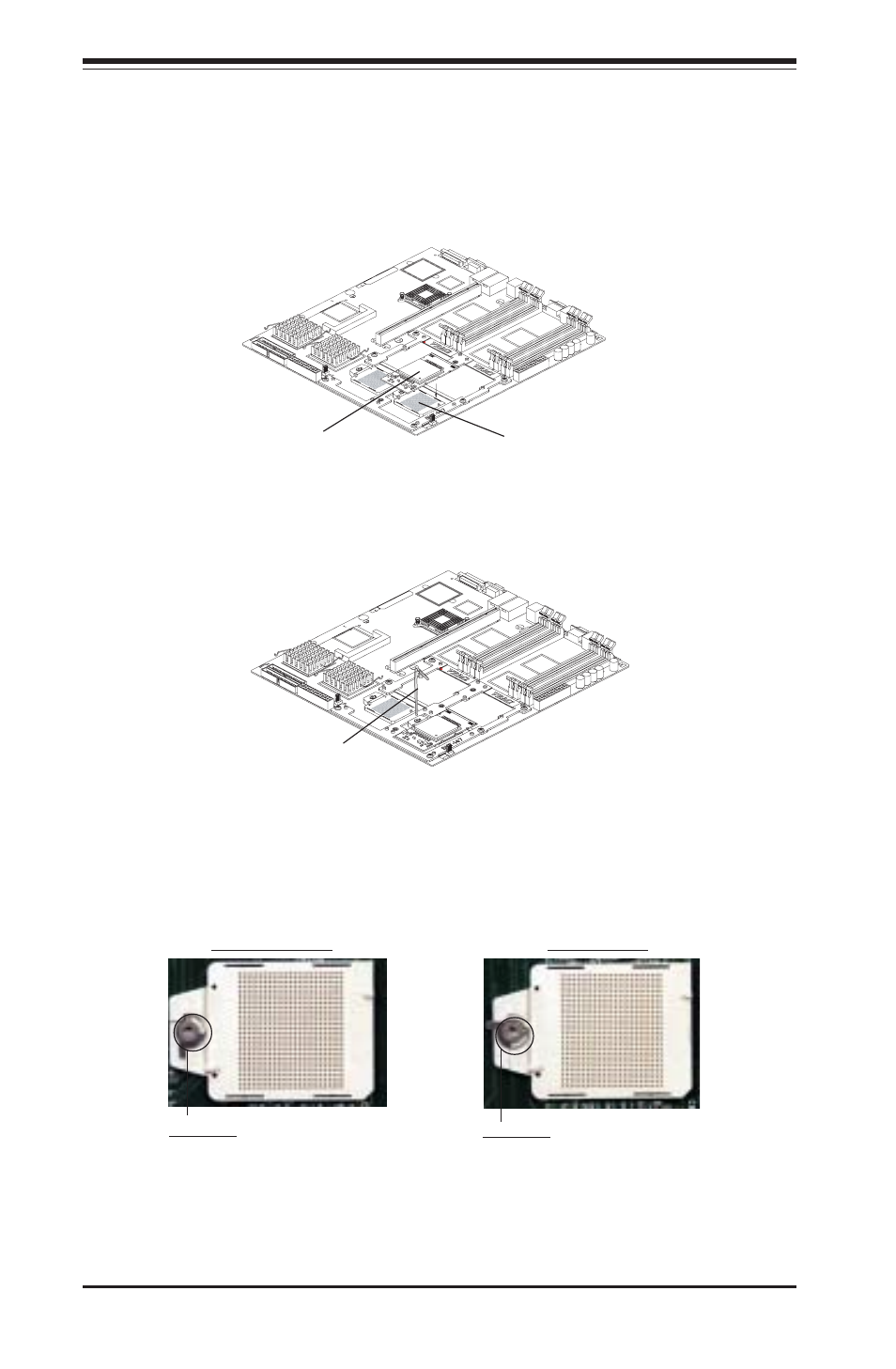

Installing Itanium2 CPUs
1. Insert an Itanium2 CPU into the CPU1 socket. Make sure that CPU Pin 1 is
aligned with the cut angle of the CPU socket, as shown in the picture below.*
Itanium2 CPU
CPU1 Socket
2. Use the M2.5 hex key to secure the Itanium2 CPU as shown in the picture
below.
Securing the CPU with
an M2.5 hex key
* Please refer to the serverboard layout page in this chapter for the locations
of the CPU1 and CPU2 sockets.
4. Repeat steps 1 and 2 to install a second Itanium2 CPU as needed.*
CPU-unlocked CPU-locked
3. Make sure that the CPU is in its properly locked position. To lock it, use the
M2.5 hex key to turn the lock in a clockwise direction. To unlock it, turn the lock
in a counter-clockwise direction.
Pointer Pointer
