8 | CHAPTER 2 – SETTING UP YOUR DOCUMENT CAMERA

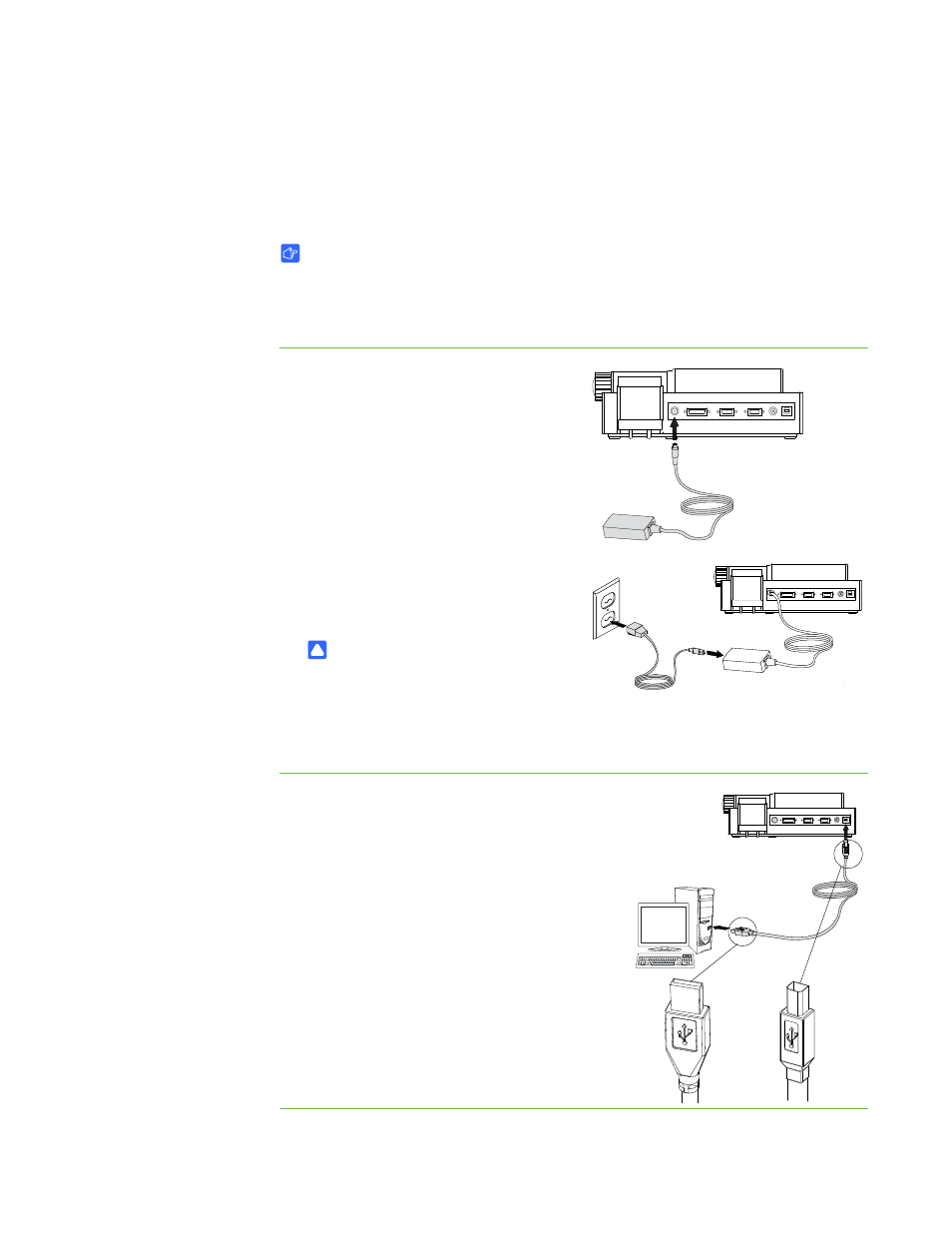

Document camera basic connection
Connect your document camera to a power supply and your computer to use your
document camera with SMART Notebook software.
IMPORTANT
This configuration requires SMART Notebook to use your document camera.
Connect your document camera directly to an external display to use Camera
view or SD Card view.
To connect the
power supply
1. Connect the power supply cable to the
12V DC receptacle on the rear
connection panel.
2. Connect a country-specific power cable
to the power supply, and then connect
the plug to a power outlet.
CAUTION
Ensure you connect the power
cable to the power supply before
connecting the power plug to a
power outlet.
To connect your
document camera to your
computer
Connect the USB-B plug of your USB cable
to your document camera, and then connect
the USB-A plug to your computer.
USB-A USB-B
