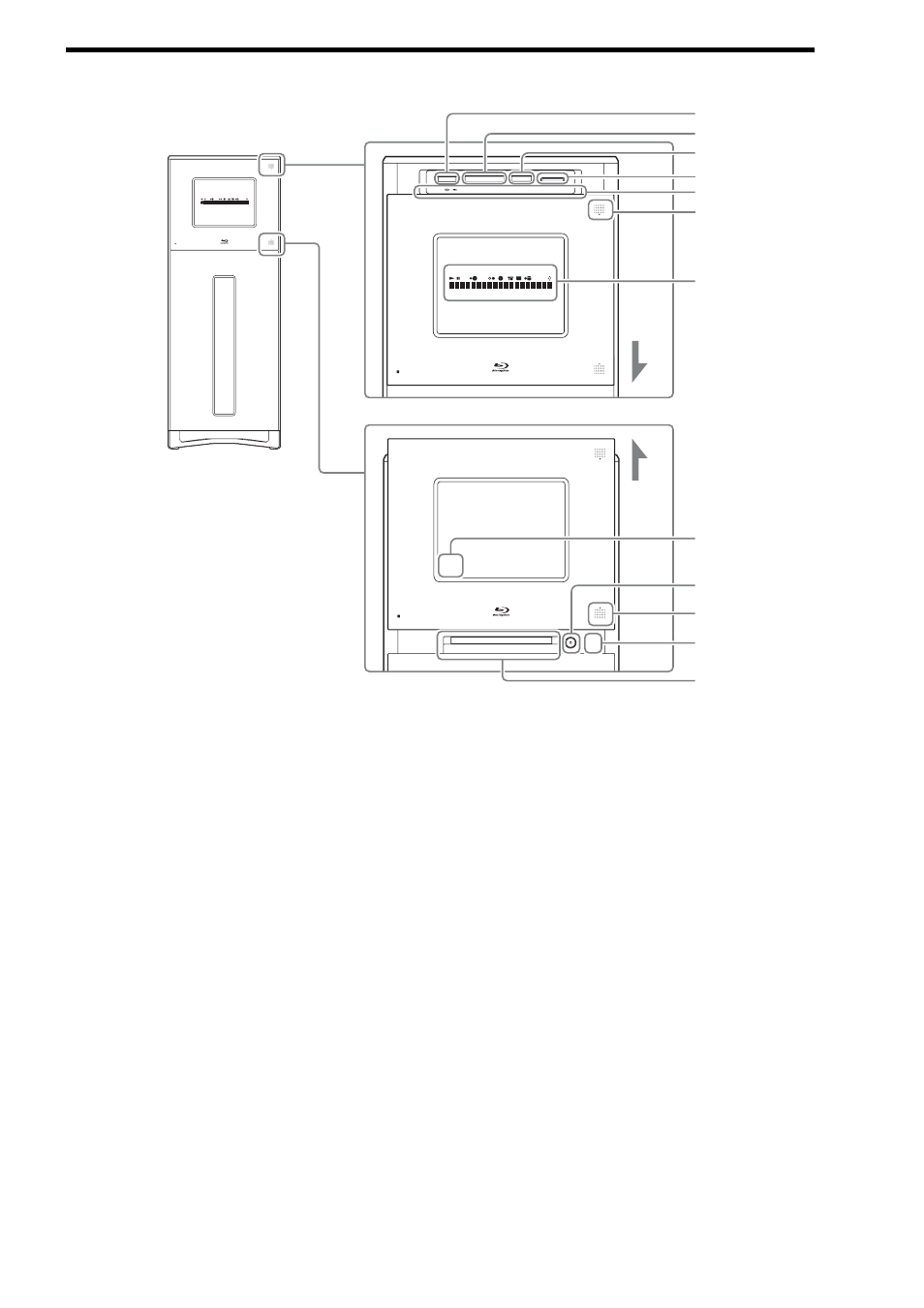

Front panel
A Memory Stick slot (36)
B CF slot (36)
– CompactFlash
®
slot
C SD slot (36)
– SD memory Card slot
D xD-Picture Card slot (36)
– xD-Picture Card™ slot
E Memory Stick/CF/SD/xD-Picture Card LED indicators
– Lights up when the memory cards are inserted, and
keeps flashing when the cards are being accessed.
Do not eject the cards while the indicator is
flashing.
F MEMORY CARD OPEN/CLOSE button (for card slot)
(36)
G Front panel display (14, 116)
H Remote sensor (27)
I Z (Disc tray OPEN/CLOSE) button (32)
J DISC OPEN/CLOSE button (for disc tray) (32)
K Busy LED indicator
– The disc tray does not respond even if you press Z
when this is lit.
L Disc tray (32)
DISC OPEN/CLOSE
MEMORY CARD OPEN/CLOSE
DISC OPEN/CLOSE
MEMORY CARD OPEN/CLOSE
CF xD-Picture Card SD
DISC OPEN/CLOSE
6
4
5
7
qs
9
8
3
2
1
0
qa
,continued
