Connecting an AV Amplifier
If you have an AV amplifier (receiver) and would like to enjoy
high quality sound, use the supplied HDMI cable. If your HDMI
device does not support digital audio signals or has no HDMI
input jack, connect using an optical or coaxial digital cable (not
supplied). If the amplifier has 2ch audio input jacks (L/R),
connect using an audio cable.
If the amplifier has a Dolby Digital decoder, set [Digital Audio
Output] in [Audio Settings] accordingly (page 114).
z Hint
For correct speaker location, see the operating instructions of the
connected components.
Note
When you connect an HDMI OUT jack or a DIGITAL OUT jack and
play a video or music, the beginning may be skipped depending on the
external device.
Connecting with an HDMI cable
Note
Not all HDMI-compatible AV amplifiers (receivers) accept 8ch
Linear PCM signals.
See also the operating instructions supplied with the connected
AV amplifier (receiver).
PUSH/OPEN
AC IN
CONTROL S IN/
IR IN HDMI OUT
COMPONENT VIDEO OUT AUDIO OUT R
R-AUDIO-L VIDEO LINE
IN 1
OUT
S VIDEO
Y PB PR
LAN(10/100)
COAXIAL
DIGITAL OUT PCM/DTS/
DOLBY DIGITAL
L
OPTICAL
HDMI IN
HDMI OUT
HDMI IN
HDMI OUT
Server

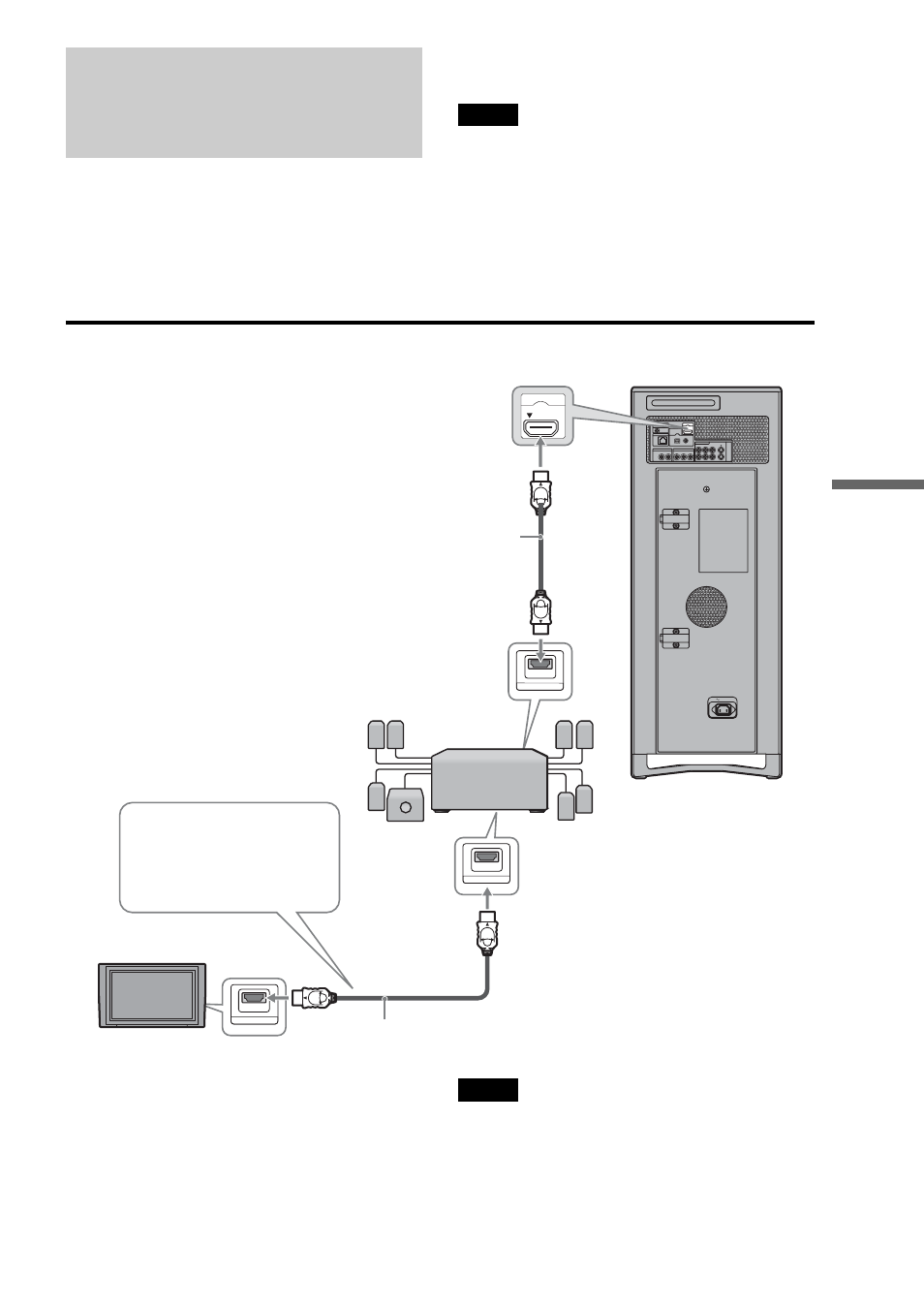

To HDMI OUT
HDMI cable (supplied)
To HDMI input jack
To HDMI output jack AV amplifier with Dolby
Digital or DTS decoder
In this case, connect the amplifier to
the TV using another HDMI cable
(not supplied). If the TV has no HDMI
input jack, connect the TV and the
server using another video cable.
HDMI cable (not supplied)
To HDMI input jack
TV
,continued
