Instructions for the Installer

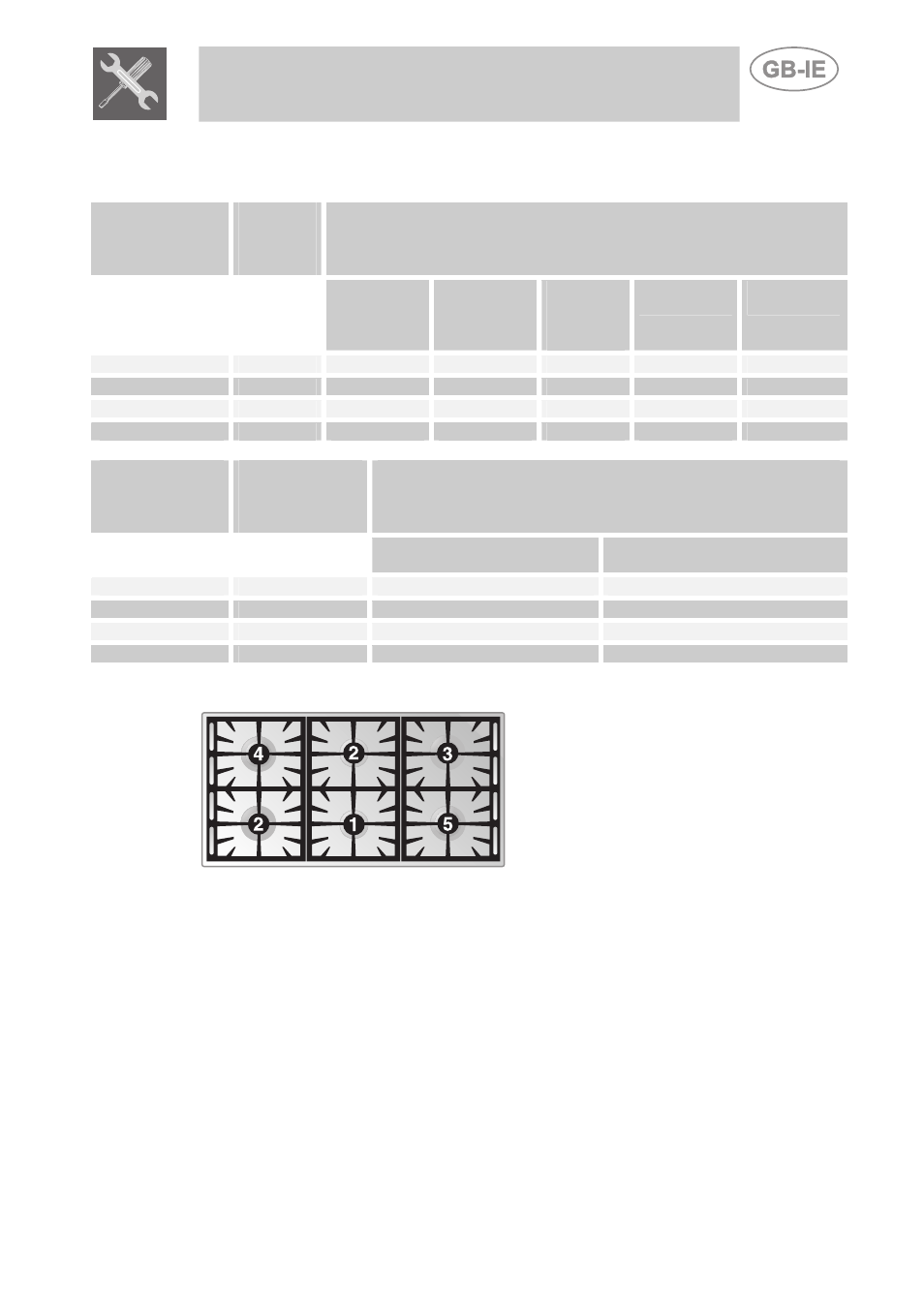

3.2 Burner and Nozzle Data Tables
Burner Nominal
heat
capacity
(kW)
Bottled gas – G30/G31 30/37 mbar
Nozzle
diameter
1/100 mm
By-pass
mm
1/100
Reduced
heat
capacity
(W)
Flow rate
g/h G30
Flow rate
g/h G31
Auxiliary 1.05 50 30 400 76 75
Semi rapid 1.8 65 33 500 131 129
Rapid 3 85 45 800 218 215
Ultra rapid 4.0 100 65 1600 290 286
Burner Nominal
heat
capacity
(kW)
Natural gas - G20 20 mbar
Nozzle diameter
1/100 mm
Reduced heat capacity
(W)
Auxiliary 1.05 72 400
Semi rapid 1.8 97 500
Rapid 3 115 800
Ultra rapid 4.0 135 1600
3.3 Hob burner layout
BURNERS
1
Auxiliary
2 Semi rapid
3 Rapid
4 Ultra rapid
5 Ultra rapid
49
