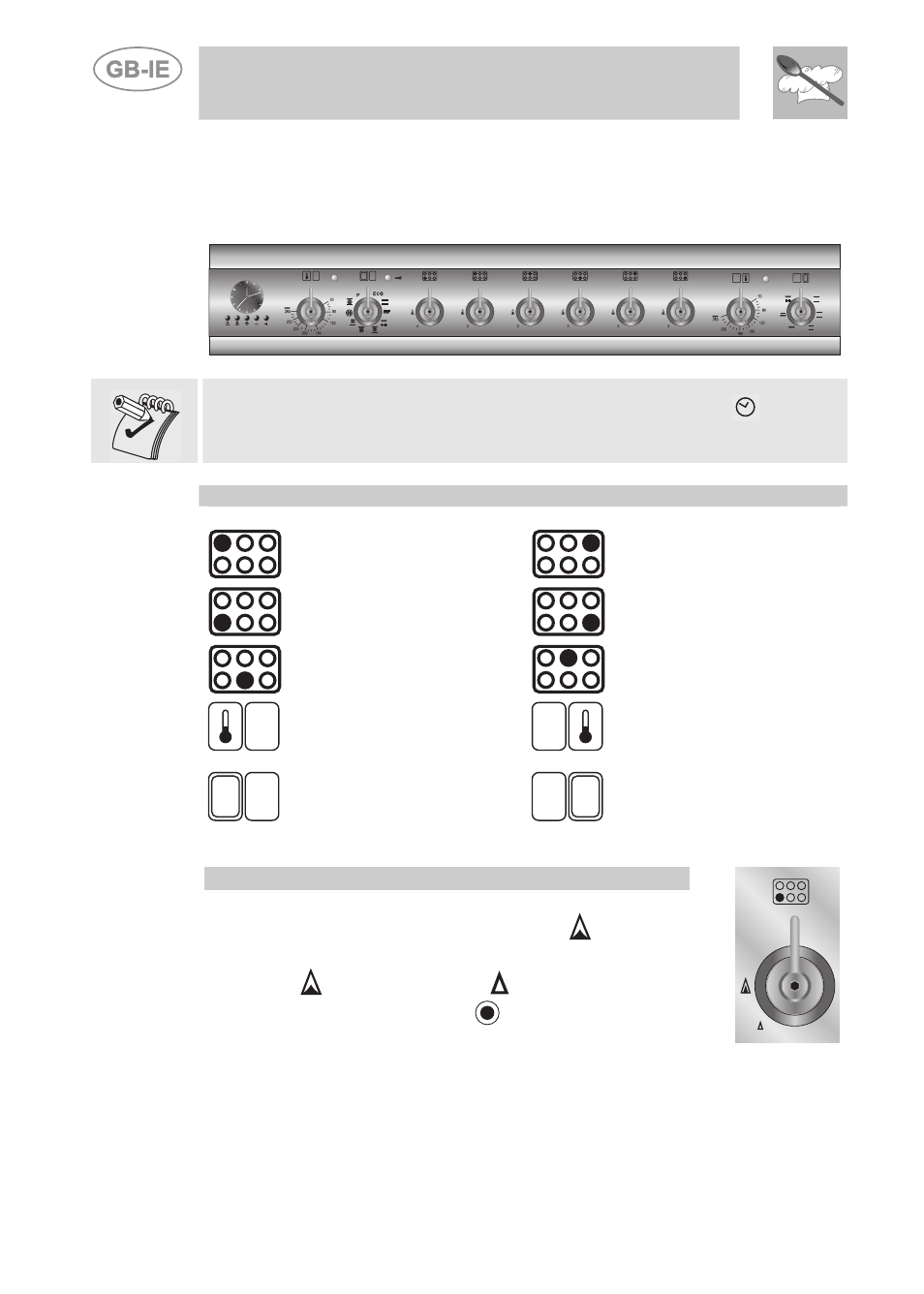

5. DESCRIPTION OF CONTROLS

5.1 The front panel

All the cooker's control and monitoring devices are placed together on the
front panel.

At first use after a power blackout, press the middle knob

for 1 / 2

seconds to enable oven cooking operations.

KEY TO SYMBOLS

LEFT REAR
BURNER

RIGHT REAR
BURNER

LEFT FRONT
BURNER

RIGHT FRONT
BURNER

CENTRAL FRONT
BURNER

CENTRAL REAR
BURNER

MAIN OVEN
THERMOSTAT

AUXILIARY OVEN
THERMOSTAT

MAIN OVEN
FUNCTIONS

AUXILIARY OVEN
FUNCTIONS

HOB BURNER CONTROL KNOB

To light the flame, press the knob and turn it anti-

clockwise to the maximum flame symbol

. To adjust

the flame, turn the knob to the zone between the

maximum

and the minimum

settings. To turn off

the burner, turn the knob to the

position.
