C\zki`zxc:fdgfe\ekj, J Page 45
-43-
N(/(*(/Fg\e
J
M
@:<
READ ELECTRICAL SAFETY
ON PAGE 39!
electrical components

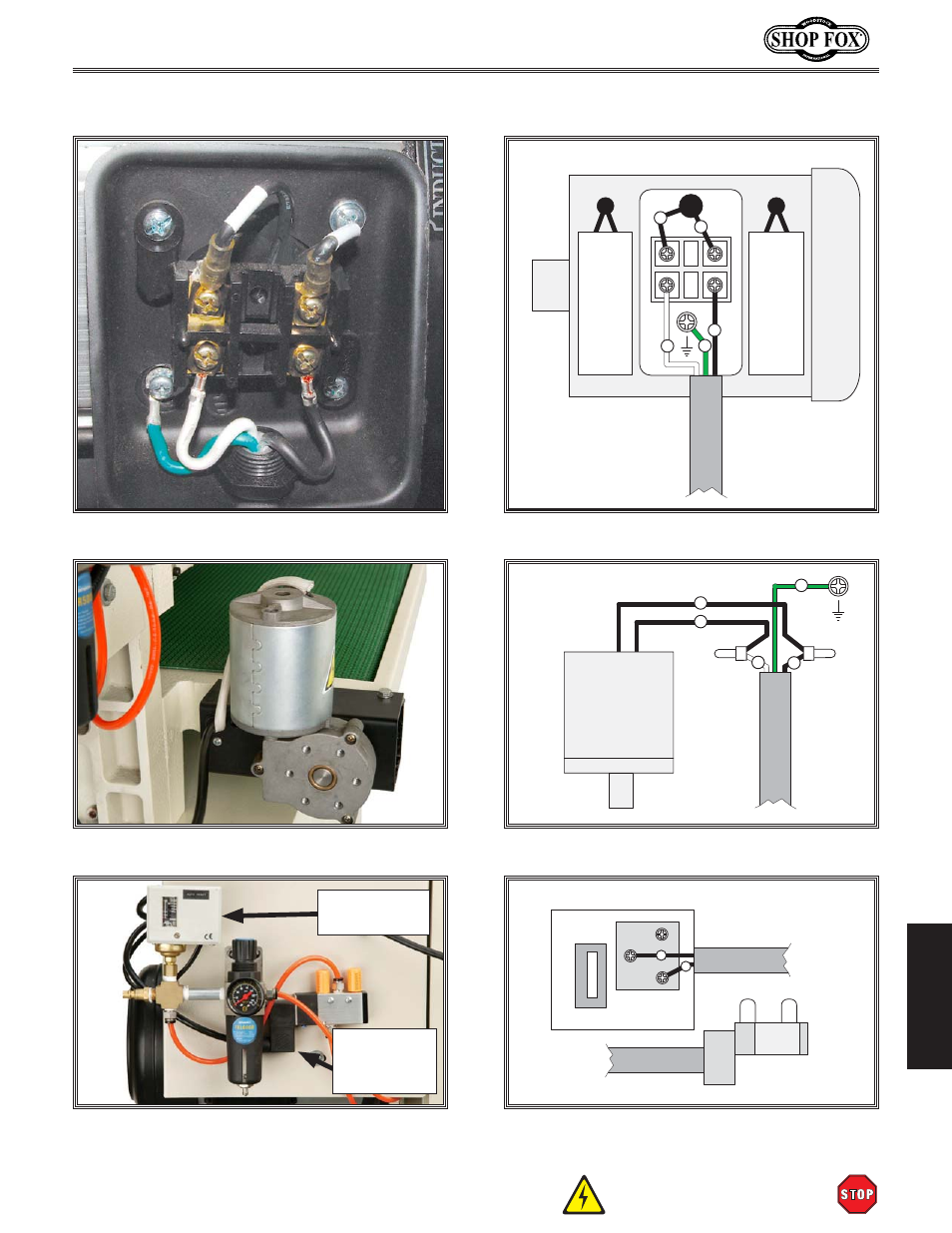

=`^li\+)% Sanding motor wiring.
=`^li\+*% Conveyor motor wiring.
=`^li\++% Air pressure safety switch and brake
solenoid.
Air Pressure
Brake
Solenoid
Air Pressure
Safety Switch
Bk
Wt
Gn
Start Capacitor
400M 125V
R
un Capacitor
50M 250V
Electrical Box
Sanding Motor
Bk
Bk
=`^li\+,% Sanding motor wiring diagram.
Conveyor
Motor
Electrical Box
Bk
Wt
Gn
Bk
Bk
=`^li\+-% Conveyor motor wiring diagram.
=`^li\+.% Air pressure safety switch and brake
solenoid wiring diagrams.
Air Pressure Safety Switch
Air Pressure
Brake Solenoid
Electrical Box
Electrical Box
Bk
Bk
