*% To release the tension on the sanding belt, move
the tension lever up and to the right out of the top
catch, then use moderate force to push it down and
under the bottom catch, as shown in
=`^li\(/.
+% Pull the sanding belt off the upper roller and the
sanding drum.
,% Slide the new sanding belt onto the upper roller and
sanding drum, then position it on the upper roller so
that it is just past the left oscillation disc, as shown
in
=`^li\(0.
Efk\1DfjkjXe[`e^Y\ckj_Xm\Xiifnjgi`ek\[fe
k_\`i`ej`[\jli]XZ\kf`e[`ZXk\k_\[`i\Zk`fef]kiXm$
\c]fik_\Y\ck%DXkZ_k_\j\Xiifnjn`k_k_\jXe[`e^
Y\ck[`i\Zk`feXiifnj_fne`e=`^li\(/%
-% When you have the sanding belt evenly positioned
between the oscillation discs on each end of the
upper roller, move the tension lever to the upper
catch by reversing from
Jk\g*.
Efk\1K_\Df[\cN(/(*lj\jXjgi`e^k\ej`fe\ikf
XlkfdXk`ZXccpXggcpk_\Zfii\Zkk\ej`fekfk_\jXe[$
`e^Y\ckn_\ek_\k\ej`fec\m\i`jj\Zli\[fek_\
kfgZXkZ_%
.% Re-tighten the tension lock, then close and secure
the sanding belt access door before starting the
sander.

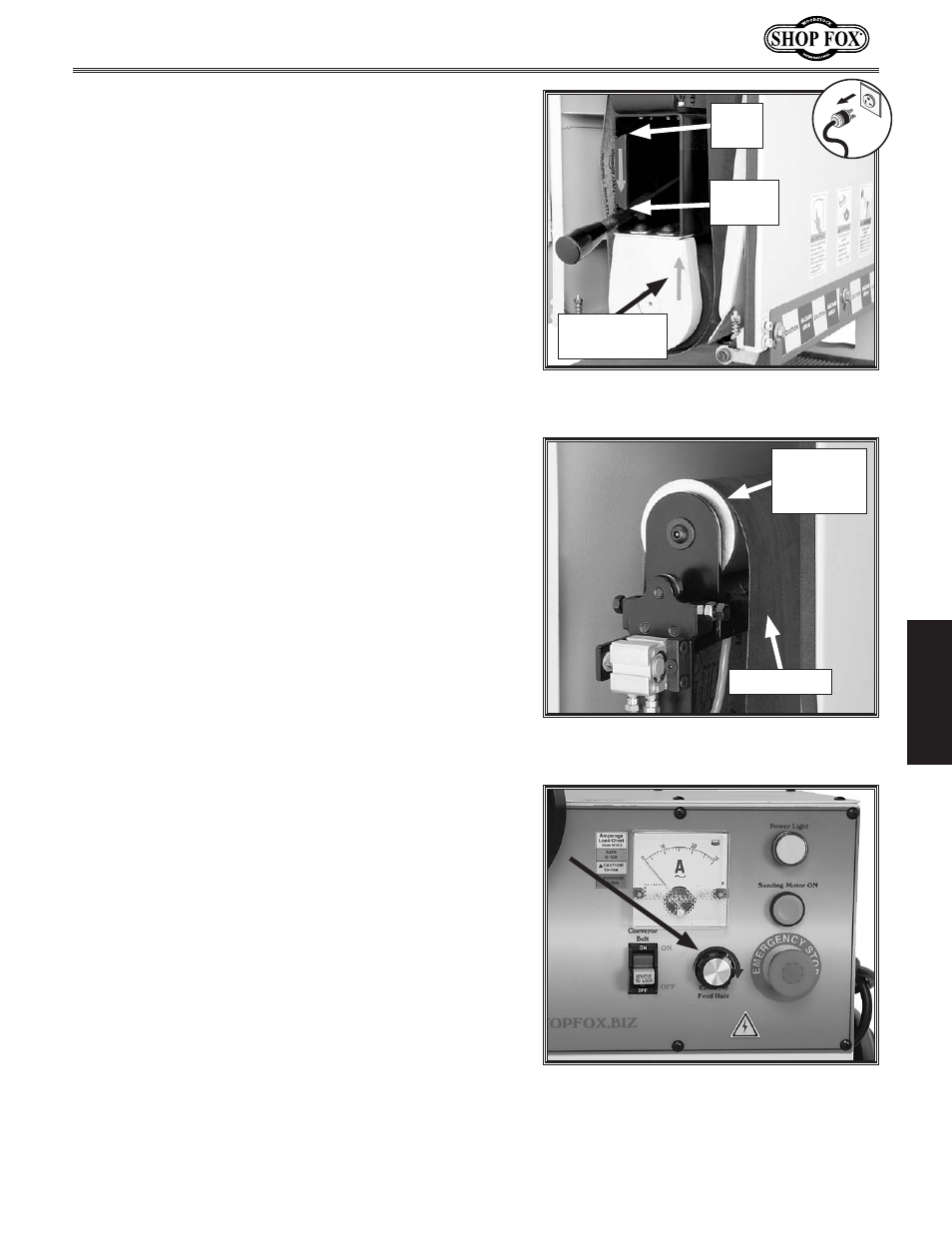

=`^li\(/% Tension lever secured under the
bottom catch.
Sanding Belt
Direction
Top
Catch
Bottom
Catch
=`^li\(0% Proper position of the sanding
belt on the upper roller.
Left
Oscillation
Disc
Sanding Belt
:fem\pfi=\\[IXk\
The conveyor feed rate dial (see =`^li\)') adjusts the
feed rate of the conveyor from 5 to 17 feet per minute
(FPM). The correct speed for your operation depends on
the type of stock you are sanding (e.g., hardwood vs. soft-
wood), the depth of cut, and the stage of finish desired.
As a general rule, a slower feed rate will sand the surface
smoother, but runs the risk of burning the wood. A higher
feed rate will remove material faster, but runs the risk of
overloading the motor (refer to
8dg\iX^\CfX[D\k\ion
GX^\)) for more information on sander work load). Use
trial-and-error to determine the correct feed rate for your
operation.
=`^li\)'% Conveyor feed rate dial.
