GENERAL SET 4
English
97
5

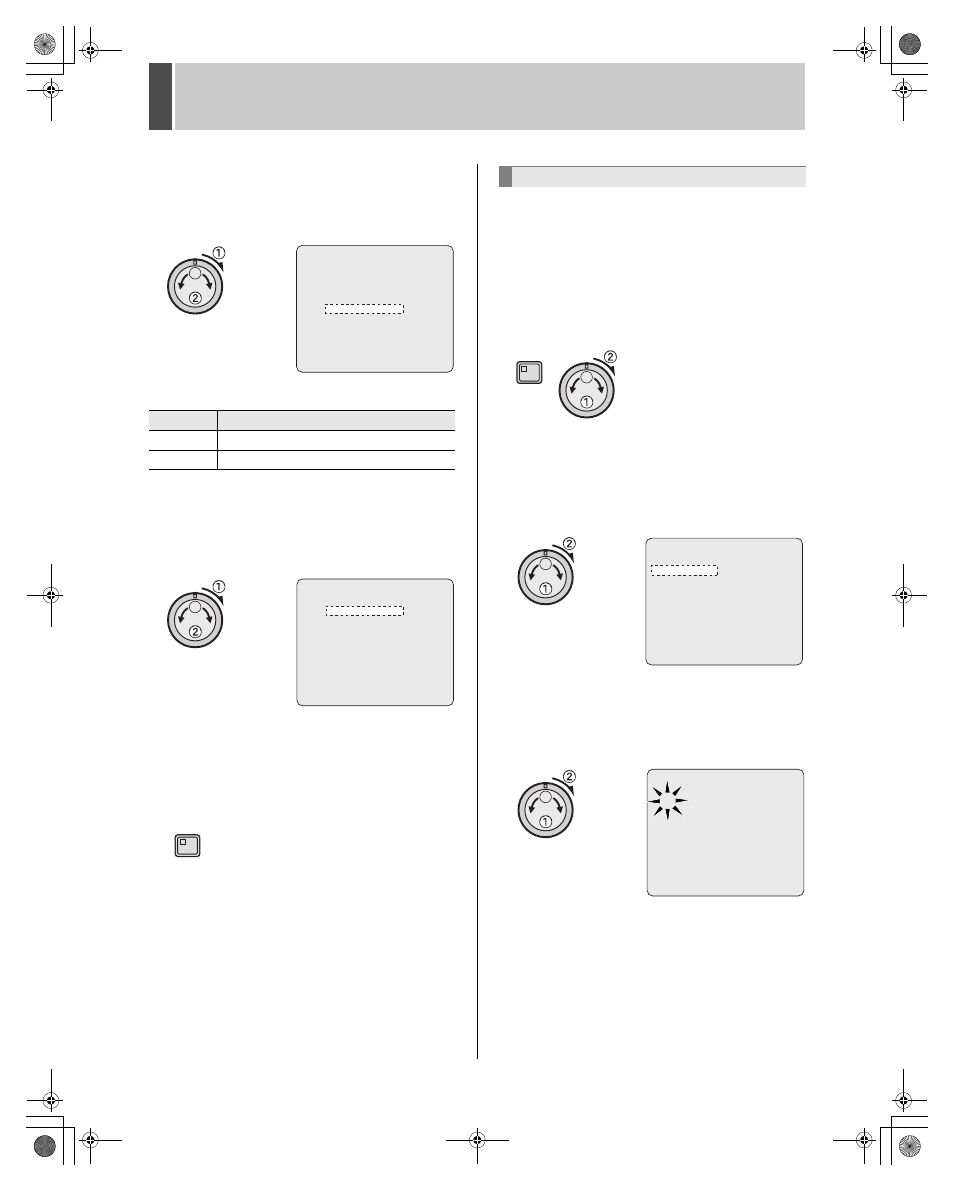

Turn the shuttle dial clockwise and turn
the jog dial to set “ALARM INFO”, and
then turn the shuttle dial clockwise.
The cursor moves to “ADDRESS”.
[Settings] (‹ indicates default setting)
6
Turn the shuttle dial clockwise and set
“ADDRESS” with the jog dial or numeric
keys and then turn the shuttle dial
clockwise.
[Setting conditions]
Addresses between “0” and “127” can be set for this unit.
7
Press the [EXIT/OSD] button.
The setting procedure is ended and the display returns to
the normal screen.
The following procedure explains settings and operations
of remote controllable cameras connected to the VIDEO IN
terminals via coaxial cable.
1
Press the [MENU] button, turn the jog
dial to select “3. GENERAL SET” and
then turn the shuttle dial clockwise.
The screen is displayed.
2
Turn the jog dial to select “7. CAMERA
CONTROL SET” and then turn the
shuttle dial clockwise.
The screen is displayed.
3
Turn the jog dial to select a channel
connected to a camera and then turn
the shuttle dial clockwise.
The “PROTOCOL” field flashes.
Setting Description
‹ ON Alarm information is transmitted.
OFF Alarm information is not transmitted.
DATA SPEED : 19200
STATUS INFO : ON
ALARM INFO : ON
ADDRESS : 000
DATA SPEED : 19200
STATUS INFO : ON
ALARM INFO : ON
ADDRESS : 001
EXIT/OSD
Setting camera control
MENU
CH PROTOCOL ADD. | CH PROTOCOL ADD.
01 OFF --- | 09 OFF ---
02 OFF --- | 10 OFF ---
03 OFF --- | 11 OFF ---
04 OFF --- | 12 OFF ---
05 OFF --- | 13 OFF ---
06 OFF --- | 14 OFF ---
07 OFF --- | 15 OFF ---
08 OFF --- | 16 OFF ---
CH PROTOCOL ADD. | CH PROTOCOL ADD.
01 OFF --- | 09 OFF ---
02 OFF --- | 10 OFF ---
03 OFF --- | 11 OFF ---
04 OFF --- | 12 OFF ---
05 OFF --- | 13 OFF ---
06 OFF --- | 14 OFF ---
07 OFF --- | 15 OFF ---
08 OFF --- | 16 OFF ---
